LED Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Type | Topology | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Dimming | Features | Ratings | Operating Temperature | Efficiency | Termination Style | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

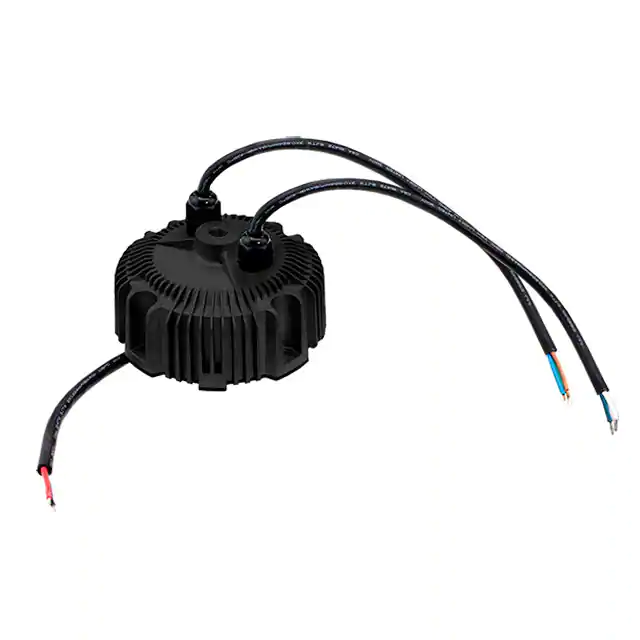

HBG-100-48LED DRIVER CC AC/DC 28.8-48V 2A |
3,286 |
|
Datasheet |
HBG-100 (100W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 2A | 96 W | 3.75 kV | - | OCP, OTP, OVP | IP67 | -40°C ~ 85°C | 91% | Wire Leads | 5.12" Dia x 2.62" H (130.0mm x 66.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-120H-C1400BLED DRVR CC AC/DC 54-108V 1.4A |
4,226 |
|
Datasheet |
HLG-120H-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 54 ~ 108V | 1.4A | 151 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93.5% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, ENEC, PSE, RCM |
|
HLG-120H-C1050ABI/P 90~305VAC O/P +74~148V1050MA |
3,741 |
|
Datasheet |
HLG-120H-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 74 ~ 148V | 1.05A | 155 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 94% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, EAC, ENEC, PSE, RCM, TUV |
|
ELG-200-48BLED DRVR CC/CV AC/DC 48V 4.16A |
2,272 |
|
Datasheet |
ELG-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 4.16A | 200 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-100H-20BLED DRVR CC/CV AC/DC 10-20V 4.8A |
1,684 |
|
Datasheet |
HLG-100H (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 10 ~ 20V | 4.8A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
LU225S48KLIGHTING & ITE 225 WATTS SWITCHI |
4,602 |
|
Datasheet |
LU225 (225W) | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 100VAC | 277VAC | 48V | 3.75A | - | 3 kV | - | OCP, OTP, OVP, SCP | - | -10°C ~ 70°C (With Derating) | 92% | Rectangular, 6 Position | 4.10" L x 2.20" W x 1.50" H (104.1mm x 55.9mm x 38.1mm) | CE |
|
2009-SHOLED DRIVER CC BOOST 8V 500MA |
4,959 |
|
Datasheet |
MicroPuck 2009 | Bulk | Active | Not Verified | Constant Current | Boost | 1 | 0.8V | 3V | 8V | 500mA | 1.5 W | - | - | - | - | -40°C ~ 85°C | 80% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
KAW-6E35IAD/RRECTANGULAR, 230VAC, 6W, 350MA, |
1,897 |
|
Datasheet |
KAW | Bulk | Active | Not Verified | - | AC DC Converter | 1 | 220VAC | 240VAC | 12 ~ 18V | 350mA | 6 W | - | - | OVP, SCP | IP65 | -10°C ~ 50°C | 72% | Wire Leads | 2.48" L x 1.26" W x 0.67" H (63.0mm x 32.0mm x 17.0mm) | CE, ENEC, TUV |
|
DRW-NLT017/1-CC400-42RECTANGULAR, 120VAC, 17W, 400MA, |
3,221 |
|
Datasheet |
CUVEE, DRW-NLT | Bulk | Active | Not Verified | - | AC DC Converter | 1 | 108VAC | 132VAC | 30 ~ 42V | 400mA | 16.8 W | - | - | OCP, SCP | - | -20°C ~ 45°C | 80% | Wire Leads | 3.24" L x 1.26" W x 0.96" H (82.3mm x 32.0mm x 24.5mm) | cURus, FCC |
|
RACV06-24-LPLED DRIVER CV AC/DC 24V 250MA |
1,990 |
|
Datasheet |
LIGHTLINE RACV06-LP (6W) | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 198VAC | 264VAC | 24V | 250mA | 6 W | 3.75 kV | - | OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 79% | Terminal Block | 3.86" L x 1.81" W x 0.43" H (98.0mm x 46.0mm x 11.0mm) | CB, CE, ENEC |
|

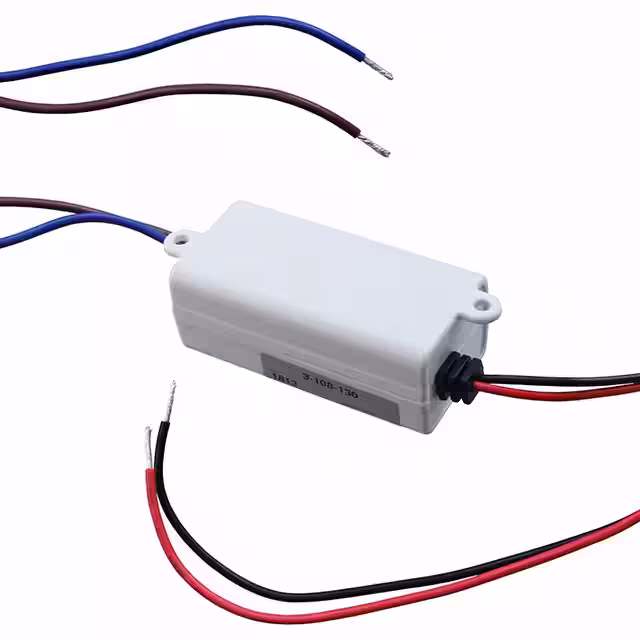

3-108-130POWER SUPPLY IP42 FOR LED- AND I |
2,074 |
|
Datasheet |
- | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 264VAC | 24V | 340mA | 8 W | - | - | OCP, OVP, SCP | IP42 | -30°C ~ 70°C | - | Wire Leads | 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm) | CE |
|
RACT09-700LED SUPPLY CC AC/DC 9W 7-13V |
3,399 |
|
Datasheet |
RACT09 (9W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 7 ~ 13V | 700mA | 9 W | 3.75 kV | Triac | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 76% | Screw Terminal | 4.29" L x 1.57" W x 0.87" H (109.0mm x 40.0mm x 22.0mm) | CE |
|
|
RACT25-1050LED SUPPLY CC AC/DC 25W 12-24V |
3,750 |
|
Datasheet |
RACT25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 12 ~ 24V | 1.05A | 25 W | 3.75 kV | Triac | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 84% | Screw Terminal | 4.72" L x 1.77" W x 1.10" H (120.0mm x 45.0mm x 28.0mm) | CE |
|
PLP-30-12LED DRIVER CC AC/DC 9-12V 2.5A |
1,776 |
|
Datasheet |
PLP-30 (30W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 9 ~ 12V | 2.5A | 30 W | 3.75 kV | - | OCP, OVP, SCP | - | -30°C ~ 70°C | 83% | Rectangular, 2 Position | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) | CB, CCC, CE, cURus, TUV |
|
|
RACT25-500LED SUPPLY CC AC/DC 25W 25-50V |
1,263 |
|
Datasheet |
RACT25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 25 ~ 50V | 500mA | 25 W | 3.75 kV | Triac | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 85% | Screw Terminal | 4.72" L x 1.77" W x 1.10" H (120.0mm x 45.0mm x 28.0mm) | CE |
|
RACD20-700-LPLED DRIVER CC AC/DC 2-31V 700MA |
1,683 |
|
Datasheet |
LIGHTLINE RACD20-LP (20W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 2 ~ 31V | 700mA | 20 W | 3.75 kV | - | OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 85% | Terminal Block | 5.04" L x 1.97" W x 0.51" H (128.0mm x 50.0mm x 13.0mm) | CB, CE, ENEC |
|
|
RACT18-700LED SUPPLY CC AC/DC 18W 13-26V |
2,088 |
|
Datasheet |
RACT18 (18W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 198VAC | 264VAC | 13 ~ 26V | 700mA | 18 W | 3.75 kV | Triac | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 50°C | 85% | Screw Terminal | 4.72" L x 1.77" W x 1.10" H (120.0mm x 45.0mm x 28.0mm) | CE |
|
RCD-24-0.30/W/X1LED DRIVER CC BUCK 2-35V 300MA |
4,389 |
|
Datasheet |
LIGHTLINE RCD-24 | Bag | Active | Not Verified | Constant Current | Buck | 1 | 4.5V | 36V | 2 ~ 35V | 300mA | 11 W | - | Analog | SCP | IP67 | -40°C ~ 85°C | 96% | Wire Leads | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | cULus |
|
|
RCD-24-0.60/W/VREFLED DRIVER CC BUCK 2-35V 600MA |
2,684 |
|
Datasheet |
LIGHTLINE RCD-24 | Bag | Active | Not Verified | Constant Current | Buck | 1 | 4.5V | 36V | 2 ~ 35V | 600mA | 21 W | - | Analog | SCP | IP67 | -40°C ~ 75°C | 96% | Wire Leads | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | cULus |
|
|
DRW-NLT015/1-CC700-22RECTANGULAR, 120VAC, 15W, 700MA, |
3,253 |
|
Datasheet |
CUVEE, DRW-NLT | Bulk | Active | Not Verified | - | AC DC Converter | 1 | 108VAC | 132VAC | 12 ~ 22V | 700mA | 15.4 W | - | - | OCP, SCP | - | -20°C ~ 45°C | 79% | Wire Leads | 2.48" L x 1.26" W x 0.67" H (63.0mm x 32.0mm x 17.0mm) | cURus, FCC |
