LED Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Type | Topology | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Dimming | Features | Ratings | Operating Temperature | Efficiency | Termination Style | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-100-C1050BLED DRVR CC AC/DC 48-95V 1.05A |
3,223 |
|
Datasheet |
ELG-100-C (100W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 48 ~ 95V | 1.05A | 100 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC |
|
LPF-90-30LED DRVR CC/CV AC/DC 18-30V 3A |
4,994 |
|
Datasheet |
LPF-90 (90W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 30V | 3A | 90 W | 3.75 kV | - | OCP, OTP, OVP | IP67 | -40°C ~ 70°C | 91% | Wire Leads | 6.34" L x 2.40" W x 1.42" H (161.0mm x 61.0mm x 36.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|
NPF-120D-24LED DRIVER CC AC/DC 14.4-24V 5A |
1,237 |
|
Datasheet |
NPF-120D (120W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 14.4 ~ 24V | 5A | 120 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 89.5% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
USCI-200140GBLED DRIVER - 200W - CC |
2,520 |
|
Datasheet |
USCI LITE | Box | Active | - | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 75 ~ 190V | 1.4A | 200 W | - | Analog | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 93.5% | Wire Leads | 9.45" L x 2.36" W x 1.50" H (240.0mm x 59.9mm x 38.1mm) | cULus |
|
PLN-100-48LED DRVR CC/CV AC/DC 36-48V 2A |
1,932 |
|
Datasheet |
PLN-100 (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 295VAC | 36 ~ 48V | 2A | 96 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP64 | -30°C ~ 50°C | 88.5% | Wire Leads | 7.87" L x 2.78" W x 1.38" H (200.0mm x 70.5mm x 35.0mm) | CB, CE, PSE, TUV, UR |
|
HLG-120H-30ALED DRVR CC/CV AC/DC 27-33V 4A |
1,469 |
|
Datasheet |
HLG-120H (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 27 ~ 33V | 4A | 120 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV |
|
HLG-150H-24LED DRVR CC/CV AC/DC 12-24V 6.3A |
1,099 |
|
Datasheet |
HLG-150H (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 24V | 6.3A | 151 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
|
HLG-150H-48LED DRVR CC/CV AC/DC 24-48V 3.2A |
2,702 |
|
Datasheet |
HLG-150H (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24 ~ 48V | 3.2A | 154 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 94% | Wire Leads | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|

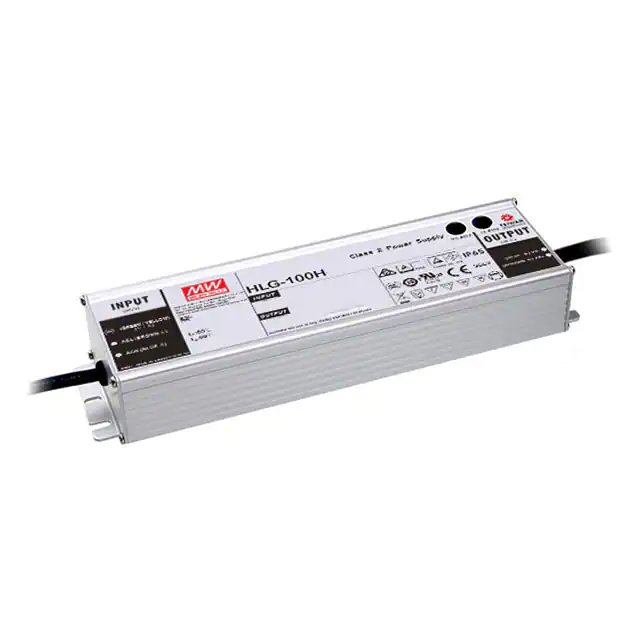

HLG-100H-24ABO/P +24V4A |
4,535 |
|
Datasheet |
HLG-100H (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 4A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, EAC, KC, PSE, RCM, TUV |
|
HLG-240H-36LED DRVR CC/CV AC/DC 18-36V 6.7A |
1,211 |
|
Datasheet |
HLG-240H (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 36V | 6.7A | 241 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92.5% | Wire Leads | 8.67" L x 2.68" W x 1.53" H (220.2mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
HLG-240H-54ABO/P +54V4.45A |
4,952 |
|
Datasheet |
HLG-240H (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 54V | 4.45A | 240 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 93.5% | Wire Leads | 8.67" L x 2.68" W x 1.53" H (220.2mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, KC, PSE, RCM, TUV |
|
PLED96W-030-C3150-DLED DRIVER CC AC/DC 10-30V 3.15A |
4,129 |
|
Datasheet |
PLED96W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 10 ~ 30V | 3.15A | 96 W | - | Analog | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 89% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
HVG-240-54BLED DRVR CC/CV AC/DC 27-54V 4.5A |
4,786 |
|
Datasheet |
HVG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 180VAC | 528VAC | 27 ~ 54V | 4.5A | 243 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 9.06" L x 2.68" W x 1.53" H (230.2mm x 68.0mm x 38.8mm) | cURus |
|
HVGC-320-1050BLED DRVR CC AC/DC 152.4-304.8V |
2,544 |
|
Datasheet |
HVGC-320 (320W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 528VAC | 152.4 ~ 304.8V | 1.05A | 320 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93.5% | Wire Leads | 9.26" L x 3.54" W x 1.72" H (235.2mm x 90.0mm x 43.8mm) | cURus |
|
|
HLG-600H-48LED DRVR CC/CV AC/DC |
1,361 |
|
Datasheet |
HLG-600H (600W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 48V | 12.5A | 600 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 96% | Wire Leads | 9.97" L x 5.67" W x 1.91" H (253.2mm x 144.0mm x 48.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, PSE, RCM, TUV |
|
HVGC-650-H-ABLED DRVR CP AC/DC 120V 5.6A |
2,174 |
|
Datasheet |
HVGC-650 (650W) | Box | Active | Not Verified | Constant Power | AC DC Converter | 1 | 180VAC | 528VAC | 120V | 5.6A | 672 W | 4.2 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 95% | Wire Leads | 9.97" L x 5.67" W x 1.91" H (253.2mm x 144.0mm x 48.5mm) | CB, CE, cURus, EAC, ENEC, FCC |
|
|
2009LED DRIVER CC BOOST 8V 350MA |
4,198 |
|
Datasheet |
MicroPuck 2009 | Bulk | Active | Not Verified | Constant Current | Boost | 1 | 0.8V | 3V | 8V | 350mA | 1.5 W | - | - | - | - | -40°C ~ 85°C | 80% | Wire Leads | 0.45" L x 0.30" W x 0.26" H (11.5mm x 7.6mm x 6.6mm) | - |
|
LDDS-500HWDC-DC CONSTANT CURRENT STEP-DOWN |
1,790 |
|
Datasheet |
LDDS-H | Bulk | Active | Not Verified | Constant Current | Buck | 1 | 12V | 56V | 2 ~ 45V | 500mA | - | - | PWM | Remote On/Off, OVP, SCP | - | -40°C ~ 55°C | 95% | Wire Leads | 1.85" L x 0.47" W x 0.28" H (47.0mm x 11.9mm x 7.1mm) | CE, EAC |
|
|
LDDS-300HWDC-DC CONSTANT CURRENT STEP-DOWN |
1,426 |
|
Datasheet |
LDDS-H | Bulk | Active | Not Verified | Constant Current | Buck | 1 | 12V | 56V | 2 ~ 45V | 300mA | - | - | PWM | Remote On/Off, OVP, SCP | - | -40°C ~ 55°C | 95% | Wire Leads | 1.85" L x 0.47" W x 0.28" H (47.0mm x 11.9mm x 7.1mm) | CE, EAC |
|
3023-D-N-500LED DRIVER CC BUCK 32V 500MA |
4,762 |
|
Datasheet |
BuckPuck™ 3021/3023 | Bulk | Active | Not Verified | Constant Current | Buck | 1 | 5V | 32V | 32V (Max) | 500mA | 16 W | - | - | SCP | - | -40°C ~ 80°C | 95% | Wire Leads | 0.83" L x 0.83" W x 0.43" H (21.0mm x 21.0mm x 11.0mm) | - |
