Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

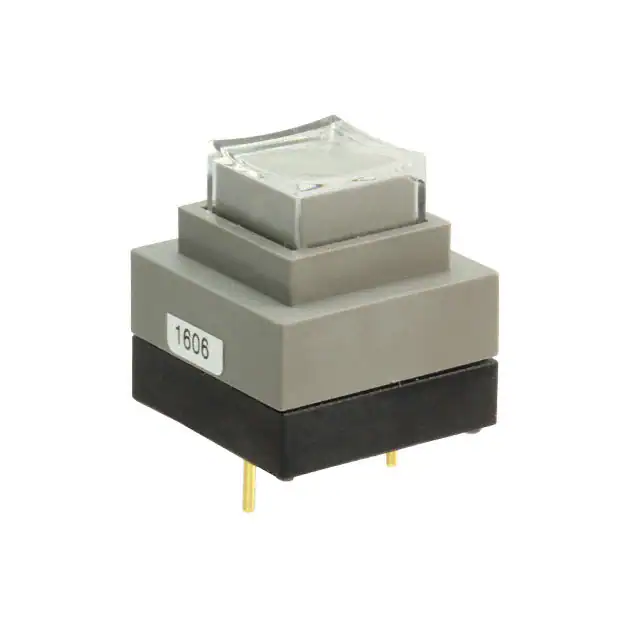

82-101-71SWITCH KEYPAD 1KEY 0.1A 5V Grayhill Inc. |
1,544 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
96AB2-102-RSWITCH KEYPAD 12KEY 0.005A 12V Grayhill Inc. |
138 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
96BB2-056-FSWITCH KEYPAD 16KEY 0.005A 12V Grayhill Inc. |
148 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
88AB2SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
119 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

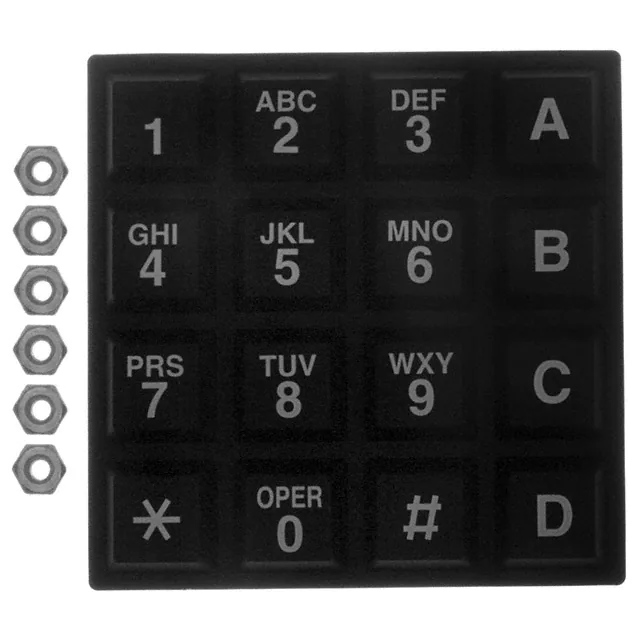

84LS-BB2-016-NSWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
4,610 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
88BA2-072SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
2,651 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | White | Blue | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

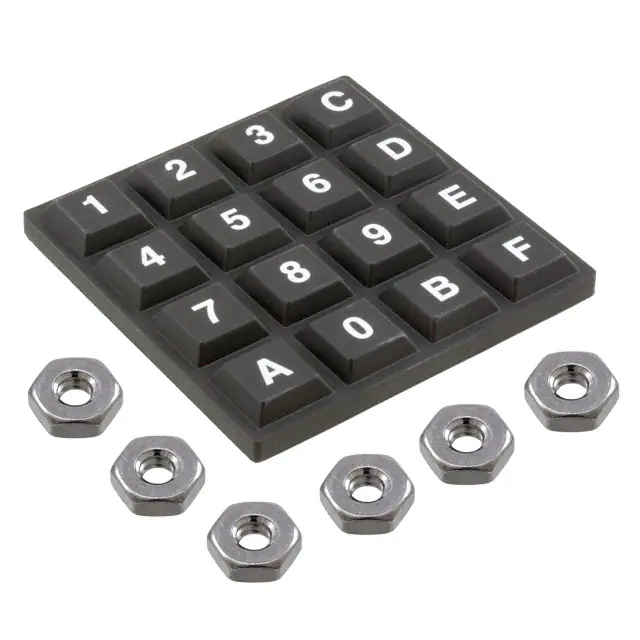

84LS-BB2-014-NSWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
100 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ F | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

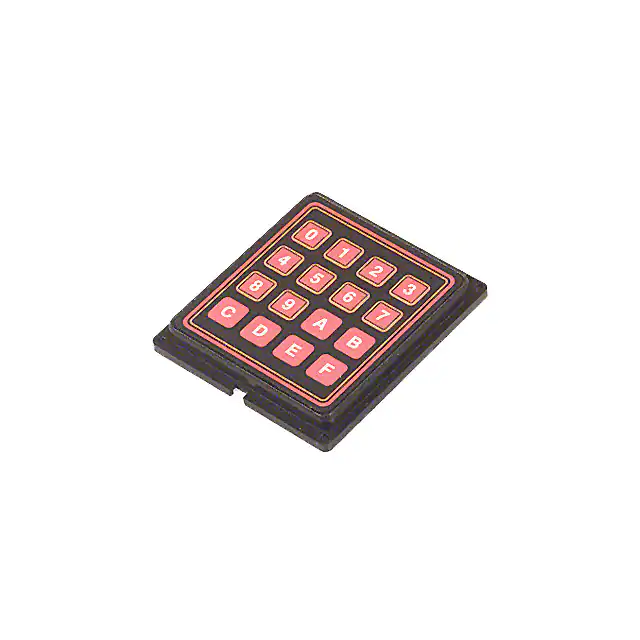

88BB2-082SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
2,142 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | White | Red | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
86BB2-004SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
3,578 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|

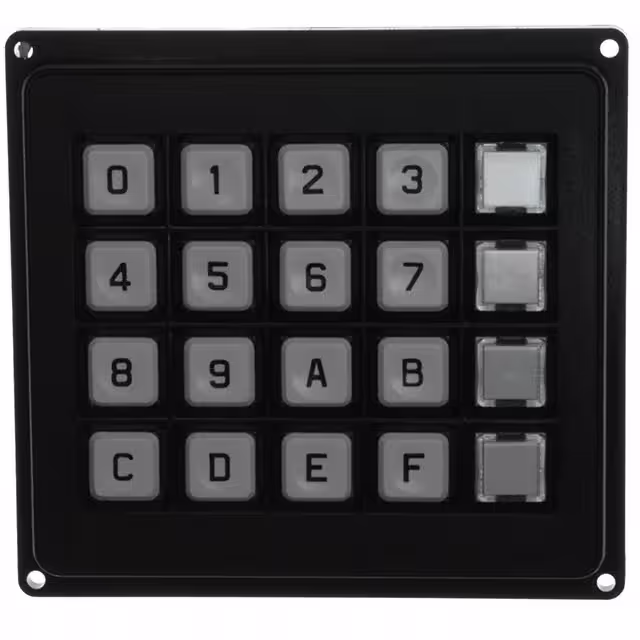

86JB2-203SWITCH KEYPAD 20KEY 0.01A 24V Grayhill Inc. |
3,845 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 20 | 5 x 4 | Non-Illuminated | Partially Interchangeable | Polymer, Transparent Key Cap | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
