Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

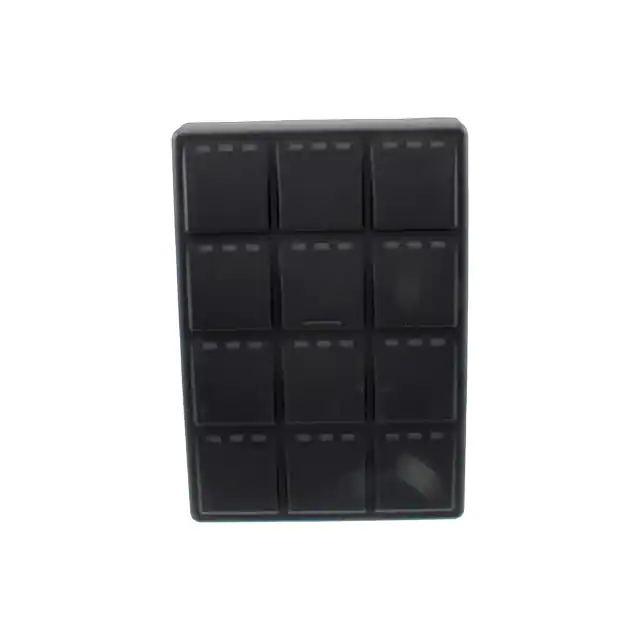

3K012-4RN3AGSWITCH KEYPAD 12KEY ILLUM Grayhill Inc. |
1,429 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 46.99mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
3K208-2RC3AGSWITCH KEYPAD 8KEY ILLUM Grayhill Inc. |
304 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 4 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
3K208-4RC3AGSWITCH KEYPAD 8KEY ILLUM Grayhill Inc. |
1,863 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | 2 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
3K015-3RN3AGSWITCH KEYPAD 15KEY ILLUM Grayhill Inc. |
145 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

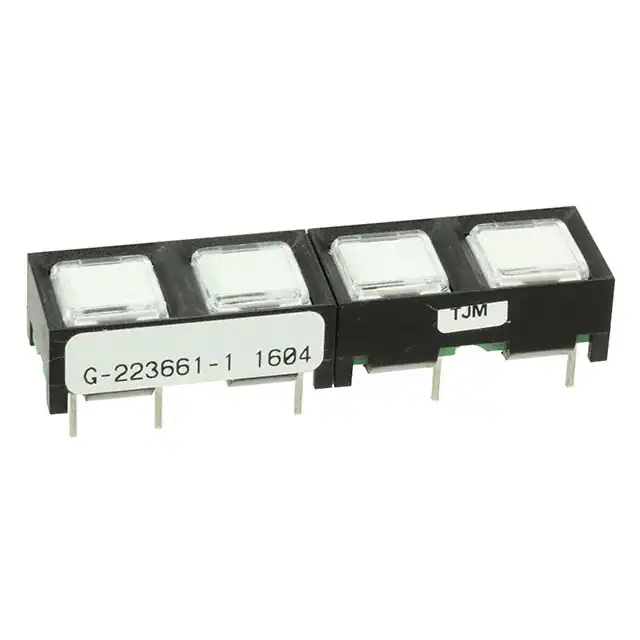

87FC3-201SWITCH KEYPAD 4KEY 0.01A 24V Grayhill Inc. |
488 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 4 | 4 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|

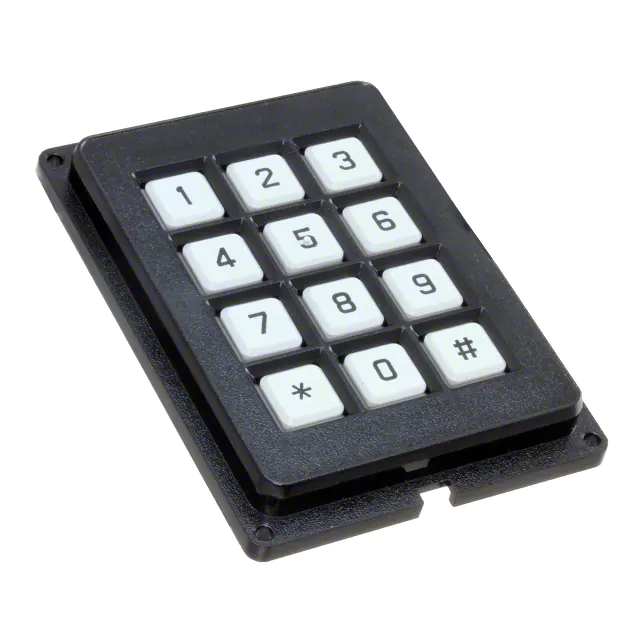

86AB2-102SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc. |
4,261 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|

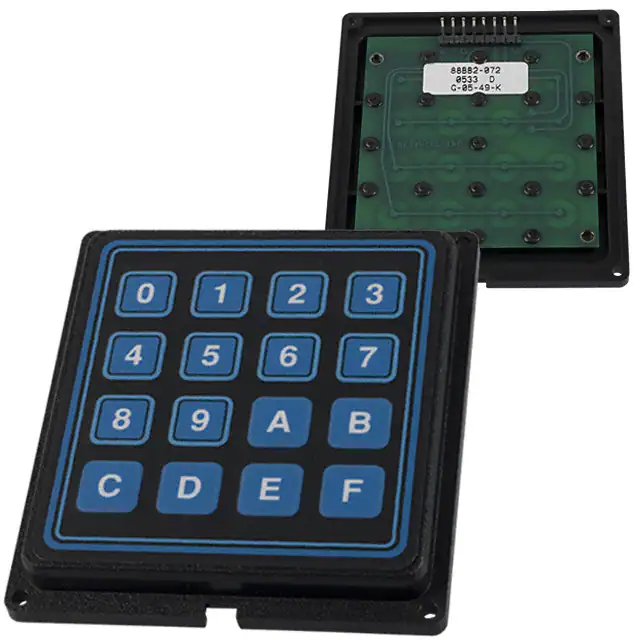

88BB2-072SWITCH KEYPAD 16KEY 0.01A 24V Grayhill Inc. |
262 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | White | Blue | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|

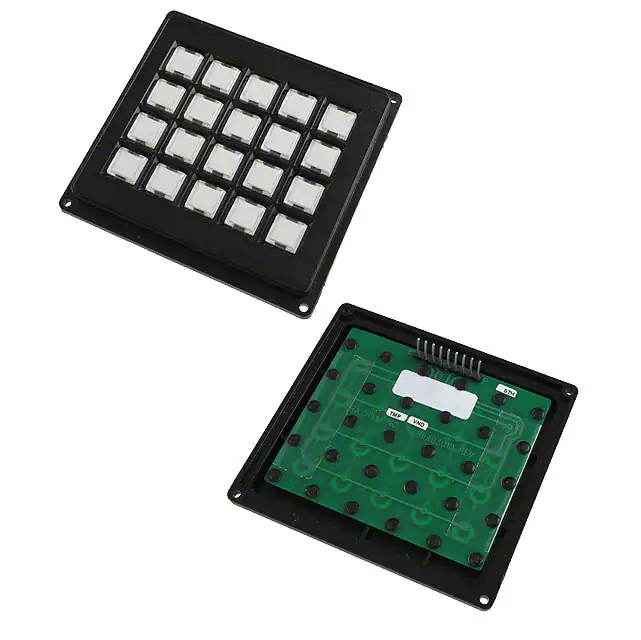

86JB2-201SWITCH KEYPAD 20KEY 0.01A 24V Grayhill Inc. |
232 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 20 | 5 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
|

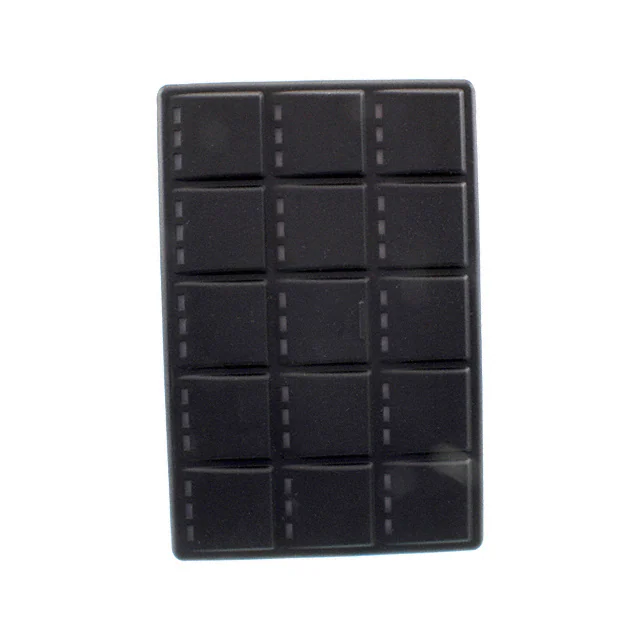

3K015-3RC3AGSWITCH KEYPAD 15KEY ILLUM Grayhill Inc. |
107 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

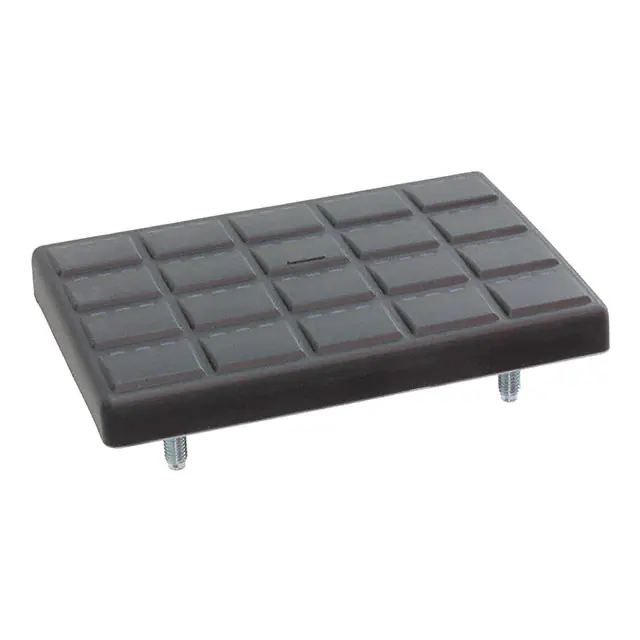

3K020-4RC3AGSWITCH KEYPAD 20KEY ILLUM Grayhill Inc. |
113 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 20 | 5 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
