Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSTR762SAFETY INTERLOCK 240VAC 10AMP T- |
2,070 |
|
Datasheet |
XCST | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 200mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSTR862SAFETY INTERLOCK 240VAC 10AMP T- |
1,917 |
|
Datasheet |
XCST | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 200mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
GKBC10LXSAFETY LIMIT SWITCH-HEAVY DUTY |
2,377 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | 4PST-NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBC14LXSAFETY LIMIT SWITCH-HEAVY DUTY |
1,134 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | 4PST-2NO/2NC (BBM) | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKME09MINIATURE SAFETY KEY INTERLOCK S |
1,539 |
|
- |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Connector (M12) | - | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | - |
|
|
6070793INTERLOCK SWITCH SAFETY RFID |
3,295 |
|
Datasheet |
TR4 | Bulk | Active | RFID | - | 200mA (DC) | - | 24VDC | - | Non-Contact | Cable Leads | - | 25mm | 35mm | - | -25°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
T2011-021QDINTERLOCK NON-LOCKING DPST |
2,859 |
|
Datasheet |
T2011 | Bulk | Obsolete | Non-Locking | DPST-NC + SPST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
641.5341.265INTERLOCK MAGNETIC SPDT |
3,412 |
|
- |
- | Bulk | Active | Magnetic | SPDT | 350mA (AC), 500mA (DC) | 250VAC/DC | - | - | Non-Contact | Cable Leads | - | 10mm | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
3SE51141RV101AF3INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
3,480 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | DPST-NO/NC | 3A (DC) | 24VDC | - | - | Panel Disconnect | Connector (M12) | - | - | - | M12 | -25°C ~ 60°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UKCA, UL |
|

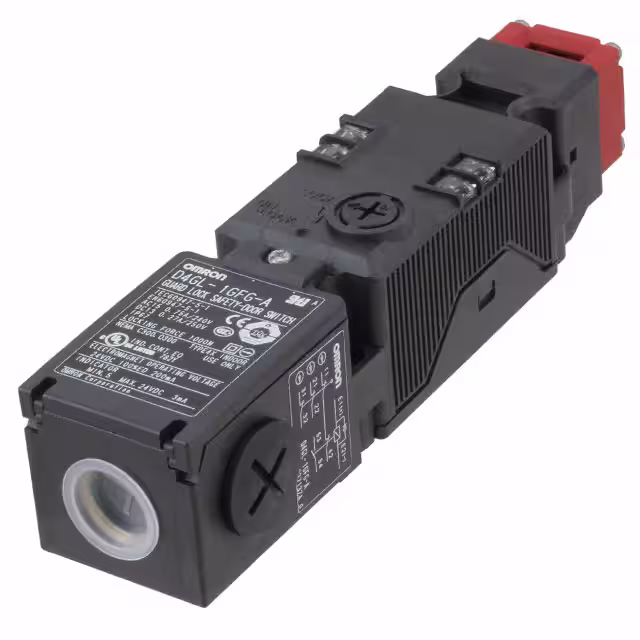

D4GL-1GFG-AINTERLOCK SOLENOID LOCKING 3PST |
2,165 |
|
Datasheet |
D4GL | Bulk | Obsolete | Solenoid Locking | 3PST-NC + DPST-NO/NC | 750mA (AC) | 240VAC | 24VDC | 102kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
|
HS1E-44R-GINTERLOCK SWITCH SAFETY SPR LOCK |
3,387 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1E-244R-RINTERLOCK SWITCH SAFETY SPR LOCK |
1,439 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1E-344R-RINTERLOCK SWITCH SAFETY SPR LOCK |
4,034 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MA-15DP21C1CINTERLOCK MAGNETIC 3PST |
2,853 |
|
- |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 300mA (DC) | 30VDC | - | - | Non-Contact | Connector (M12) | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

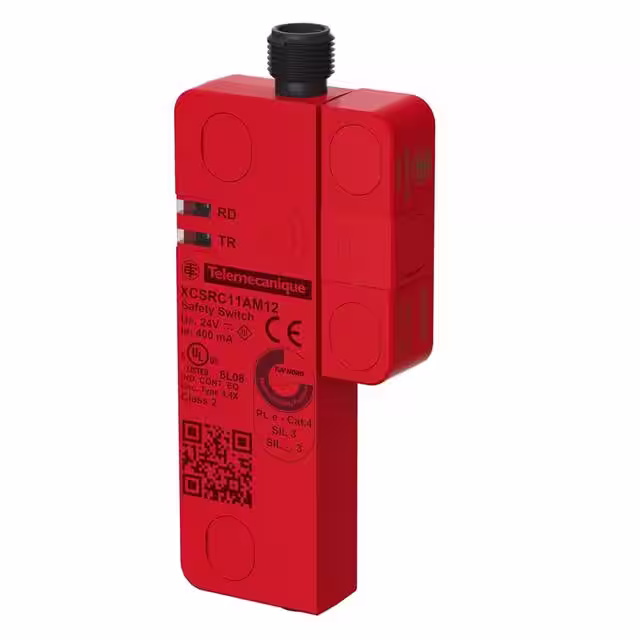

XCSRC11AM12INTERLOCK SWITCH RFID |
1,165 |
|
Datasheet |
XCSRC | Box | Active | RFID | - | 60mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|

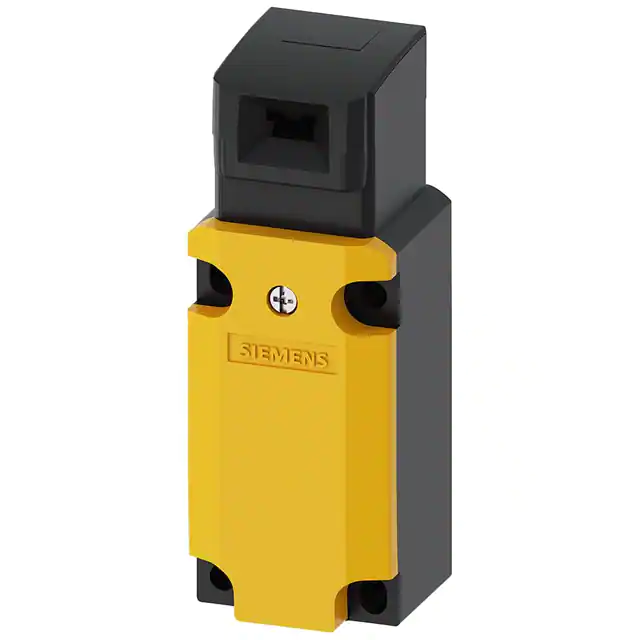

3SE51120QV101AA7INTERLOCK NON-LOCKING 3PST |
4,267 |
|
Datasheet |
SIRIUS | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UL |
|
|
HS5L-VC7Y4SM-GINTERLOCK SOLENOID LOCKING DPST |
4,841 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VF7Y4SM-GINTERLOCK SOLENOID LOCKING 3PST |
2,405 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VA7Y4SM-GINTERLOCK SOLENOID LOCKING DPST |
4,501 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
GKBC1N7SAFETY LIMIT SWITCH-HEAVY DUTY |
2,291 |
|
Datasheet |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
