Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
611.6409.066INTERLOCK NON-LOCKING DPST |
2,715 |
|
- |
SKT | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -30°C ~ 80°C | IP65 - Dust Tight, Water Resistant | CCC, cCSAus, cULus, TUV |
|
|
1102695INTERLOCK SWITCH SAFETY RFID |
2,790 |
|
Datasheet |
STR1 | Bulk | Active | RFID | - | 100mA (DC) | - | 24VDC | - | Non-Contact | Cable with Connector (M12) | Status Indicator | 14mm | 28mm | - | -30°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus, TUV |
|
|
3SE52420RV401AA1SAFETY POS. SWITCH W. SEPARATE 3 |
4,805 |
|
Datasheet |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 125VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UKCA, UL |
|
|
3SE51120LU22INTERLOCK HINGE 3PST |
2,657 |
|
Datasheet |
SIRIUS | Box | Active | Hinge | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 125VAC, 24VDC | - | - | Shaft | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UL |
|
|
D4GS-N3T-3INTERLOCK NON-LOCKING 3PST |
1,868 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4GS-N4T-3INTERLOCK NON-LOCKING 3PST |
4,370 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
SMS03NCINTERLOCK MAGNETIC 3PST |
3,248 |
|
- |
SMS | Box | Obsolete | Magnetic | 3PST-2NO/1NC | 250mA (AC) | - | 100VAC | - | Non-Contact | Wire Leads | - | 20mm | 22mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
641.4212.404INTERLOCK MAGNETIC SPST |
2,130 |
|
- |
MA-12 | Bulk | Active | Magnetic | SPST-NO | 3A (DC) | 250VDC | - | - | Non-Contact | Cable Leads | - | 22mm | - | - | -5°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
1086627INTERLOCK SWITCH SAFETY RFID |
3,905 |
|
Datasheet |
STR1 | Bulk | Active | RFID | - | 100mA (DC) | - | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 14mm | 28mm | - | -30°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus, TUV |
|
|
1096777INTERLOCK SWITCH SAFETY RFID |
4,136 |
|
Datasheet |
STR1 | Bulk | Active | RFID | - | 100mA (DC) | - | 24VDC | - | Non-Contact | Cable with Connector (M12) | Status Indicator | 14mm | 28mm | - | -30°C ~ 70°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus, TUV |
|
|
3SE66052BAMAGNETIC SWITCHES,SWITCH BLOCK 1 |
3,965 |
|
Datasheet |
SIRIUS 3SE66 | Box | Active | Magnetic | DPST-NO/NC | 400mA (AC/DC) | 100VAC/DC | - | - | Non-Contact | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, EAC, RCM, UKCA, UL |
|
|
GKSA46LA2INTERLOCK SOLENOID RELEASE 4PST |
2,419 |
|
Datasheet |
GKS | Bulk | Obsolete | Solenoid Release | 4PST-3NC/1NO | 3A (AC), 550mA (DC) | 120VAC, 125VDC | 24VAC/DC | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 50°C | IP67 - Dust Tight, Waterproof | - |
|

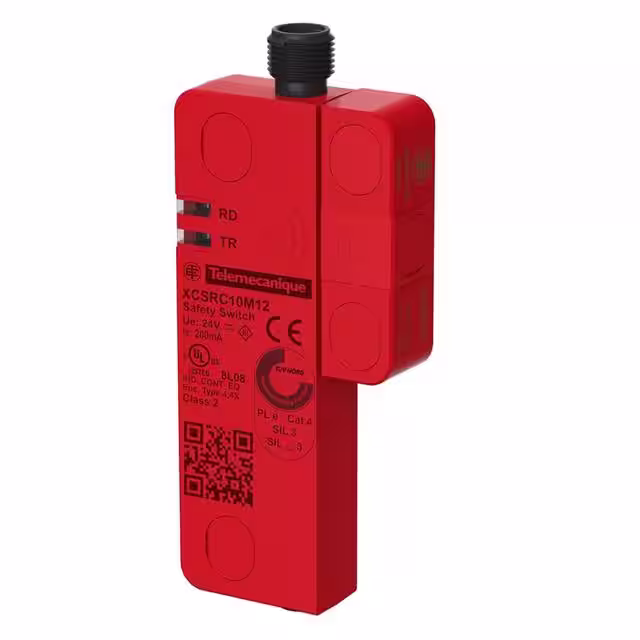

XCSRC10M12INTERLOCK SWITCH RFID |
3,201 |
|
Datasheet |
XCSRC | Box | Active | RFID | - | 60mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|
|
XCSRC30M12INTERLOCK RFID DPST |
3,749 |
|
Datasheet |
XCSRC | Box | Active | RFID | DPST-NO | 60mA (DC) | 30VDC | - | - | Non-Contact | Connector (M12) | - | 10mm | 35mm | - | -25°C ~ 70°C | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CSA, E2, EAC, Ecolab, FCC, IC, RCM, TUV |
|
|
GKBA1L6SAFETY LIMIT SWITCH-HEAVY DUTY |
4,143 |
|
- |
GK | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
XCSDMR59010INTERLOCK MAGNETIC DPST |
4,466 |
|
Datasheet |
XCSDMR | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | - | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
HS5L-XF7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
4,902 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-XG7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
2,111 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-XD7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
2,851 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-XH7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
2,923 |
|
- |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
