Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | R @ 25°C | Tolerance | Current - Steady State Max | R @ Current | Diameter | Lead Spacing | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG110ICL 2 OHM 15% 18A 22.86MM |
176 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 2 Ohms | ±15% | 18 A | 30 mOhms | 0.900" (22.86mm) | 0.310" (7.87mm) | - | - | CSA, UR |
|
SL32 0R536ICL 500 MOHM 20% 36A 31MM |
1,125 |
|
Datasheet |
BigAMP | Bulk | Active | 500 mOhms | ±20% | 36 A | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA |
|
MS22 12104ICL 120 OHM 25% 4A 23MM |
30,450 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 120 Ohms | ±25% | 4 A | 750 mOhms | 0.906" (23.00mm) | 0.307" (7.80mm) | - | - | UL |
|
|
MS22 22103ICL 220 OHM 25% 3.5A 23MM |
7,079 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 220 Ohms | ±25% | 3.5 A | 1.4 Ohms | 0.906" (23.00mm) | 0.307" (7.80mm) | - | - | UL |
|

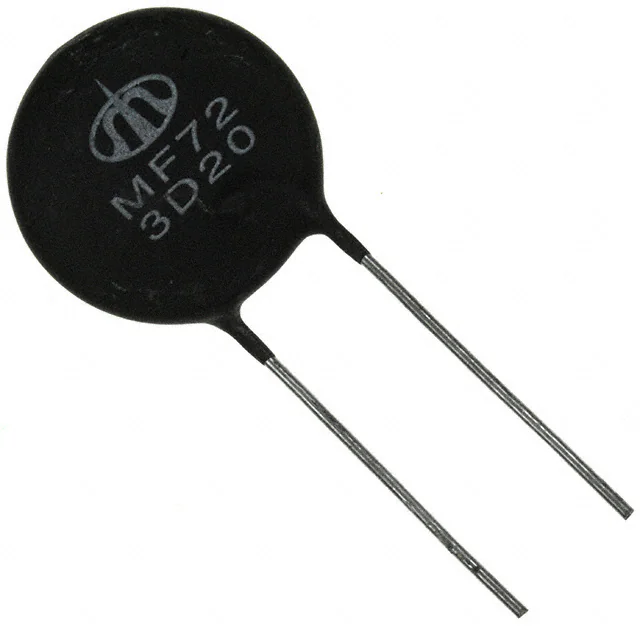

MF72-003D20ICL 3 OHM 20% 8A 22.5MM |
926 |
|
Datasheet |
MF72 | Bulk | Active | 3 Ohms | ±20% | 8 A | 55 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | - | - | - |
|

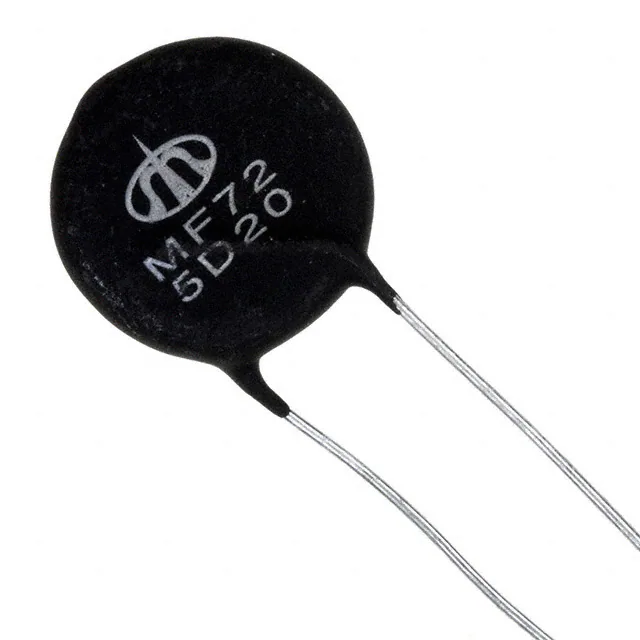

MF72-005D20ICL 5 OHM 20% 7A 22.5MM |
168 |
|
Datasheet |
MF72 | Bulk | Active | 5 Ohms | ±20% | 7 A | 87 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | - | - | - |
|

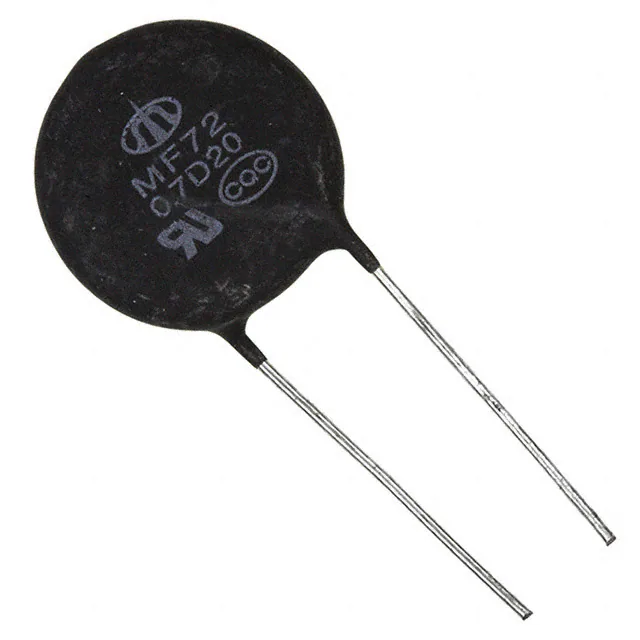

MF72-000.7D20ICL 700 MOHM 20% 11A 22.5MM |
139 |
|
Datasheet |
MF72 | Bulk | Active | 700 mOhms | ±20% | 11 A | 18 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | - | - | - |
|
PTCEL17R600MBEICL 60 OHM 30% 17MM |
811 |
|
Datasheet |
PTCEL | Tray | Active | 60 Ohms | ±30% | - | - | 0.670" (17.00mm) | 0.197" (5.00mm) | Automotive | AEC-Q200 | cURus |
|

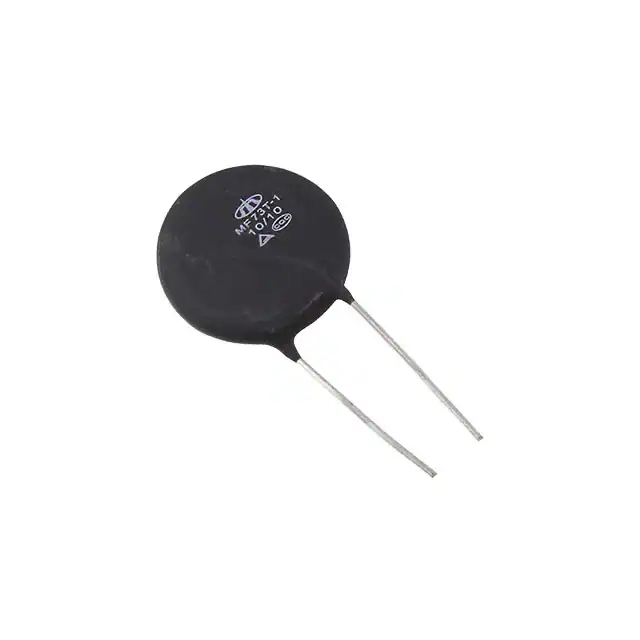

MF73T-1 10/10ICL 10 OHM 20% 10A 25MM |
228 |
|
Datasheet |
MF73T-1 | Bulk | Active | 10 Ohms | ±20% | 10 A | 84 mOhms | 0.984" (25.00mm) | 0.394" (10.00mm) | - | - | - |
|
PTCEL67R151NTEICL 150 OHM 30% 16.51MM |
494 |
|
Datasheet |
PTCEL | Tape & Reel (TR) | Active | 150 Ohms | ±30% | - | - | 0.650" (16.51mm) | 0.295" (7.50mm) | Automotive | AEC-Q200 | cURus |
|
PTCEL17R251SBEICL 250 OHM 30% 17MM |
444 |
|
Datasheet |
PTCEL | Tray | Active | 250 Ohms | ±30% | - | - | 0.670" (17.00mm) | 0.197" (5.00mm) | Automotive | AEC-Q200 | cURus |
|
|
PTCEL17R102UBE404ICL 1 KOHM 30% 17MM |
1,546 |
|
Datasheet |
PTCEL | Tray | Active | 1 kOhms | ±30% | - | - | 0.670" (17.00mm) | 0.394" (10.00mm) | Automotive | AEC-Q200 | cURus |
|
|
MS22 12103ICL 120 OHM 25% 3A 23MM |
11,339 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 120 Ohms | ±25% | 3 A | 1.28 Ohms | 0.906" (23.00mm) | 0.307" (7.80mm) | - | - | UR |
|
|
MS22 75004ICL 75 OHM 25% 4A 23MM |
767 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 75 Ohms | ±25% | 4 A | 410 mOhms | 0.906" (23.00mm) | 0.307" (7.80mm) | - | - | UR |
|
SG405ICL 1 OHM 25% 30A 31.75MM |
903 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 1 Ohms | ±25% | 30 A | 15 mOhms | 1.250" (31.75mm) | 0.310" (7.87mm) | - | - | CSA, UR |
|
SG379ICL 1 OHM 25% 30A 31.75MM |
435 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 1 Ohms | ±25% | 30 A | 15 mOhms | 1.250" (31.75mm) | 0.350" (8.89mm) | - | - | CSA, UR |
|
B57464S0509M000ICL 5 OHM 20% 9.5A 26MM |
6,174 |
|
Datasheet |
S464 | Bulk | Active | 5 Ohms | ±20% | 9.5 A | - | 1.024" (26.00mm) | 0.295" (7.50mm) | - | - | - |
|
B57464S0100M000ICL 10 OHM 20% 8A 26MM |
1,531 |
|
Datasheet |
S464 | Bulk | Active | 10 Ohms | ±20% | 8 A | - | 1.024" (26.00mm) | 0.295" (7.50mm) | - | - | - |
|
MF73T-1 2/18 L3-4.1MMICL 2 OHM 20% 18A 25MM |
225 |
|
Datasheet |
MF73T-1 | Bulk | Active | 2 Ohms | ±20% | 18 A | 26 mOhms | 0.984" (25.00mm) | 0.394" (10.00mm) | - | - | - |
|
B57464S0109M000ICL 1 OHM 20% 20A 26MM |
139 |
|
Datasheet |
S464 | Bulk | Active | 1 Ohms | ±20% | 20 A | - | 1.024" (26.00mm) | 0.295" (7.50mm) | - | - | - |
