Inrush Current Limiters (ICL)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | R @ 25°C | Tolerance | Current - Steady State Max | R @ Current | Diameter | Lead Spacing | Grade | Qualification | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B57364S0109M000ICL 1 OHM 20% 16A 21MM |
3,271 |
|
Datasheet |
S364 | Bulk | Active | 1 Ohms | ±20% | 16 A | - | 0.827" (21.00mm) | 0.295" (7.50mm) | - | - | CQC, UL, VDE |
|
SL22 20007-BICL 20 OHM 25% 7A 22MM |
2,802 |
|
Datasheet |
SL22 | Bulk | Active | 20 Ohms | ±25% | 7 A | 170 mOhms | 0.866" (22.00mm) | 0.307" (7.80mm) | - | - | - |
|
SG307ICL 2.5 OHM 15% 15A 22.86MM |
1,561 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 2.5 Ohms | ±15% | 15 A | 30 mOhms | 0.900" (22.86mm) | 0.350" (8.89mm) | - | - | CSA, UR |
|
B59750C0120A070ICL 25% |
2,618 |
|
Datasheet |
B59750 | Bulk | Active | - | ±25% | - | - | - | - | Automotive | AEC-Q200 | UR, VDE |
|
|
B57364S0259M051ICL 2.5 OHM 20% 11A 21MM |
3,974 |
|
Datasheet |
S364 | Tape & Reel (TR) | Active | 2.5 Ohms | ±20% | 11 A | - | 0.827" (21.00mm) | 0.295" (7.50mm) | - | - | CQC, UL, VDE |
|
MS12 15102ICL 150 OHM 25% 2A 13.5MM |
143 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 150 Ohms | ±25% | 2 A | 1.04 Ohms | 0.531" (13.50mm) | 0.307" (7.80mm) | - | - | UL |
|
CL-90ICL 120 OHM 25% 2A 23.62MM |
8,116 |
|
Datasheet |
CL | Bulk | Active | 120 Ohms | ±25% | 2 A | 1.18 Ohms | 0.930" (23.62mm) | 0.328" (8.33mm) | - | - | UL |
|

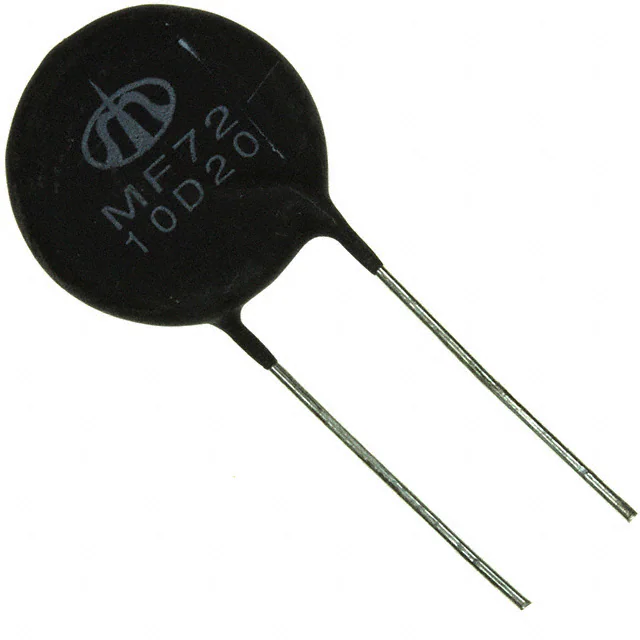

MF72-010D20ICL 10 OHM 20% 6A 22.5MM |
3,801 |
|
Datasheet |
MF72 | Bulk | Active | 10 Ohms | ±20% | 6 A | 162 mOhms | 0.886" (22.50mm) | 0.394" (10.00mm) | - | - | - |
|
PTCEL17R121NBEICL 120 OHM 30% 17MM |
1,399 |
|
Datasheet |
PTCEL | Tray | Active | 120 Ohms | ±30% | - | - | 0.670" (17.00mm) | 0.197" (5.00mm) | Automotive | AEC-Q200 | cURus |
|

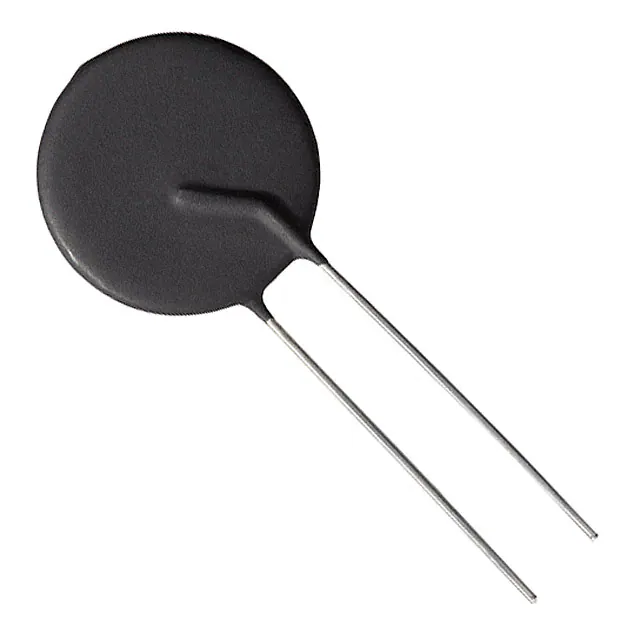

SL32 0R530ICL 500 MOHM 20% 30A 31MM |
3,183 |
|
Datasheet |
BigAMP | Bulk | Active | 500 mOhms | ±20% | 30 A | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA |
|
|
SL32 5R020-BICL 5 OHM 20% 20A 31MM |
1,114 |
|
Datasheet |
BigAMP | Bulk | Active | 5 Ohms | ±20% | 20 A | 30 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA, UR |
|
SL32 0R230ICL 300 MOHM 25% 30A 31MM |
731 |
|
Datasheet |
BigAMP | Bulk | Active | 300 mOhms | ±25% | 30 A | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | UR |
|
SL322R025-BICL 2 OHM 20% 25A 31MM |
105 |
|
Datasheet |
- | Bulk | Active | 2 Ohms | ±20% | 25 A | - | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA, UR |
|
MS22 20005ICL 20 OHM 25% 5A 23MM |
726 |
|
Datasheet |
MegaSurge™ | Bulk | Active | 20 Ohms | ±25% | 5 A | 190 mOhms | 0.906" (23.00mm) | 0.307" (7.80mm) | - | - | UL |
|
|
PTCEL17R501TBEICL 500 OHM 30% 17MM |
10,155 |
|
Datasheet |
PTCEL | Tray | Active | 500 Ohms | ±30% | - | - | 0.670" (17.00mm) | 0.197" (5.00mm) | Automotive | AEC-Q200 | cURus |
|
SG100ICL 1 OHM 15% 20A 22.86MM |
2,219 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 1 Ohms | ±15% | 20 A | 15 mOhms | 0.900" (22.86mm) | 0.310" (7.87mm) | - | - | CSA, UR |
|
SG26ICL 5 OHM 15% 12A 22.86MM |
2,013 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 5 Ohms | ±15% | 12 A | 60 mOhms | 0.900" (22.86mm) | 0.310" (7.87mm) | - | - | CSA, UR |
|
|
SL32 1R036ICL 1 OHM 20% 36A 31MM |
1,519 |
|
Datasheet |
BigAMP | Bulk | Active | 1 Ohms | ±20% | 36 A | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA |
|
|
SL32 1R030-BICL 1 OHM 20% 30A 31MM |
473 |
|
Datasheet |
BigAMP | Bulk | Active | 1 Ohms | ±20% | 30 A | 10 mOhms | 1.220" (31.00mm) | 0.307" (7.80mm) | - | - | CSA, UR |
|

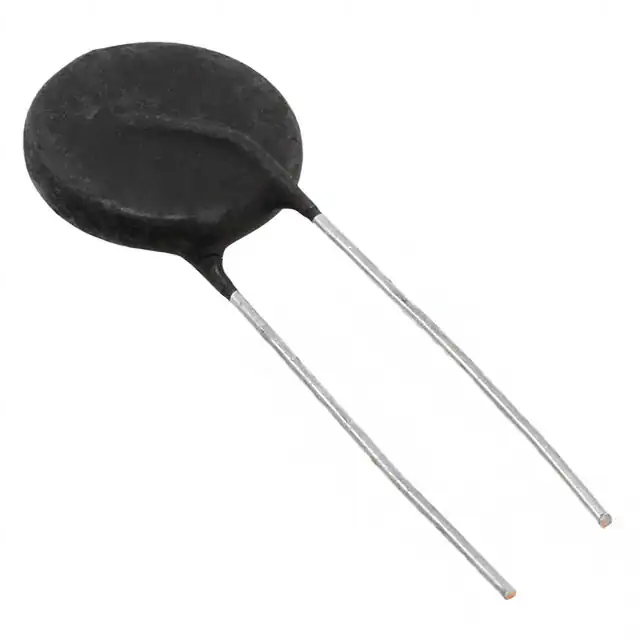

SG32ICL 4 OHM 20% 14A 22.86MM |
379 |
|
Datasheet |
SURGE-GARD™ | Bulk | Active | 4 Ohms | ±20% | 14 A | 50 mOhms | 0.900" (22.86mm) | 0.310" (7.87mm) | - | - | CSA, UR |
