Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DHO514-PROG-008INCREMENTAL ENCODER IO-LINK, HOL |
4,166 |
|
Datasheet |
DIGISINE™ | Bulk | Active | Incremental | HTL, TTL | Programmable | 4.75V ~ 30V | Hole for Shaft | No | No | Chassis Mount | User Selectable | - | - |
|
ROP520HOLLOW SHAFT ENCODER OPEN TO ONE |
3,929 |
|
Datasheet |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
ROP522HOLLOW SHAFT ENCODER OPEN TO ONE |
2,145 |
|
Datasheet |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
ROP521HOLLOW SHAFT ENCODER OPEN TO ONE |
1,942 |
|
- |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
|
ROP523HOLLOW SHAFT ENCODER OPEN TO ONE |
2,274 |
|
Datasheet |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
TCW400-1213-002TCW4 MOD MULTITURN 5-30V SSI NO |
4,543 |
|
Datasheet |
TCW4 | Bulk | Active | Absolute | SSI | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|
|
ROP524HOLLOW SHAFT ENCODER OPEN TO ONE |
2,896 |
|
- |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
ZGG0012CROTARY ENCODER OPTICAL 12PPR |
3,849 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 12 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
DHM510-PROG-011INCREMENTAL ENCODER IO-LINK, SOL |
1,557 |
|
Datasheet |
DIGISINE™, DHM5 | Bulk | Active | Incremental | HTL, TTL | Programmable | 4.75V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | - | - |
|
AHM510-16BT-002ABSOLUTE SINGLE-TURN ENCODER IO- |
3,241 |
|
Datasheet |
AHM5 | Bulk | Active | Absolute | Binary (Absolute) | Programmable | 18V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | - | - |
|
|
AHM506-16BT-002ABSOLUTE SINGLE-TURN ENCODER IO- |
2,535 |
|
Datasheet |
AHM5 | Bulk | Active | Absolute | Binary (Absolute) | Programmable | 18V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | - | - |
|
ZFH0200CROTARY ENCODER OPTICAL 200PPR |
1,953 |
|
Datasheet |
ZFH | Box | Active | Optical | Quadrature (Incremental) | 200 | 8V ~ 28V | 3/8" Dia Flatted End | No | - | Chassis Mount | - | Cable | - |
|
|
E6A2-CS3C 100P/R 0.5MROTARY ENCODER OPTICAL 100PPR |
1,161 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 100 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
E6A2-CS3C 10P/R 0.5MROTARY ENCODER OPTICAL 10PPR .5M |
2,944 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 10 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|

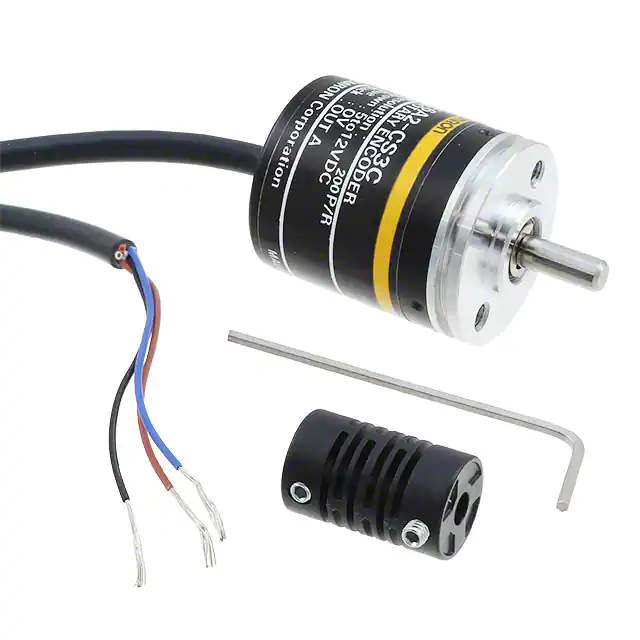

E6A2CS3C 200P/R 0.5MROTARY ENCODER OPT 200PPR .5M |
2,238 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Tachometer | 200 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | - |
|
|
E6A2-CS3C 300P/R 0.5MROTARY ENCODER OPT 300PPR .5M |
1,361 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 300 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
E6A2-CS3C 360P/R 0.5MROTARY ENCODER OPT 360PPR .5M |
3,088 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 360 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
E6A2-CS3C 500P/R 0.5MROTARY ENCODER OPT 500PPR .5M |
2,360 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 500 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
E6A2-CS3C 60P/R 0.5MROTARY ENCODER OPTICAL 60PPR .5M |
1,535 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 60 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
E6A2-CS3E 100P/R 0.5MROTARY ENCODER OPT 100PPR .5M |
3,598 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 100 | 5V ~ 12V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
