Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RO3102HOLLOW SHAFT ENCODER OPEN TO ONE |
2,750 |
|
- |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
|
1062785ROTARY ENCODR INCREMENT 2500PPR |
2,844 |
|
- |
- | Bulk | Active | Incremental | - | 2500 | 4.5V ~ 5.5V | Shaft | No | No | Chassis Mount | User Selectable | Cable | 2B |
|
|
1059909ROTARY ENCODR INCREMENT 2048PPR |
4,970 |
|
- |
- | Bulk | Active | Incremental | - | 2048 | 7V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Cable | 2B |
|
|
1062240ROTARY ENCODR INCREMENT 2048PPR |
3,319 |
|
- |
- | Bulk | Active | Incremental | - | 2048 | 7V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Cable | 2B |
|
ZCG0010CROTARY ENCODER OPTICAL 10PPR |
4,686 |
|
Datasheet |
ZCG | Box | Active | Optical | Quadrature (Incremental) | 10 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
RO3104HOLLOW SHAFT ENCODER OPEN TO ONE |
4,474 |
|
- |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Hole for Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|
TCW400-1213-004TCW4 MOD MULTITURN 5-30V SSI NO |
3,314 |
|
Datasheet |
TCW4 | Bulk | Active | Absolute | SSI | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|
|
TCW400-1216-001TCW4 MOD MULTITURN 5-30V CANOPEN |
2,146 |
|
Datasheet |
TCW4 | Bulk | Active | Absolute | - | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|
ZFG00/3CROTARY ENCODER OPT 0.333PPR 1M |
3,787 |
|
Datasheet |
ZFG | Box | Active | Optical | Quadrature (Incremental) | 0.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZFG0020CROTARY ENCODER OPTICAL 20PPR |
3,500 |
|
Datasheet |
ZFG | Box | Active | Optical | Quadrature (Incremental) | 20 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZFG33/3CROTARY ENCODR OPT 33.333PPR 100M |
1,140 |
|
Datasheet |
ZFG | Box | Active | Optical | Quadrature (Incremental) | 33.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
ZGG00/3CROTARY ENCODER OPT 0.333PPR 1M |
2,200 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 0.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZGG0020CROTARY ENCODER OPTICAL 20PPR |
2,580 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 20 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZGG0060CROTARY ENCODER OPTICAL 60PPR |
1,302 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 60 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZGG03/3CROTARY ENCODER OPT 3.333PPR 10M |
1,770 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 3.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
|
ZGG33/3CROTARY ENCODR OPT 33.333PPR 100M |
3,943 |
|
Datasheet |
ZGG | Box | Active | Optical | Quadrature (Incremental) | 33.333 | 8V ~ 35V | 3/8" Dia Flatted End | No | No | Chassis Mount | - | Cable | - |
|
RUP500SOLID SHAFT ENCODER; SHAFT DIAME |
1,405 |
|
- |
- | Box | Active | Incremental | - | 10000 | 4.75V ~ 30V | Shaft | No | No | Panel Mount | User Selectable | Connector | - |
|

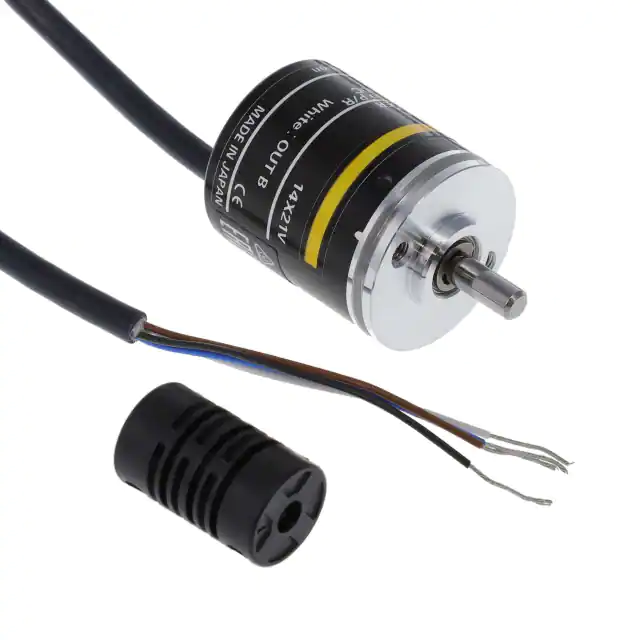

E6A2-CW5C100 P/R 2MROTARY ENCODER OPTICAL 100PPR 2M |
2,199 |
|
Datasheet |
E6A2 | Bulk | Active | Optical | Quadrature (Incremental) | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | Vertical | Cable Leads | 100M |
|
|
1067090ROTARY ENCODER INCREMENTAL |
1,779 |
|
- |
- | Bulk | Active | Incremental | - | - | 7V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Cable | - |
|
|
TCW400-1216-005TCW4 MOD MULTITURN 5-30V CANOPEN |
1,301 |
|
Datasheet |
TCW4 | Bulk | Active | Absolute | - | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
