Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000570231CBL RIBN 14COND 0.05 NATU 450' |
2,969 |
|
Datasheet |
Temp-Flex 100057 | Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | 450.0' (137.16m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Natural | - | 0.700" (17.78mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
HF319/30 (100')CBL RIBN 30COND 0.05 GRAY 50' |
1,555 |
|
Datasheet |
HF319 | Bulk | Active | Flat Cable | 30 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.500" (38.10mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
1000570029CBL RIBN 100COND 0.025 NATU 25' |
1,871 |
|
Datasheet |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 100 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570025CBL RIBN 50COND 0.025 NATU 50' |
3,688 |
|
Datasheet |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 50 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | 150°C | UL Style 20726 | - |
|

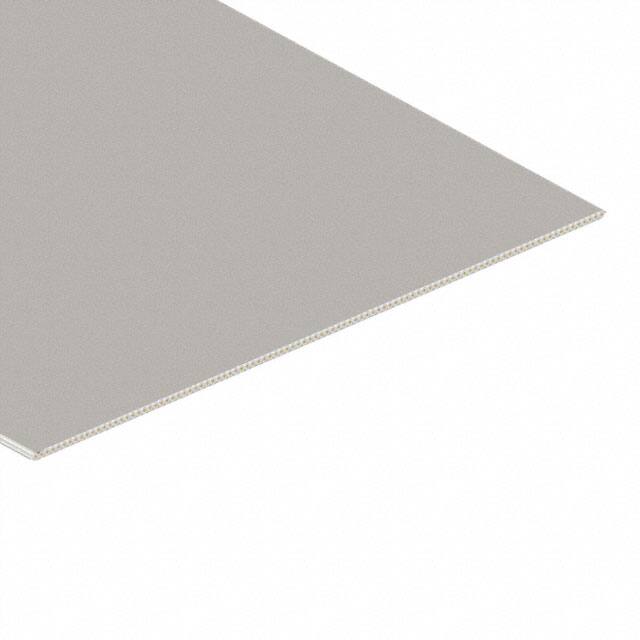

7700/100 100'SFCBL RIBN 100COND 0.025 SILV 100' |
3,826 |
|
Datasheet |
7700 | Spool | Obsolete | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 2.550" (64.77mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
|
1000570053CBL RIBN 26COND 0.05 RED 500' |
3,070 |
|
Datasheet |
Temp-Flex 100057 | Spool | Active | Flat Cable | 26 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Red | 0.029" (0.74mm) | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
3758G/40SFCBL RIBN |
2,871 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
|
3302/30 300CBL RIBN |
4,144 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AWG 28-14/G-500FLAT CABLE |
3,110 |
|
- |
- | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | - | 28 AWG | 7 Strands / 0.0050" | Unshielded | Gray | 0.033" (0.84mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | - | - |
|
|
C3319/24 100CBL RIBN 24COND 0.05 BLACK 100' |
2,117 |
|
Datasheet |
3319 | Bulk | Obsolete | Flat Cable | 24 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
SL8802/04-10DN5-00CBL RIBN 4COND 0.093 SILVER 250' |
4,254 |
|
Datasheet |
SL8800 | Spool | Discontinued at Digi-Key | Flat Twin Axial | 4 (2 Pair) | 0.093" (2.37mm) Between Pairs | 250.0' (76.20m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.215" (5.45mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
|
C3319/50 100CBL RIBN 50COND 0.05 BLACK 25' |
1,920 |
|
Datasheet |
3319 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
HF319/16 (300')CBL RIBN 16COND 0.05 GRAY 100' |
3,838 |
|
Datasheet |
HF319 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
7700/40SFCBL RIBN |
4,433 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
3601/16 100CBL RIBN 16COND 0.05 BLUE 50' |
1,650 |
|
Datasheet |
3601 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
3758/64 275CBL RIBN 64COND 0.05 GRAY 275' |
1,950 |
|
Datasheet |
3758 | Spool | Obsolete | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Zippable |
|
|
3717/68DF-100CBL RIBN |
3,804 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

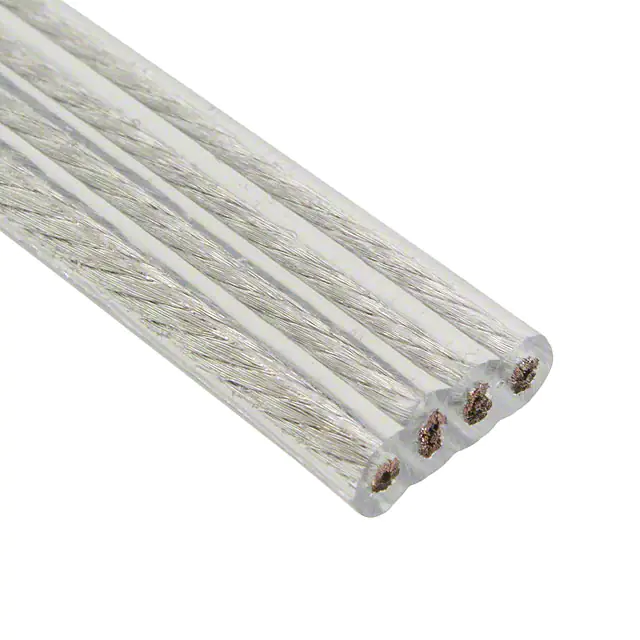

969M101-16-4CBL RIBN 4COND FLAT CLEAR 100' |
4,167 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | - | 100.0' (30.48m) | 16 AWG | - | Unshielded | Clear | 0.150" (3.81mm) | 0.480" (12.19mm) | Flexx-Sil™ | 20 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
|
3758/64 275SFCBL RIBN 64COND 0.05 GRAY 275' |
4,424 |
|
Datasheet |
3758 | Spool | Obsolete | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free, Zippable |
|
|
1000570283CBL RIBN 34COND 0.025 NATU 500' |
4,620 |
|
Datasheet |
Temp-Flex 100057 | Spool | Active | Flat Cable | 34 | 0.025" (0.64mm) | 500.0' (152.40m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.850" (21.59mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
