Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0082243426CBL RIBN 26COND 0.079 GRAY 100' |
2,021 |
|
Datasheet |
24473 | Bulk | Obsolete | Flat Cable | 26 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 2.047" (52.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
3517/40EB 100CBL RIBN 40COND 0.05 GRAY 100' |
1,862 |
|
Datasheet |
3517 | Bulk | Obsolete | Flat Cable, Flat Jacket | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
SL8801/12-101A5-00CBL RIBN 8COND 0.093 SILVER 250' |
2,248 |
|
Datasheet |
SL8800 | Bulk | Obsolete | Flat Twin Axial | 8 (4 Pair) | 0.093" (2.37mm) Between Pairs | 250.0' (76.20m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.627" (15.93mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
|
304-28-44-MC-0300FCBL RIBN 44COND 0.05 MULTI 300' |
4,655 |
|
Datasheet |
- | Box | Obsolete | Flat Cable | 44 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
09180267008CBL RIBN 26COND 0.05 BLACK 100' |
3,530 |
|
Datasheet |
- | Bulk | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
1000570179CBL RIBN 30COND 0.394 BLUE 25' |
2,687 |
|
Datasheet |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 30 | 0.394" (10.00mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.500" (38.10mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3609/12 100CBL RIBN 12COND 0.025 WHITE 50' |
2,262 |
|
Datasheet |
3609 | Bulk | Active | Flat Cable | 12 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | - | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
|
482W101-34-250CBL RIBN 34COND 0.025 CLEAR 100' |
1,846 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 34 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.850" (21.59mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
|

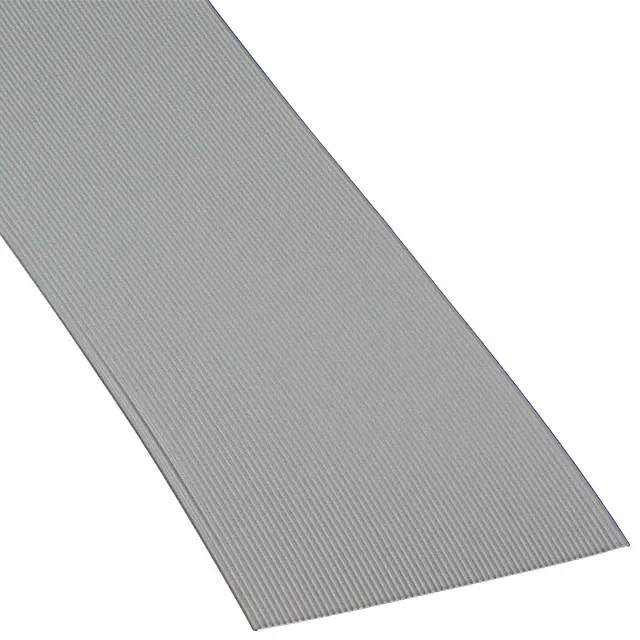

HF539/64CBL RIBN 64COND 0.05 GRAY 50' |
4,168 |
|
Datasheet |
HF539 | Box | Active | Flat Cable | 64 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
1000570027CBL RIBN 68COND 0.025 NATU 25' |
2,304 |
|
Datasheet |
Temp-Flex 100057 | Bulk | Discontinued at Digi-Key | Flat Cable | 68 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
|
3604/08CBL RIBN 8COND FLAT 0.025 WHITE |
3,669 |
|
Datasheet |
3604 | Spool | Discontinued at Digi-Key | Flat Cable | 8 | 0.025" (0.64mm) | - | 30 AWG | Solid | Unshielded | White | 0.024" (0.61mm) | 0.200" (5.08mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
HF625/34-100MCBL RIBN 34COND 0.039 GRY 229.7' |
2,014 |
|
Datasheet |
HF625 | Bulk | Active | Flat Cable | 34 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.339" (34.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
1000570037CBL RIBN 34COND 0.05 BLUE 50' |
2,160 |
|
Datasheet |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
HF659/40SFCBL RIBN 40COND 0.05 GRAY 100' |
3,759 |
|
Datasheet |
HF659 | Box | Obsolete | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.950" (49.53mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
|
1000570345CBL RIBN 20COND 0.05 RED 100' |
2,558 |
|
Datasheet |
Temp-Flex 100057 | Spool | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Red | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

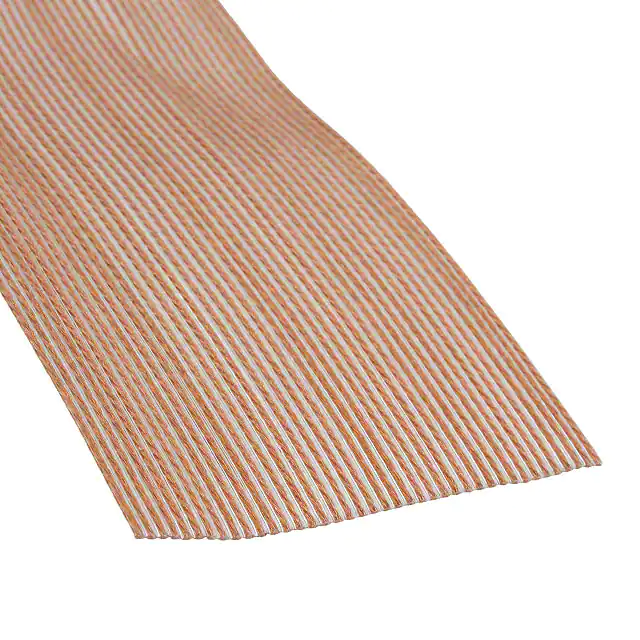

310J101-40CBL RIBN 40COND 0.05 CLEAR 100' |
3,315 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 2.000" (50.80mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
HF319/24 (100')CBL RIBN 24COND 0.05 GRAY 50' |
4,297 |
|
Datasheet |
HF319 | Bulk | Obsolete | Flat Cable | 24 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.200" (30.48mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
AWG28-64/F/300CBL RIBN 64COND 0.05 MULTI 100' |
2,542 |
|
Datasheet |
AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
0082263028CBL RIBN 28COND 0.079 GRAY 100' |
2,818 |
|
Datasheet |
24463 | Bulk | Obsolete | Flat Cable | 28 | 0.079" (2.00mm) | 100.0' (30.48m) | 26 AWG | 19 Strands / 38 AWG | Unshielded | Gray | 0.041" (1.04mm) | 2.205" (56.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
HF100/60TPCBL RIBN 60COND TWIST PAIR 50' |
1,467 |
|
Datasheet |
HF100 | Box | Active | Flat Twisted Pair | 60 (30 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.950" (74.93mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
