Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT0603CSF-4N3JSMD CER CORE WIRE-WOUND INDUCTOR |
3,149 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.3 nH | ±5% | - | - | - | 63mOhm | - | 5.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R39JSMD CER CORE WIRE-WOUND INDUCTOR |
3,455 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±5% | - | - | - | 4.35Ohm | - | 900MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT0805FSF-182JSMD FER CORE WIRE-WOUND INDUCTOR |
1,269 |
|
Datasheet |
ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±5% | - | - | - | 900mOhm | - | 120MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-30NJSMD CER CORE WIRE-WOUND INDUCTOR |
4,603 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 30 nH | ±5% | - | - | - | 144mOhm | - | 2.25GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-33NJSMD CER CORE WIRE-WOUND INDUCTOR |
2,978 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±5% | - | - | - | 220mOhm | - | 2.3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-6N2JSMD CER CORE WIRE-WOUND INDUCTOR |
4,083 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.2 nH | ±5% | - | - | - | 110mOhm | - | 5.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R18JSMD CER CORE WIRE-WOUND INDUCTOR |
2,479 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±5% | - | - | - | 1.25Ohm | - | 990MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R10JSMD CER CORE WIRE-WOUND INDUCTOR |
3,149 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±5% | - | - | - | 580mOhm | - | 1.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

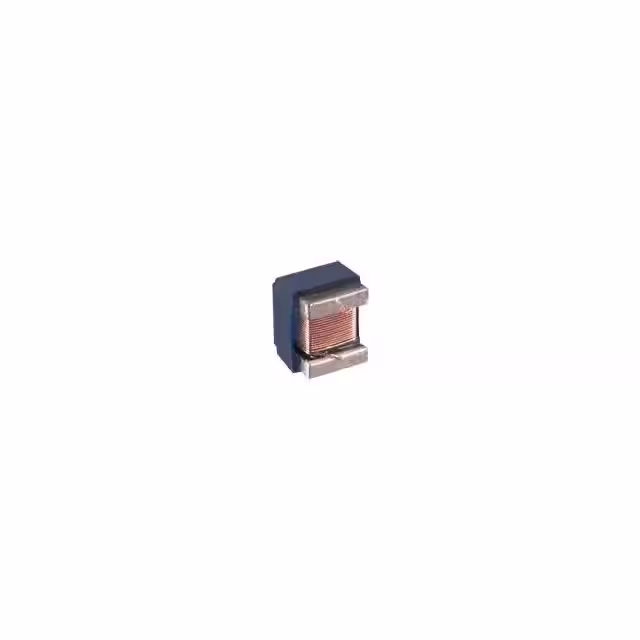

CT0805LDLSF-6R8KSMD FER CORE WIRE-WOUND INDUCTOR |
3,932 |
|
Datasheet |
ct0805ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±10% | - | - | - | 750mOhm | - | 60MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0805LDLSF-4R7KSMD FER CORE WIRE-WOUND INDUCTOR |
2,483 |
|
Datasheet |
ct0805ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±10% | - | - | - | 470mOhm | - | 50MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0805LDLSF-3R3KSMD FER CORE WIRE-WOUND INDUCTOR |
3,622 |
|
Datasheet |
ct0805ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±10% | - | - | - | 300mOhm | - | 55MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0805LDLSF-2R2KSMD FER CORE WIRE-WOUND INDUCTOR |
1,660 |
|
Datasheet |
ct0805ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±10% | - | - | - | 240mOhm | - | 70MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0805LDLSF-100KSMD FER CORE WIRE-WOUND INDUCTOR |
4,434 |
|
Datasheet |
ct0805ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | - | - | - | 900mOhm | - | 25MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CTRL5480F-1-100KRADI |
2,633 |
|
- |
CTRL5480F-1 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 620 mA | 920mA | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.337" (8.57mm) |
|
CTLV2512SF-1R2M1.2UH SMD POWER INDUCTOR |
3,515 |
|
Datasheet |
CTLV2512SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 2.11 A | 1.89A | Shielded | 53mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
CTLV2512SF-1R0M1.0UH SMD POWER INDUCTOR |
3,128 |
|
Datasheet |
CTLV2512SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 2.16 A | 2.25A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
CTLV2512SF-5R6M5.6UH SMD POWER INDUCTOR |
4,095 |
|
Datasheet |
CTLV2512SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 900 mA | 940mA | Shielded | 210mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
CTLV2512SF-220M22UH SMD POWER INDUCTOR |
2,093 |
|
Datasheet |
CTLV2512SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 470 mA | 490mA | Shielded | 810mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
CT0603LSF-392JSMD FER CORE WIRE-WOUND INDUCTOR |
1,179 |
|
Datasheet |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±5% | - | - | - | 1.6Ohm | - | 80MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603LSF-472JSMD FER CORE WIRE-WOUND INDUCTOR |
2,619 |
|
Datasheet |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±5% | - | - | - | 2.1Ohm | - | 69MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
