Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

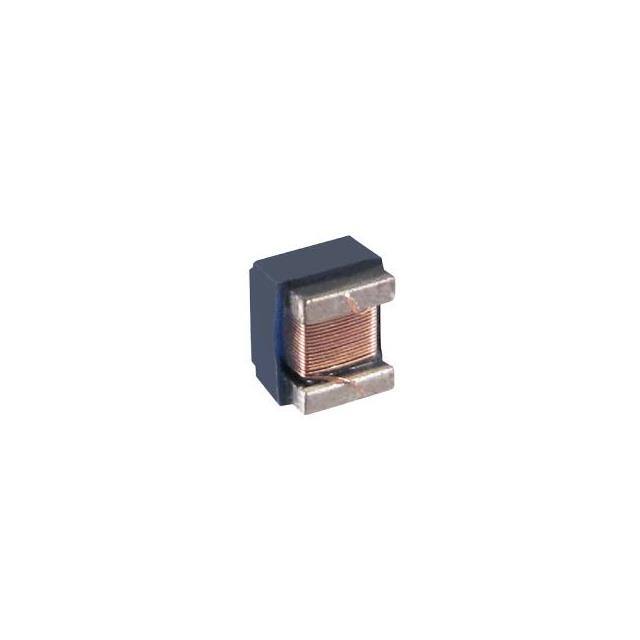

CT0201LSF-59NJSMD FER CORE WIRE-WOUND INDUCTOR |
4,223 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 59 nH | ±5% | - | - | - | 260mOhm | - | 2.2GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-6N8JSMD FER CORE WIRE-WOUND INDUCTOR |
1,047 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 nH | ±5% | - | - | - | 110mOhm | - | 2.4GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-56NJSMD FER CORE WIRE-WOUND INDUCTOR |
3,569 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±5% | - | - | - | 260mOhm | - | 2.2GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-76NJSMD FER CORE WIRE-WOUND INDUCTOR |
1,705 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 76 nH | ±5% | - | - | - | 300mOhm | - | 2GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-R13JSMD FER CORE WIRE-WOUND INDUCTOR |
4,816 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 130 nH | ±5% | - | - | - | 440mOhm | - | 1.5GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-R20JSMD FER CORE WIRE-WOUND INDUCTOR |
1,968 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±5% | - | - | - | 950mOhm | - | 1.4GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-R16JSMD FER CORE WIRE-WOUND INDUCTOR |
2,392 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 160 nH | ±5% | - | - | - | 710mOhm | - | 1.4GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-28NJSMD FER CORE WIRE-WOUND INDUCTOR |
1,058 |
|
Datasheet |
ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 28 nH | ±5% | - | - | - | 200mOhm | - | 2.4GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|

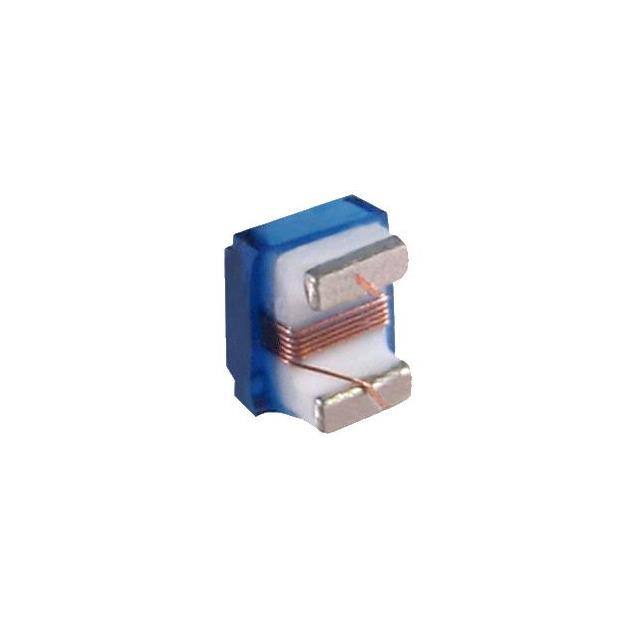

CT1008HQF-R10GSMD CER CORE WIRE-WOUND INDUCTOR |
2,398 |
|
Datasheet |
ct1008hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±2% | - | - | - | 160mOhm | - | 820MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008HQF-82NGSMD CER CORE WIRE-WOUND INDUCTOR |
4,507 |
|
Datasheet |
ct1008hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 82 nH | ±2% | - | - | - | 160mOhm | - | 1.06GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008HQF-R10KSMD CER CORE WIRE-WOUND INDUCTOR |
2,599 |
|
Datasheet |
ct1008hqf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±10% | - | - | - | 160mOhm | - | 820MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT1008LSCF-1R8JSMD FER CORE WIRE-WOUND INDUCTOR |
2,473 |
|
Datasheet |
ct1008lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±5% | - | - | - | 1.5Ohm | - | 135MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

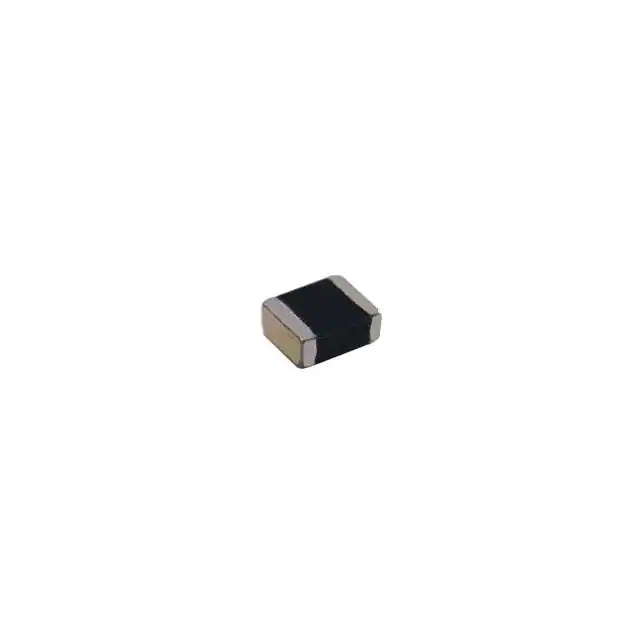

CTMLP100805F-3R3M3.3UH SMD MULTIL POWER INDUCTOR |
100 |
|
Datasheet |
CTMLP100805F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.1 A | 500mA | Shielded | 120mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CT0805FSF-221KSMD FER CORE WIRE-WOUND INDUCTOR |
2,816 |
|
Datasheet |
ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±10% | - | - | - | 250mOhm | - | 550MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0805FSF-152JSMD FER CORE WIRE-WOUND INDUCTOR |
1,811 |
|
Datasheet |
ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±5% | - | - | - | 1.05Ohm | - | 250MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CT0603CSF-3N3JSMD CER CORE WIRE-WOUND INDUCTOR |
1,114 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.3 nH | ±5% | - | - | - | 45mOhm | - | 5.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-6N8JSMD CER CORE WIRE-WOUND INDUCTOR |
1,395 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 nH | ±5% | - | - | - | 110mOhm | - | 5.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-10NJSMD CER CORE WIRE-WOUND INDUCTOR |
4,592 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±5% | - | - | - | 130mOhm | - | 4.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-15NJSMD CER CORE WIRE-WOUND INDUCTOR |
4,737 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 15 nH | ±5% | - | - | - | 170mOhm | - | 4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-1N8GSMD CER CORE WIRE-WOUND INDUCTOR |
2,666 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 nH | ±20% | - | - | - | 45mOhm | - | 12.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
