Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

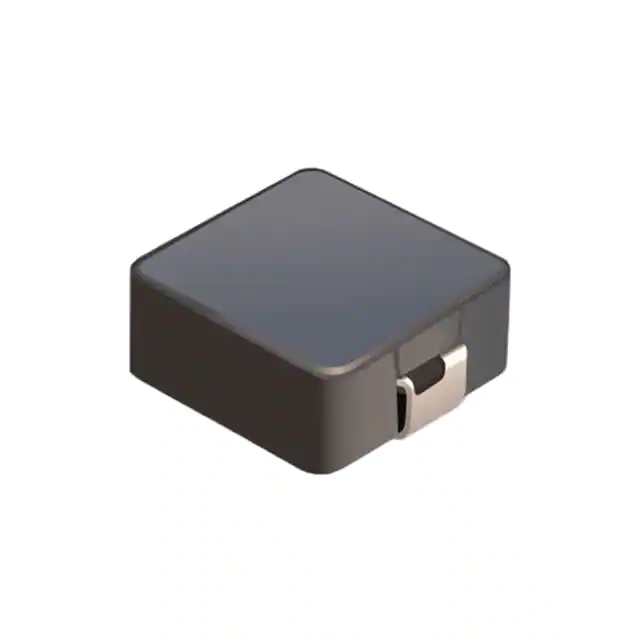

SRP1038A-1R0MFIXED IND 1UH 18A 3.3 MOHM SMD Bourns Inc. |
3,694 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 18 A | 36A | Shielded | 3.3mOhm Max | 20 @ 100kHz | 47MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
5800-222-RCFIXED IND 2.2MH 170MA 5.3 OHM TH Bourns Inc. |
1,378 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 170 mA | 240mA | Unshielded | 5.3Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-4R7-RCFIXED IND 4.7UH 3.1A 16 MOHM TH Bourns Inc. |
839 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.1 A | 5.4A | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-100-RCFIXED IND 10UH 2.1A 32 MOHM TH Bourns Inc. |
805 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.1 A | 3.6A | Unshielded | 32mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
5800-103-RCFIXED IND 10MH 76MA 24 OHM TH Bourns Inc. |
773 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 76 mA | 110mA | Unshielded | 24Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
SRP1038A-5R6MFIXED IND 5.6UH 9A 19.3 MOHM SMD Bourns Inc. |
671 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 9 A | 14A | Shielded | 19.3mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-3R3MFIXED IND 3.3UH 11A 11.8MOHM SMD Bourns Inc. |
977 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 11 A | 20A | Shielded | 11.8mOhm Max | 20 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP1038AA-470MIND,11X10X3.8MM,47UH20%,3.5A,SHD Bourns Inc. |
204 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 47 µH | ±20% | 3.5 A | 4A | Shielded | 143mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRR1210A-220MFIXED IND 22UH 5.2A 38 MOHM SMD Bourns Inc. |
1,032 |
|
Datasheet |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 5.2 A | 4.5A | Shielded | 38mOhm Max | 16 @ 2.52MHz | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP5030TA-3R3MFIXED IND 3.3UH 5A 38 MOHM SMD Bourns Inc. |
12,698 |
|
Datasheet |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 5 A | 8A | Shielded | 38mOhm Max | 15 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
