Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7050TA-1R5MFIXED IND 1.5UH 12A 9 MOHM SMD Bourns Inc. |
371 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 12 A | 16.5A | Shielded | 9mOhm Max | 15 @ 100kHz | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
SRR6603-103MLFIXED IND 10MH 20MA 32.8 OHM SMD Bourns Inc. |
6,727 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 20 mA | 17mA | Shielded | 32.8Ohm Max | 50 @ 100kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
SRR6603-100MLFIXED IND 10UH 1A 75 MOHM SMD Bourns Inc. |
6,525 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 370mA | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
SRR6603-470MLFIXED IND 47UH 500MA 230MOHM SMD Bourns Inc. |
1,604 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 240mA | Shielded | 230mOhm Max | 40 @ 100kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|

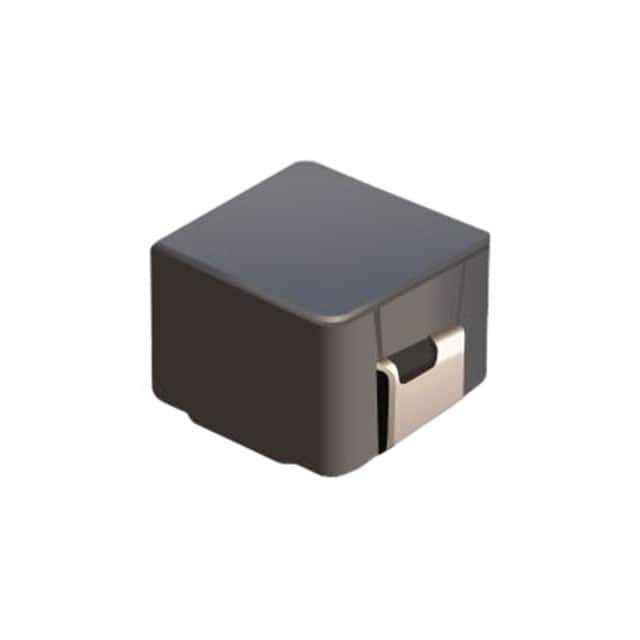

SRP7050AA-220MIND,7.3X6.6X4.8MM,22UH20%,4.2A,S Bourns Inc. |
437 |
|
Datasheet |
SRP7050AA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 4.2 A | 3.6A | Shielded | 142mOhm Max | 10 @ 100kHz | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRR6603-332MLFIXED IND 3.3MH 80MA 11 OHM SMD Bourns Inc. |
436 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 80 mA | 24mA | Shielded | 11Ohm Max | 50 @ 100kHz | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
SRR6603-220MLFIXED IND 22UH 700MA 110MOHM SMD Bourns Inc. |
400 |
|
Datasheet |
SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 300mA | Shielded | 110mOhm Max | 40 @ 100kHz | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|

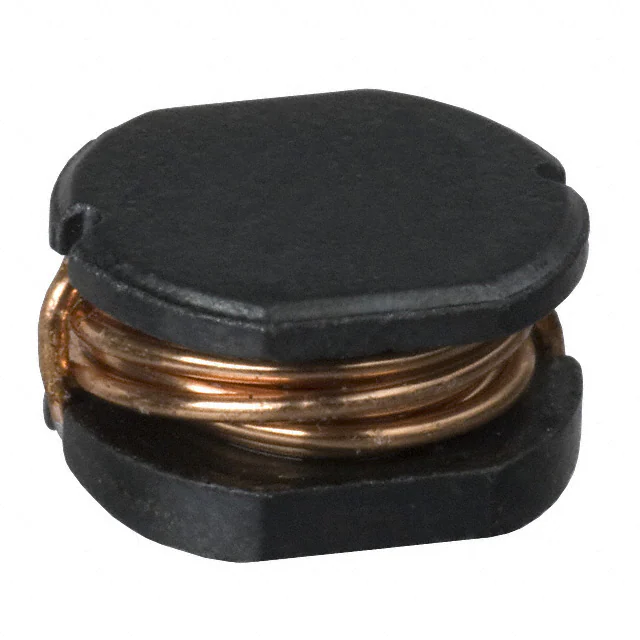

PM105-101K-RCFIXED IND 100UH 970MA 350MOHM SM Bourns Inc. |
850 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | 1.7A | Unshielded | 350mOhm | 15 @ 796kHz | 5.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
SRP7050AA-6R8MIND,7.3X6.6X4.8MM,6.8UH20%,9A,SH Bourns Inc. |
590 |
|
Datasheet |
SRP7050AA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 9 A | 7.6A | Shielded | 36mOhm Max | 10 @ 100kHz | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP7050AA-4R7MIND,7.3X6.6X4.8MM,4.7UH20%,11A,S Bourns Inc. |
203 |
|
Datasheet |
SRP7050AA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 11 A | 8.8A | Shielded | 24mOhm Max | 10 @ 100kHz | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
