Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

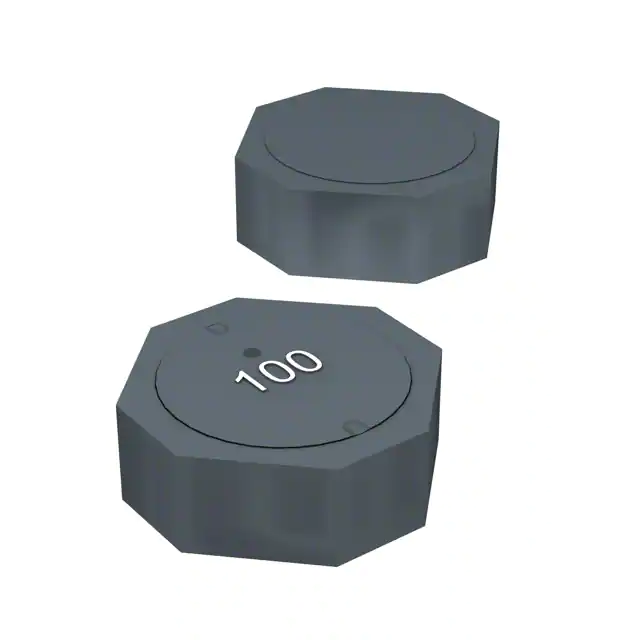

SRU8043-100YFIXED IND 10UH 3.5A 30 MOHM SMD Bourns Inc. |
13,151 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.5 A | 2.7A | Shielded | 30mOhm | 27 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-4R7YFIXED IND 4.7UH 4.6A 17 MOHM SMD Bourns Inc. |
10,799 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.6 A | 3.6A | Shielded | 17mOhm | 13 @ 7.96MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-3R9YFIXED IND 3.9UH 4.8A 14.6MOHM SM Bourns Inc. |
10,568 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 4.8 A | 4A | Shielded | 14.6mOhm | 15 @ 7.96MHz | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-2R2YFIXED IND 2.2UH 5.4A 11.2MOHM SM Bourns Inc. |
5,763 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.4 A | 5.2A | Shielded | 11.2mOhm | 15 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-150YFIXED IND 15UH 2.7A 46 MOHM SMD Bourns Inc. |
4,557 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.7 A | 2A | Shielded | 46mOhm | 26 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-6R8YFIXED IND 6.8UH 3.8A 22.4MOHM SM Bourns Inc. |
4,491 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.8 A | 3.1A | Shielded | 22.4mOhm | 12 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-101YFIXED IND 100UH 1A 287 MOHM SMD Bourns Inc. |
3,751 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1 A | 800mA | Shielded | 287mOhm | 50 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-470YFIXED IND 47UH 1.5A 120 MOHM SMD Bourns Inc. |
3,493 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.5 A | 1.2A | Shielded | 120mOhm | 21 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
|
SRU8043-330YFIXED IND 33UH 1.7A 100 MOHM SMD Bourns Inc. |
2,549 |
|
Datasheet |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.7 A | 1.4A | Shielded | 100mOhm | 21 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
SRP4020CC-2R2MIND SMD 2.2UH 4A Bourns Inc. |
1,858 |
|
Datasheet |
SRP4020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
