Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP5030CC-4R7MIND SMD 4.7UH 4A Bourns Inc. |
1,761 |
|
Datasheet |
SRP5030CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 4 A | 6A | Shielded | 53mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRP5030CC-6R8MIND SMD 6.8UH 3.3A Bourns Inc. |
1,051 |
|
Datasheet |
SRP5030CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 3.3 A | 4A | Shielded | 72mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|

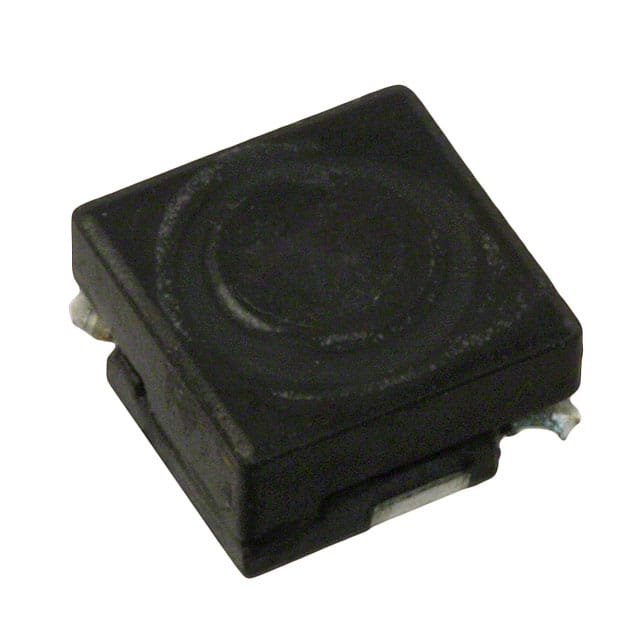

SRR0603-100MLFIXED IND 10UH 1.1A 120 MOHM SMD Bourns Inc. |
7,477 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.5A | Shielded | 120mOhm Max | 16 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0603-4R7MLFIXED IND 4.7UH 1.6A 70 MOHM SMD Bourns Inc. |
5,040 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.6 A | 2.2A | Shielded | 70mOhm Max | 13 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
SRR0604-100MLFIXED IND 10UH 1.3A 120 MOHM SMD Bourns Inc. |
55,066 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 1.8A | Shielded | 120mOhm Max | 18 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SRR0604-102KLFIXED IND 1MH 120MA 6.1 OHM SMD Bourns Inc. |
29,679 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | 150mA | Shielded | 6.1Ohm Max | 15 @ 252kHz | 5.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SRR0604-101KLFIXED IND 100UH 400MA 650MOHM SM Bourns Inc. |
9,882 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 400 mA | 570mA | Shielded | 650mOhm Max | 23 @ 796kHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SRR0604-330KLFIXED IND 33UH 700MA 250MOHM SMD Bourns Inc. |
4,030 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 700 mA | 950mA | Shielded | 250mOhm Max | 16 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
|
SRR0604-470KLFIXED IND 47UH 600MA 360MOHM SMD Bourns Inc. |
2,044 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 600 mA | 800mA | Shielded | 360mOhm Max | 15 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|

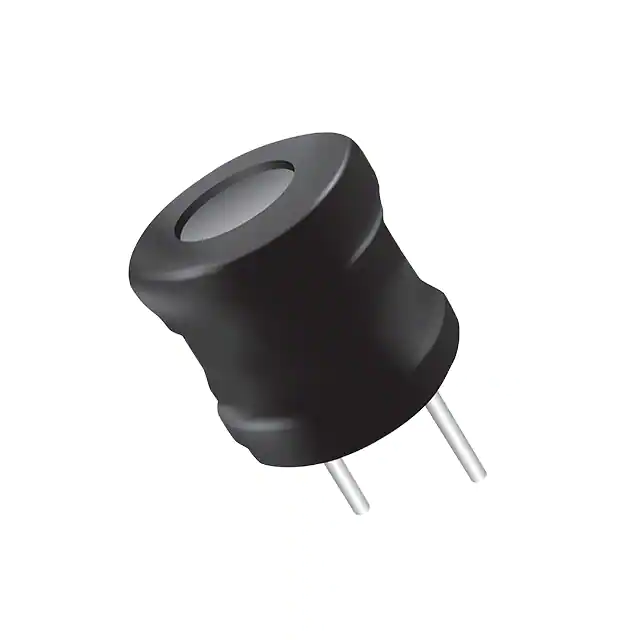

RLB1112V4-102JFIXED IND 1MH 510MA 1.4 OHM TH Bourns Inc. |
3,423 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 510 mA | 500mA | Unshielded | 1.4Ohm Max | 20 @ 252kHz | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.453" Dia (11.50mm) | 0.531" (13.50mm) |
