Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLRNJ12565GL221MMYFIXED IND 220UH 1.18A 327.6 MOHM Taiyo Yuden |
2,994 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 273mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM Taiyo Yuden |
3,860 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 16.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL150MMYFIXED IND 15UH 4.33A 28.44 MOHM Taiyo Yuden |
1,318 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.84A | Shielded | 23.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL101MMYFIXED IND 100UH 1.81A 147.6 MOHM Taiyo Yuden |
2,010 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 148mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL150MMYFIXED IND 15UH 4.33A 28.44 MOHM Taiyo Yuden |
1,099 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.84A | Shielded | 28.5mOhm Max | - | 14.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

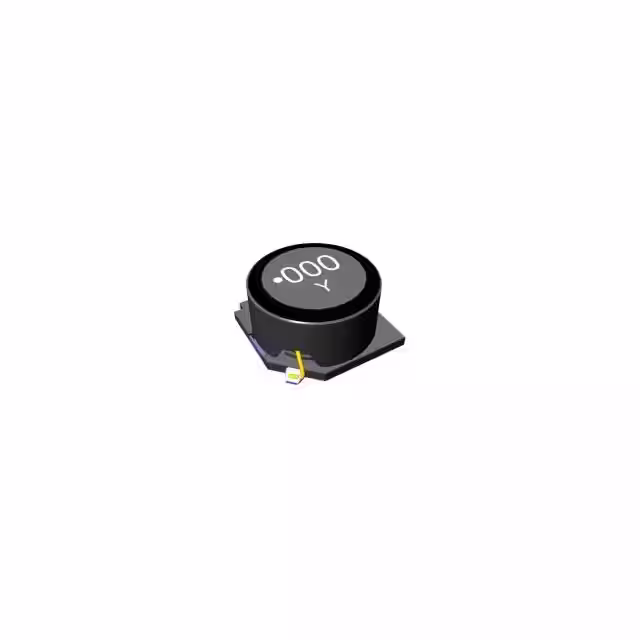

LSRNJ12565GL4R2NMYFIXED IND 4.2UH 5.91A 15.12 MOHM Taiyo Yuden |
2,463 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.2 µH | ±30% | 5.91 A | 10.15A | Shielded | 15.2mOhm Max | - | 41.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL101MMYFIXED IND 100UH 1.81A 147.6 MOHM Taiyo Yuden |
4,018 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 123mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL100MMYFIXED IND 10UH 4.75A 23.88 MOHM Taiyo Yuden |
3,704 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 19.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL100MMYFIXED IND 10UH 4.75A 23.88 MOHM Taiyo Yuden |
1,466 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 19.9mOhm | - | 15.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL4R2NMYFIXED IND 4.2UH 5.91A 15.12 MOHM Taiyo Yuden |
3,218 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.2 µH | ±30% | 5.91 A | 10.15A | Shielded | 12.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
