Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
N08DPB821KFIXED IND 820UH 330MA 3.1OHM SMD Taiyo Yuden |
1,741 |
|
Datasheet |
N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 µH | ±10% | 330 mA | - | Unshielded | 3.1Ohm Max | - | 2.4MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.417" L x 0.354" W (10.60mm x 9.00mm) | 0.197" (5.00mm) |
|
|
NS10145T151MNVVFIXED IND 150UH 860MA 420MOHM SM Taiyo Yuden |
3,169 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 860 mA | 1.11A | Shielded | 420mOhm Max | - | 4.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

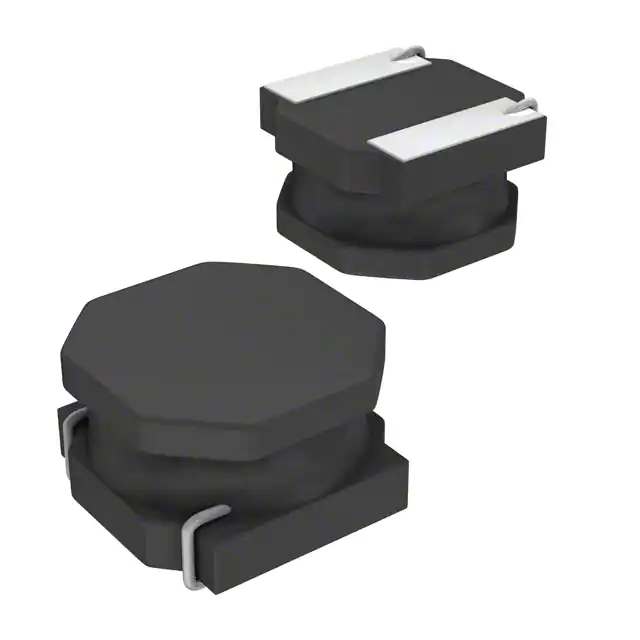

MDMK2020TR47MMVFIXED IND 470NH 46 MOHM SMD Taiyo Yuden |
3,427 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | - | - | Shielded | 46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MDMK2020TR68MMVFIXED IND 680NH 58 MOHM SMD Taiyo Yuden |
3,836 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | - | - | Shielded | 58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LSRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD Taiyo Yuden |
2,531 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 9.6mOhm Max | - | 82.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LSRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM Taiyo Yuden |
1,691 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 37.2mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD Taiyo Yuden |
3,863 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

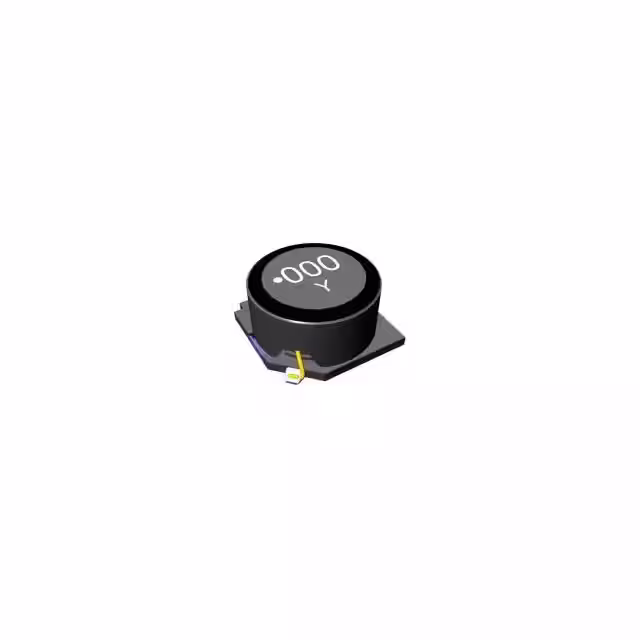

LLRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM Taiyo Yuden |
1,241 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 173mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM Taiyo Yuden |
1,619 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
LLRNJ12565GL470MMYFIXED IND 47UH 2.78A 69 MOHM SMD Taiyo Yuden |
3,370 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.78 A | 3.34A | Shielded | 57.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
