Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLRNJ10155GL2R2NNYFIXED IND 2.2UH 7.61A 8.4MOHM SM Taiyo Yuden |
2,766 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 7.61 A | 10A | Shielded | 7.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LLRNJ10155GL3R3NNYFIXED IND 3.3UH 6.49A 12MOHM SMD Taiyo Yuden |
3,663 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.49 A | 8.5A | Shielded | 9.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LSRNJ10155GL3R3NNYFIXED IND 3.3UH 6.49A 12MOHM SMD Taiyo Yuden |
1,019 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.49 A | 8.5A | Shielded | 11.7mOhm Max | - | 40.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|

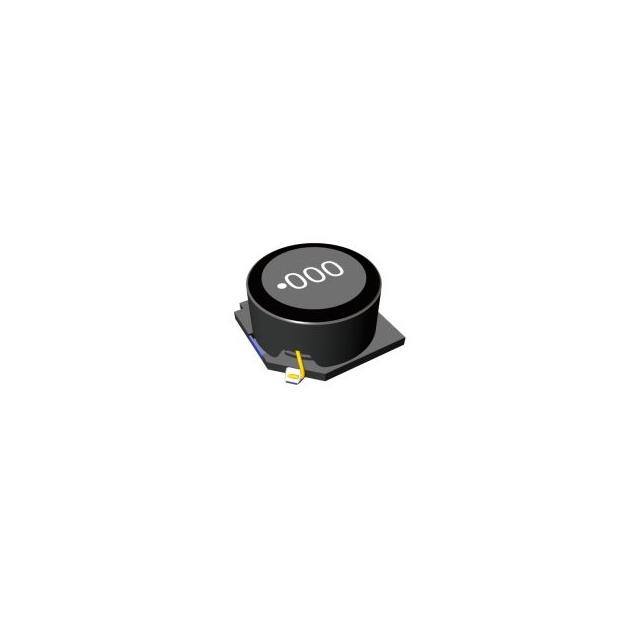

LSRNJ10155GL2R2NNYFIXED IND 2.2UH 7.61A 8.4MOHM SM Taiyo Yuden |
1,106 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 7.61 A | 10A | Shielded | 8.7mOhm Max | - | 55.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LLRNJ10155GL1R5NNYFIXED IND 1.5UH 8.39A 7.2MOHM SM Taiyo Yuden |
1,473 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.39 A | 11.9A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
LLRNJ10155GL4R7NNYFIXED IND 4.7UH 6.01A 13.2 MOHM Taiyo Yuden |
3,048 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 6.01 A | 7.4A | Shielded | 11.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
NRV2012T1R5NGFVFIXED IND 1.5UH 1.4A 120MOHM SMD Taiyo Yuden |
4,644 |
|
Datasheet |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.4 A | 1.8A | Unshielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LLRNJ10165GL3R3NNYFIXED IND 3.3UH 6.76A 10.8 MOHM Taiyo Yuden |
1,203 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.76 A | 9.3A | Shielded | 8.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LLRNJ10165GL4R7NNYFIXED IND 4.7UH 5.88A 13.2 MOHM Taiyo Yuden |
1,617 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 11.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LSRNJ10165GL1R5NNYFIXED IND 1.5UH 8.04A 7.2MOHM SM Taiyo Yuden |
3,476 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 7.5mOhm Max | - | 85.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
