Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLRNJ10145GL152MNYFIXED IND 1.5MH 270MA 4.44OHM SM Taiyo Yuden |
3,126 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 mH | ±20% | 270 mA | 360mA | Shielded | 3.7Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL680MNYFIXED IND 68UH 1.45A 180MOHM SMD Taiyo Yuden |
4,126 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.45 A | 1.66A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LSRNJ10145GL151MNYFIXED IND 150UH 940MA 409.2 MOHM Taiyo Yuden |
2,256 |
|
- |
LSRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 940 mA | 1.11A | Shielded | 410mOhm Max | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL330MNYFIXED IND 33UH 2.01A 98.4MOHM SM Taiyo Yuden |
1,901 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 2.01 A | 2.36A | Shielded | 81.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|

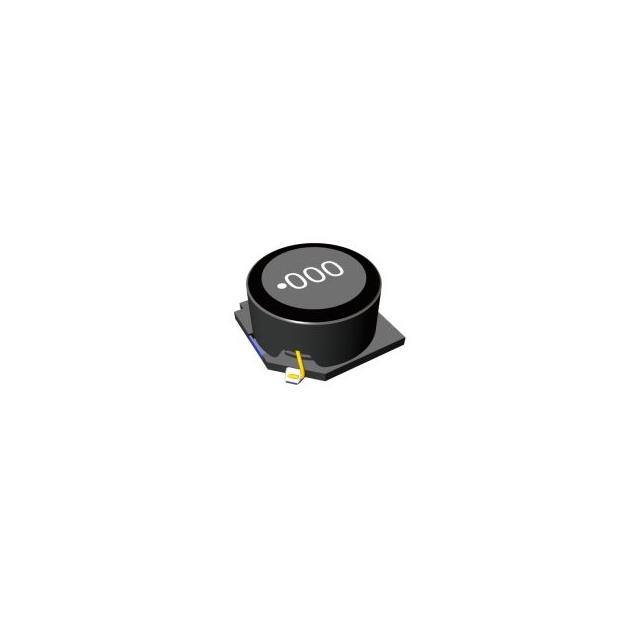

LLRNJ10145GL220MNYFIXED IND 22UH 2.55A 62.4MOHM SM Taiyo Yuden |
1,739 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.55 A | 2.87A | Shielded | 52mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL100MNYFIXED IND 10UH 3.77A 30 MOHM SMD Taiyo Yuden |
1,990 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3.77 A | 4.22A | Shielded | 24.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL101MNYFIXED IND 100UH 1.25A 240MOHM SM Taiyo Yuden |
3,734 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.25 A | 1.29A | Shielded | 200mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL471MNYFIXED IND 470UH 520MA 1.236 OHM Taiyo Yuden |
3,700 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.03Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL3R3NNYFIXED IND 3.3UH 6.1A 12 MOHM SMD Taiyo Yuden |
2,301 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 7.33A | Shielded | 10mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
LLRNJ10145GL151MNYFIXED IND 150UH 940MA 409.2 MOHM Taiyo Yuden |
3,403 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 940 mA | 1.11A | Shielded | 341mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
