Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSANB2520MKTR68MFIXED IND 680NH 3.2A 48 MOHM SMD Taiyo Yuden |
1,527 |
|
- |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 3.2 A | 3.2A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSANB2520KKT2R2MFIXED IND 2.2UH 1.5A 156MOHM SMD Taiyo Yuden |
4,317 |
|
- |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 1.9A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSANB2520KKTR68MFIXED IND 680NH 2.9A 59 MOHM SMD Taiyo Yuden |
4,003 |
|
- |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 2.9 A | 3.7A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LLANB2520MKT1R0MFIXED IND 1UH 2.7A 59 MOHM SMD Taiyo Yuden |
2,065 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.7 A | 3.1A | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLANB2520KKT1R0MFIXED IND 1UH 2.5A 72 MOHM SMD Taiyo Yuden |
1,317 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.5 A | 2.7A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LLANB2520KKTR68MFIXED IND 680NH 2.9A 59 MOHM SMD Taiyo Yuden |
3,390 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 2.9 A | 3.7A | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LLANB2520MKTR47MFIXED IND 470NH 3.4A 39 MOHM SMD Taiyo Yuden |
4,002 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.2A | Unshielded | 39mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLANB2520KKT2R2MFIXED IND 2.2UH 1.5A 156MOHM SMD Taiyo Yuden |
4,837 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 1.9A | Unshielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

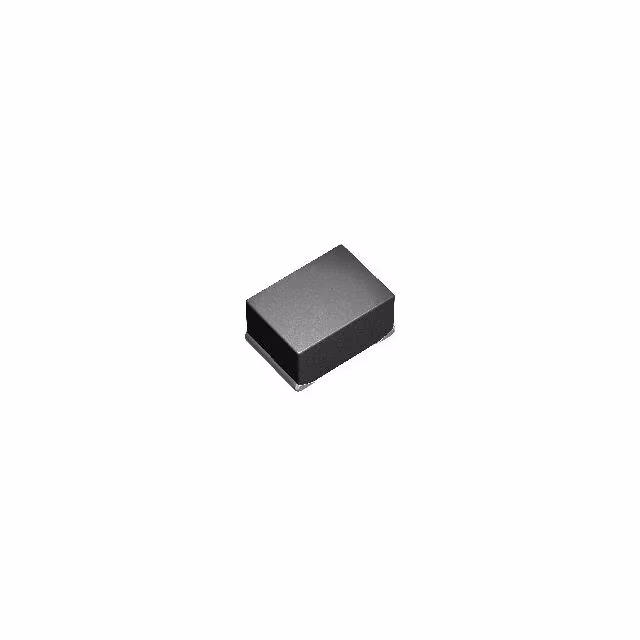

LLANB2520MKT2R2MFIXED IND 2.2UH 1.9A 117MOHM SMD Taiyo Yuden |
3,180 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLANB2520MKT3R3MFIXED IND 3.3UH 1.7A 156MOHM SMD Taiyo Yuden |
4,391 |
|
- |
LLAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.7 A | 1.8A | Unshielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
