Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLQPA201212T4R7MFIXED IND 4.7UH 520MA 650MOHM SM Taiyo Yuden |
1,427 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 520 mA | 360mA | Unshielded | 500mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

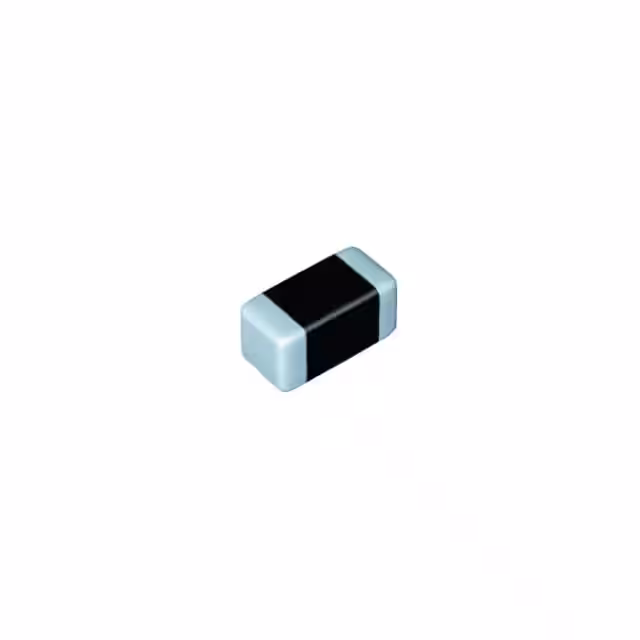

LLQPA201212T100MFIXED IND 10UH 340MA 1.56OHM SMD Taiyo Yuden |
1,621 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 340 mA | 240mA | Unshielded | 1.2Ohm | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LLQPA201212T470KFIXED IND 47UH 150MA 7.54OHM SMD Taiyo Yuden |
2,827 |
|
- |
LLQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 150 mA | 120mA | Unshielded | 5.8Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
CB2012T100K8FIXED IND 10UH 440MA 910 MOHM Taiyo Yuden |
2,063 |
|
Datasheet |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 300 mA | 190mA | Unshielded | 910mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LMQPA201212T4R7MFIXED IND 4.7 UH 0.36A 0.65 OHM Taiyo Yuden |
1,781 |
|
- |
LMQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 395 mA | 360mA | Unshielded | 500mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LMQPA201212T2R2MFIXED IND 2.2 UH 0.485A 0.429 OH Taiyo Yuden |
3,234 |
|
- |
LMQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 485 mA | 530mA | Unshielded | 330mOhm | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LBQPA201212T2R2MFIXED IND 2.2 UH 0.485A 0.429 OH Taiyo Yuden |
1,826 |
|
- |
LBQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 485 mA | 530mA | Unshielded | 330mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CBC2012T4R7M8FIXED IND 4.7 UH 0.36A 0.65 OHM Taiyo Yuden |
2,427 |
|
Datasheet |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 395 mA | 360mA | Unshielded | 500mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LBQPA201212T4R7MFIXED IND 4.7 UH 0.36A 0.65 OHM Taiyo Yuden |
1,658 |
|
- |
LBQPA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 395 mA | 360mA | Unshielded | 500mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CBC2012T2R2M8FIXED IND 2.2 UH 0.485A 0.429 OH Taiyo Yuden |
4,011 |
|
Datasheet |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 485 mA | 530mA | Unshielded | 330mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
