Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

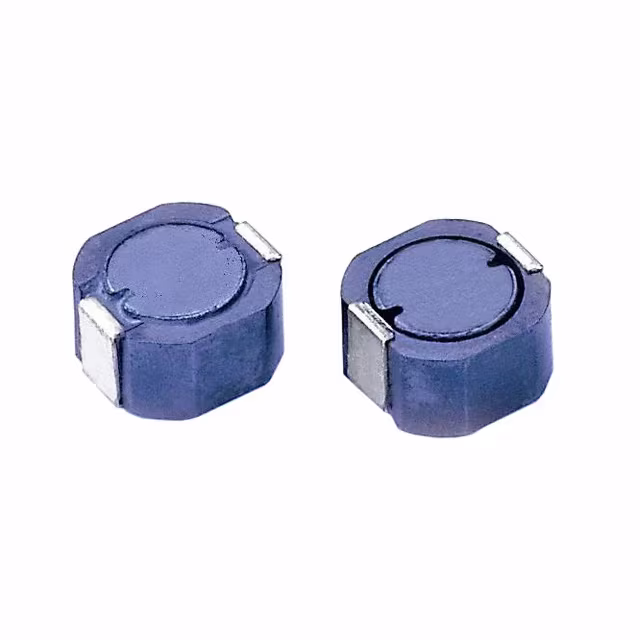

SC63CB-4R7FIXED IND 4.7UH 3.1A 33 MOHM SMD Signal Transformer |
1,593 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 3.1 A | 2.08A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-560FIXED IND 56UH 1.2A 268 MOHM SMD Signal Transformer |
3,532 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.2 A | 600mA | Shielded | 268mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-680FIXED IND 68UH 1.02A 333MOHM SMD Signal Transformer |
3,880 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.02 A | 560mA | Shielded | 333mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-6R2FIXED IND 6.2UH 2.85A 39MOHM SMD Signal Transformer |
3,806 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.2 µH | ±30% | 2.85 A | 1.84A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-820FIXED IND 82UH 910MA 436MOHM SMD Signal Transformer |
2,389 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 910 mA | 470mA | Shielded | 436mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-8R2FIXED IND 8.2UH 2.7A 45 MOHM SMD Signal Transformer |
3,529 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | 2.7 A | 1.54A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|

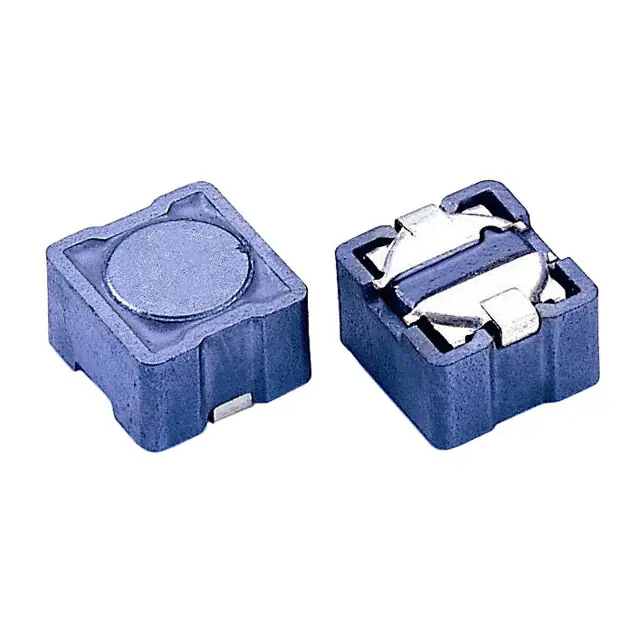

SCRH105-100FIXED IND 10UH 2.75A 69 MOHM SMD Signal Transformer |
1,477 |
|
Datasheet |
SCRH105 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.75 A | 4.8A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.236" (6.00mm) |
|
|
SCRH105-101FIXED IND 100UH 1.04A 470MOHM SM Signal Transformer |
3,798 |
|
Datasheet |
SCRH105 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.04 A | 1.4A | Shielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.236" (6.00mm) |
|
|
SCRH105-120FIXED IND 12UH 2.61A 78 MOHM SMD Signal Transformer |
1,558 |
|
Datasheet |
SCRH105 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 2.61 A | 4.2A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.236" (6.00mm) |
|
|
SCRH105-121FIXED IND 120UH 980MA 560MOHM SM Signal Transformer |
3,399 |
|
Datasheet |
SCRH105 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 980 mA | 1.23A | Shielded | 560mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | 0.236" (6.00mm) |
