Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

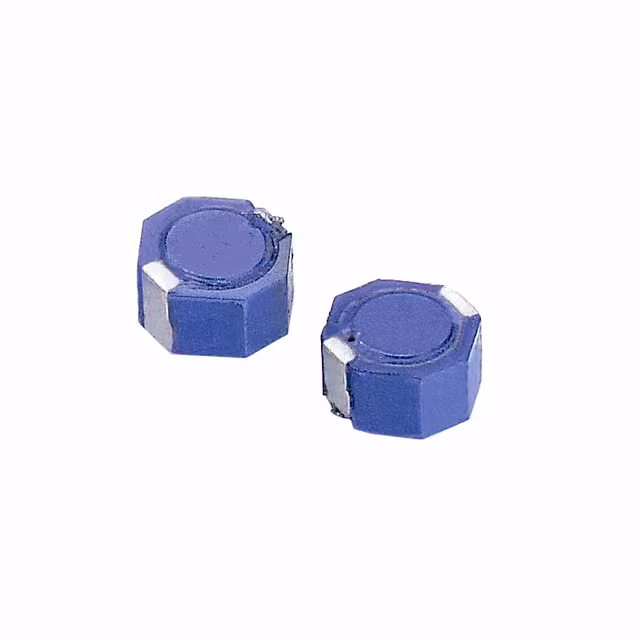

SC52LC-1R2FIXED IND 1.2UH 3.3A 44 MOHM SMD Signal Transformer |
3,286 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±30% | 3.3 A | 2.15A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-220FIXED IND 22UH 980MA 320MOHM SMD Signal Transformer |
3,418 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 980 mA | 560mA | Shielded | 320mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-2R2FIXED IND 2.2UH 3A 59 MOHM SMD Signal Transformer |
2,232 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 3 A | 1.63A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-2R5FIXED IND 2.5UH 2.1A 73 MOHM SMD Signal Transformer |
3,907 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 2.1 A | 1.34A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-330FIXED IND 33UH 780MA 455MOHM SMD Signal Transformer |
3,838 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 780 mA | 440mA | Shielded | 455mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-470FIXED IND 47UH 600MA 730MOHM SMD Signal Transformer |
2,469 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 600 mA | 360mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-680FIXED IND 68UH 480MA 1.13OHM SMD Signal Transformer |
3,833 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 480 mA | 300mA | Shielded | 1.13Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
|
SC52LC-6R8FIXED IND 6.8UH 1.6A 105MOHM SMD Signal Transformer |
2,758 |
|
Datasheet |
SC52LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.6 A | 950mA | Shielded | 105mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.079" (2.00mm) |
|
SC63CB-100FIXED IND 10UH 2.56A 50 MOHM SMD Signal Transformer |
1,290 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.56 A | 1.49A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
|
SC63CB-101FIXED IND 100UH 860MA 496MOHM SM Signal Transformer |
1,177 |
|
Datasheet |
SC63CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 860 mA | 450mA | Shielded | 496mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
