Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC1704-150FIXED IND 15UH 600MA 660MOHM SMD Signal Transformer |
1,607 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 600 mA | 400mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-151FIXED IND 150UH 190MA 6.4OHM SMD Signal Transformer |
4,842 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 150 µH | ±20% | 190 mA | 130mA | Unshielded | 6.4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-1R2FIXED IND 1.2UH 1.7A 120MOHM SMD Signal Transformer |
2,388 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±30% | 1.7 A | 1.5A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-1R5FIXED IND 1.5UH 1.5A 140MOHM SMD Signal Transformer |
4,415 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±30% | 1.5 A | 1.05A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-2R2FIXED IND 2.2UH 1.35A 150MOHM SM Signal Transformer |
1,913 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 1.35 A | 900mA | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-331FIXED IND 330UH 130MA 15 OHM SMD Signal Transformer |
3,319 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | ±20% | 130 mA | 90mA | Unshielded | 15Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-3R3FIXED IND 3.3UH 1.25A 190MOHM SM Signal Transformer |
1,859 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 1.25 A | 800mA | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|
|
SC1704-470FIXED IND 47UH 350MA 2.16OHM SMD Signal Transformer |
2,338 |
|
Datasheet |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 350 mA | 200mA | Unshielded | 2.16Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | 0.043" (1.10mm) |
|

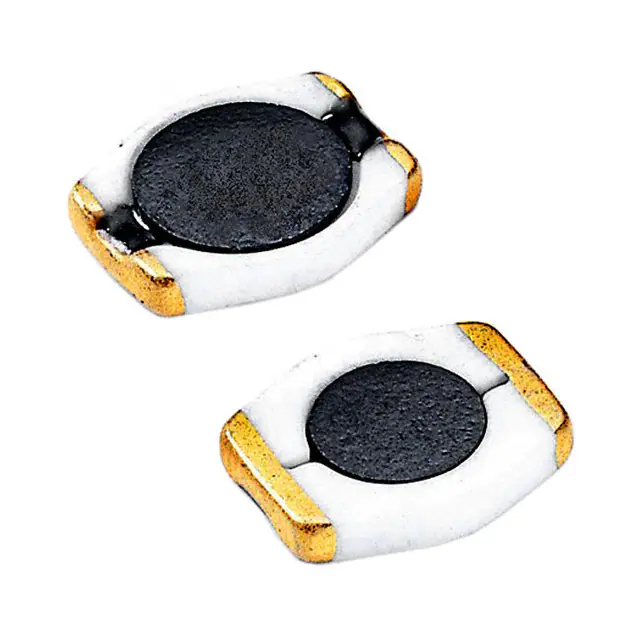

SC2506-100FIXED IND 10UH 1.1A 240 MOHM SMD Signal Transformer |
1,435 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.1 A | 1A | Unshielded | 240mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
|
|
SC2506-101FIXED IND 100UH 400MA 2 OHM SMD Signal Transformer |
1,868 |
|
Datasheet |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 µH | ±20% | 400 mA | 300mA | Unshielded | 2Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | 0.065" (1.65mm) |
