Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1A2-303015-5R6NFIXED IND 5.6UH 1.05A 195 MOHM Signal Transformer |
2,219 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 1.05 A | 950mA | Shielded | 195mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
F1A2-464612-270MFIXED IND 27.0UH 650MA 590 MOHM Signal Transformer |
4,290 |
|
Datasheet |
F1A2-4646 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 650 mA | 380mA | Shielded | 590mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1A2-303010-2R7NFIXED IND 2.7UH 1.00A 170 MOHM Signal Transformer |
1,792 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±30% | 1 A | 950mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
F1A2-303010-5R6NFIXED IND 5.6UH 750MA 295 MOHM Signal Transformer |
3,089 |
|
Datasheet |
F1A2-3030 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 750 mA | 680mA | Shielded | 295mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

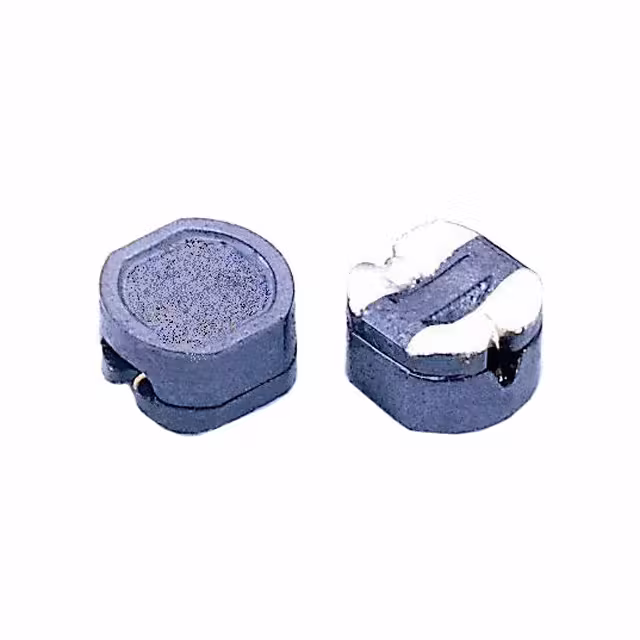

SCR63B-100FIXED IND 10UH 1.8A 140 MOHM SMD Signal Transformer |
3,910 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.8 A | 1A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
|
|
SCR63B-120FIXED IND 12UH 1.53A 160MOHM SMD Signal Transformer |
1,062 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±20% | 1.53 A | 940mA | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
|
|
SCR63B-150FIXED IND 15UH 1.37A 180MOHM SMD Signal Transformer |
4,581 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 1.37 A | 860mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
|
|
SCR63B-220FIXED IND 22UH 1.1A 320 MOHM SMD Signal Transformer |
2,718 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 1.1 A | 760mA | Shielded | 320mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
|
|
SCR63B-330FIXED IND 33UH 890MA 410MOHM SMD Signal Transformer |
2,850 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 890 mA | 610mA | Shielded | 410mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
|
|
SCR63B-680FIXED IND 68UH 570MA 820MOHM SMD Signal Transformer |
1,094 |
|
Datasheet |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±20% | 570 mA | 420mA | Shielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | 0.138" (3.50mm) |
