DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

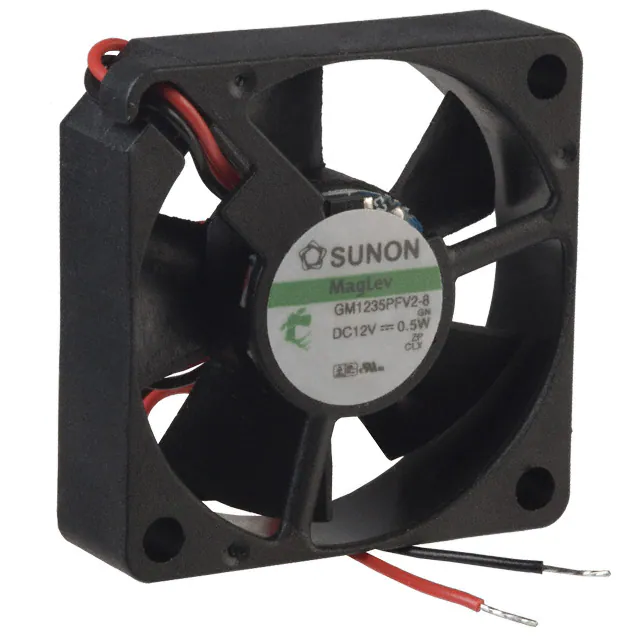

GM1235PFV2-8.GNFAN AXIAL 35X10MM 12VDC WIRE Sunon Fans |
3,977 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 22.0dB(A) | 500 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.023 lb (10.43 g) |
|

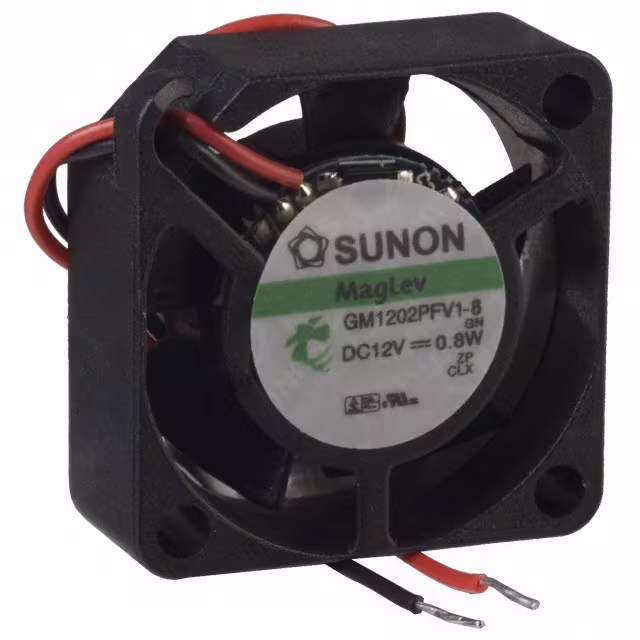

GM1202PFV1-8.GNFAN AXIAL 25X10MM 12VDC WIRE Sunon Fans |
2,645 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 23.0dB(A) | 800 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|

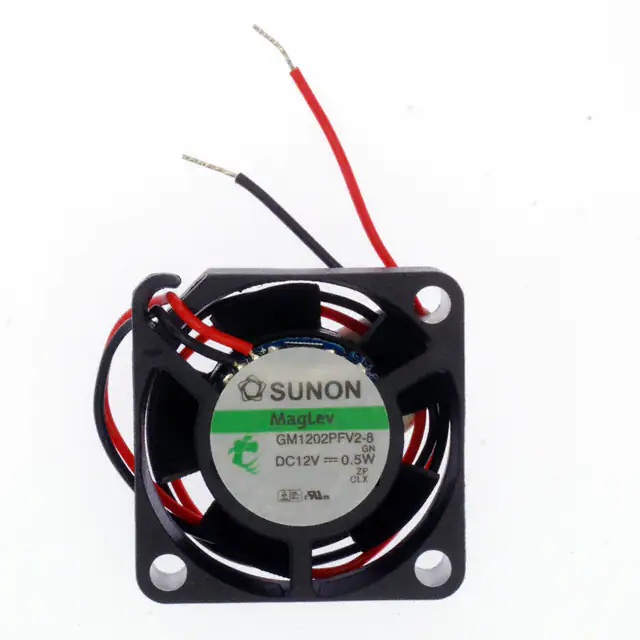

GM1202PFV2-8.GNFAN AXIAL 25X10MM 12VDC WIRE Sunon Fans |
4,295 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 16.0dB(A) | 500 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|

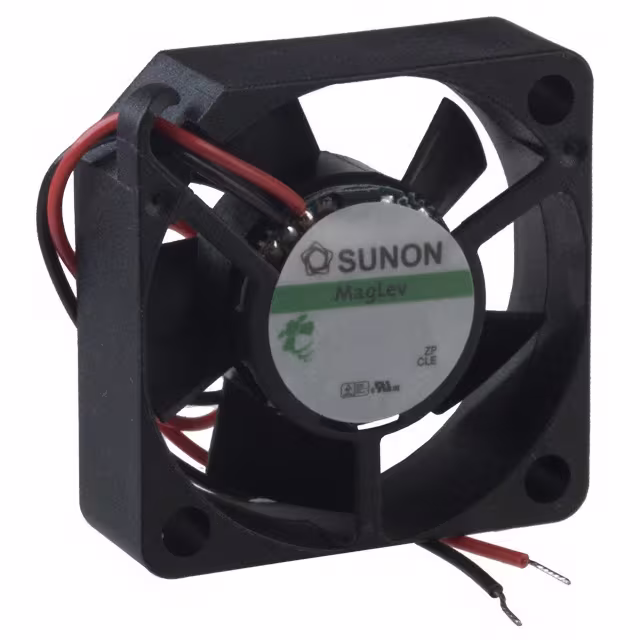

GM1203PFV1-8.GNFAN AXIAL 30X10MM 12VDC WIRE Sunon Fans |
4,538 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 23.0dB(A) | 1 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
GM1203PFV2-8.GNFAN AXIAL 30X10MM 12VDC WIRE Sunon Fans |
4,806 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 500 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
PMD1207PTB1-A.(2).GNFAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
1,266 |
|
Datasheet |
PMD | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.4 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.199 lb (90.26 g) |
|
PMD1208PTB1-A.(2).GNFAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
3,234 |
|
- |
PMD | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 4.8 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
|
PMD2408PTB1-A.(2).GNFAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
3,371 |
|
- |
PMD | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 5 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|
PMD1209PTB1-A.(2).GNFAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
2,156 |
|
Datasheet |
PMD | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 5.5 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
|
|
PMD2409PTB1-A.(2).GNFAN AXIAL 92X25MM 24VDC WIRE Sunon Fans |
3,668 |
|
Datasheet |
PMD | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 5.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.265 lb (120.2 g) |
