DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF80801B1-000U-G9H12VDC FAN 80X80MM ALARM Sunon Fans |
4,097 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 122.0 CFM (3.42m³/min) | 3.660 in H2O (911.7 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 75.1dB(A) | 42 W | 12600 RPM Front, 11300 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80801BX-000U-G9H12VDC FAN 80X80MM ALARM Sunon Fans |
4,635 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 151.5 CFM (4.24m³/min) | 5.440 in H2O (1355.0 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 80.4dB(A) | 81.6 W | 15600 RPM Front, 14100 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80801BX-000U-S9H12VDC FAN 80X80MM TACH/PWM Sunon Fans |
1,921 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 151.5 CFM (4.24m³/min) | 5.440 in H2O (1355.0 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 80.4dB(A) | 81.6 W | 15600 RPM Front, 14100 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80801B1-000U-S9H12VDC FAN 80X80MM TACH/PWM Sunon Fans |
1,064 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 122.0 CFM (3.42m³/min) | 3.660 in H2O (911.7 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 75.1dB(A) | 42 W | 12600 RPM Front, 11300 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

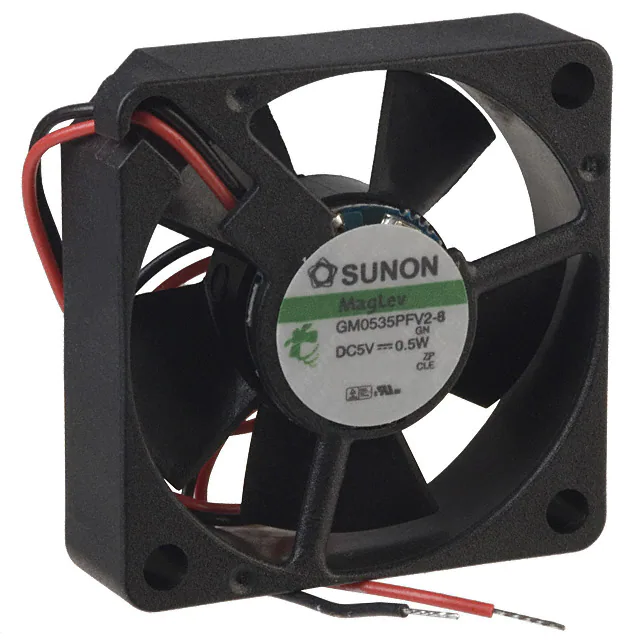

GM0535PFV2-8.GNFAN AXIAL 35X10MM VAPO 5VDC WIRE Sunon Fans |
2,376 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 22.0dB(A) | 500 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.023 lb (10.43 g) |
|

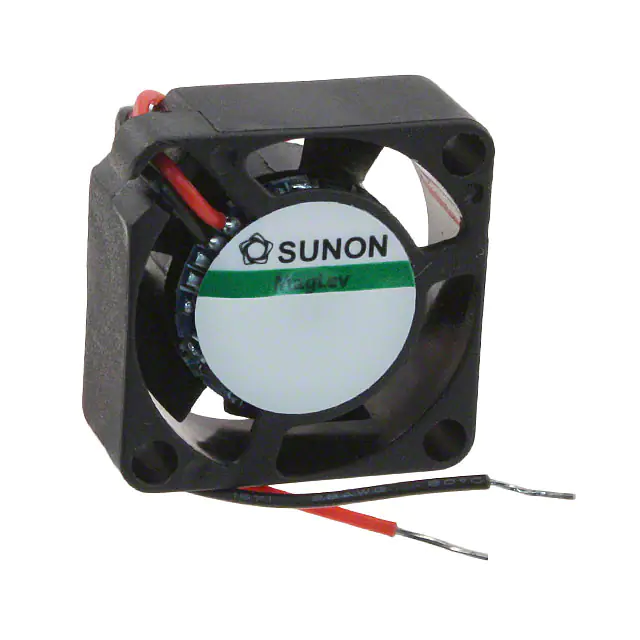

GM0501PDV1-8.GNFAN AXIAL 20X8MM VAPO 5VDC WIRE Sunon Fans |
1,787 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Vapo-Bearing™ | Tubeaxial | - | 23.0dB(A) | 900 mW | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.01 lb (4.54 g) |
|

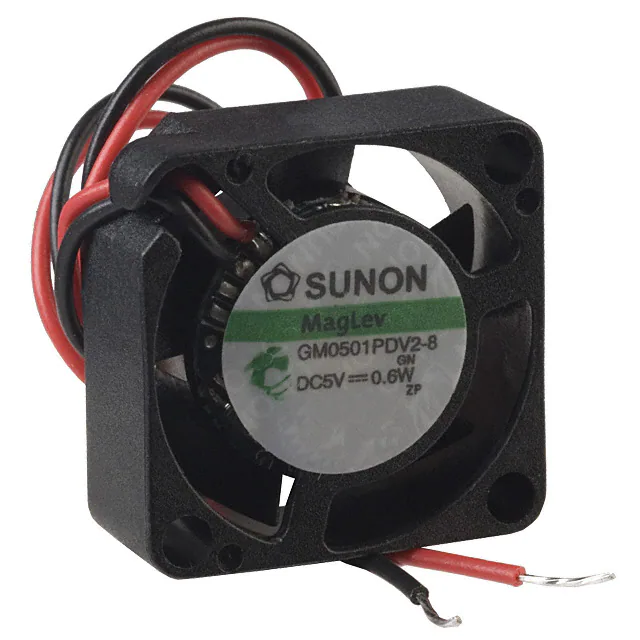

GM0501PDV2-8.GNFAN AXIAL 20X8MM VAPO 5VDC WIRE Sunon Fans |
1,305 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 21.0dB(A) | 600 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.01 lb (4.54 g) |
|

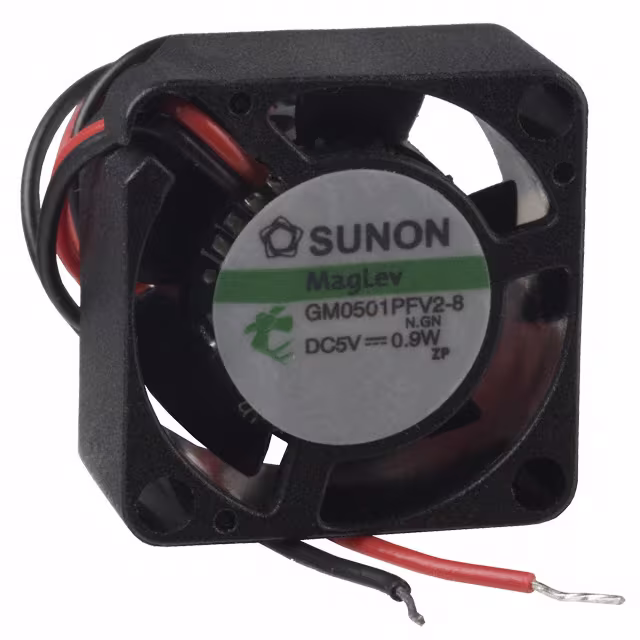

GM0501PFV2-8.N.GNFAN AXIAL 20X10MM VAPO 5VDC WIRE Sunon Fans |
4,162 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 20.0dB(A) | 900 mW | 14000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.012 lb (5.44 g) |
|

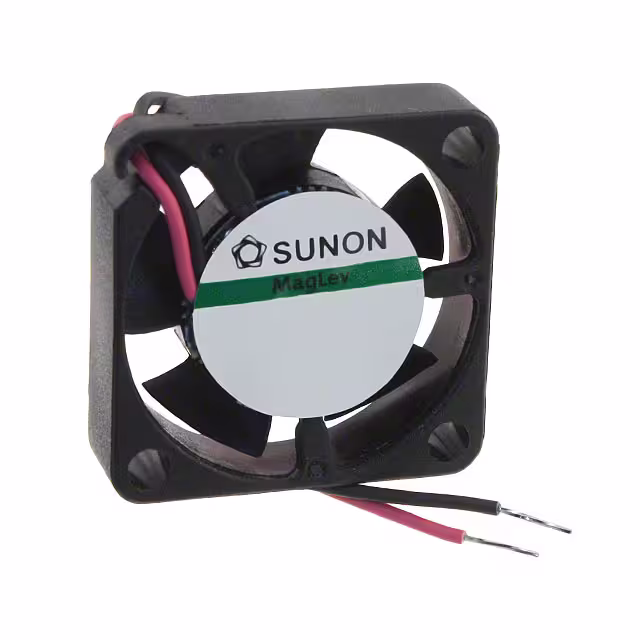

GM0502PEV1-8.N.GNFAN AXIAL 25X6.9MM 5VDC WIRE Sunon Fans |
3,895 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 3.0 CFM (0.084m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 600 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
|

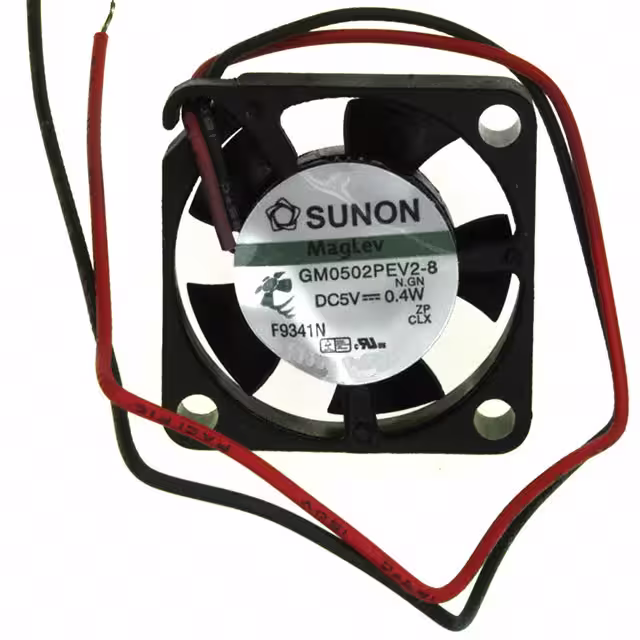

GM0502PEV2-8.N.GNFAN AXIAL 25X6.9MM 5VDC WIRE Sunon Fans |
1,989 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 6.90mm | 2.2 CFM (0.061m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 23.0dB(A) | 400 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
