DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF80251BX-1000U-S9912VDC FAN 80X25MM TACH/PWM Sunon Fans |
3,235 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.1dB(A) | 1.47 W | 3600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251BX-1000U-S9912VDC FAN 92X25MM TACH/PWM Sunon Fans |
4,684 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.9dB(A) | 1.62 W | 3400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
,PMB1212PLB2-A(2).jpg)
|
PMB1212PLB2-A (2)FAN BLOWER 120X32MM 12VDC WIRE Sunon Fans |
4,234 |
|
Datasheet |
PMB | - | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.9 CFM (1.01m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Blower | - | 53.8dB(A) | 9.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.551 lb (249.93 g) |
|
|
UB3F3-700-TCThermal Products Sunon Fans |
3,803 |
|
- |
MagLev® UB, Mighty Mini | Bulk | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.160 CFM (0.004m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 100 mW | 14000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|

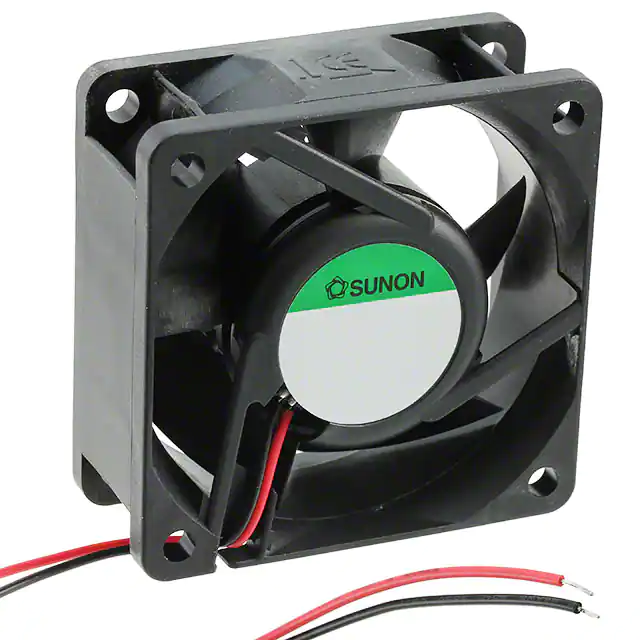

PE60251B2-000U-A99FAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
2,676 |
|
Datasheet |
PE | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 2.79 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
|
PE60251B3-000U-A99FAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
2,039 |
|
Datasheet |
PE | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 2.37 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.157 lb (71.21 g) |
|
|
PE60252B2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
1,166 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 2.91 W | 6100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
|
PE60252B3-000U-A99FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
2,714 |
|
Datasheet |
PE | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 2.5 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|

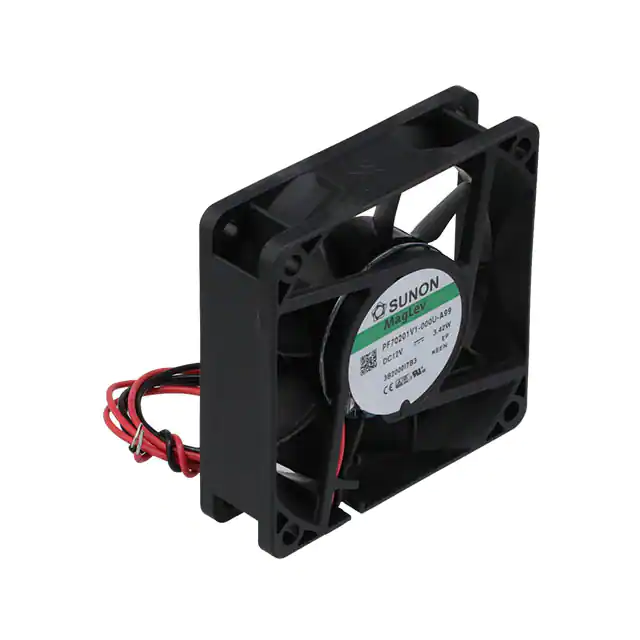

PF70201V1-000U-A99FAN AXIAL 70X20MM 12VDC WIRE Sunon Fans |
4,765 |
|
Datasheet |
MagLev® PF | Box | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 41.5dB(A) | 3.42 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.177 lb (80.29 g) |
|
|
PMD1204PQBX-A (2) FFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
3,359 |
|
- |
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.5 CFM (0.658m³/min) | 1.150 in H2O (286.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.5dB(A) | 6.8 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.088 lb (39.92 g) |
