DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF50201V3-1B00U-A99Thermal Products Sunon Fans |
1,901 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.8 CFM (0.134m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 27.5dB(A) | 900 mW | 4350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF50201V2-1B00U-A99Thermal Products Sunon Fans |
1,083 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 1.2 W | 4650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PSD1204PHB1-A(2).Z.GNFAN AXIAL 40X15MM 12VDC WIRE Sunon Fans |
2,047 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 14.0 CFM (0.392m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart | 44.2dB(A) | 2.9 W | 12000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EF80251BX-1000U-F9912VDC FAN 80X25MM TACH Sunon Fans |
3,266 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.1dB(A) | 1.47 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80251BX-1000U-H9912VDC FAN 80X25MM PWM Sunon Fans |
4,106 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 36.1dB(A) | 1.47 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80252BX-1000U-H9924VDC FAN 80X25MM PWM Sunon Fans |
1,734 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 36.1dB(A) | 1.71 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80252BX-1000U-F9924VDC FAN 80X25MM TACH Sunon Fans |
3,349 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.1dB(A) | 1.71 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

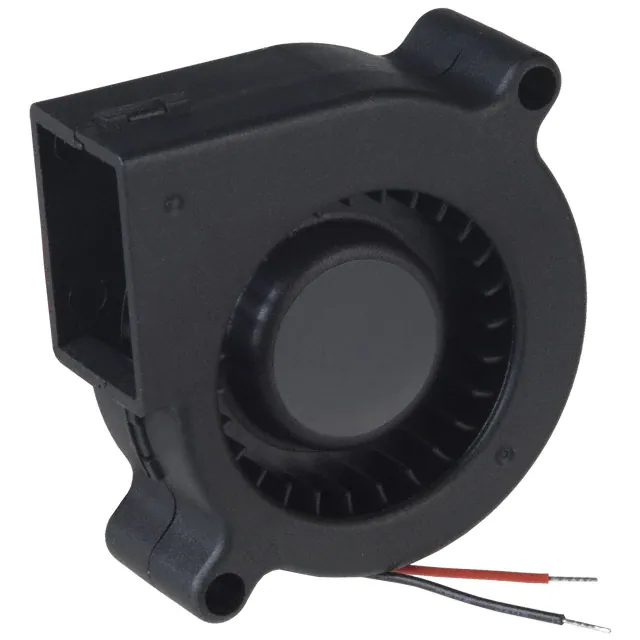

GB1205PKV1-8AY.GNFAN BLOWER 50X20MM 12VDC WIRE Sunon Fans |
2,974 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.7 CFM (0.160m³/min) | 0.660 in H2O (164.4 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Protection | 35.0dB(A) | 1.5 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.073 lb (33.11 g) |
|
|
EF92251BX-1000U-H9912VDC FAN 92X25MM PWM Sunon Fans |
4,699 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 36.9dB(A) | 1.62 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251BX-1000U-F9912VDC FAN 92X25MM TACH Sunon Fans |
1,571 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.9dB(A) | 1.62 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
