DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.GN.jpg)
|
KD1205PHB1.(2).GNFAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
4,477 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.5 W | 5800 RPM | 2 Wire Leads | - | - | - | - |
|

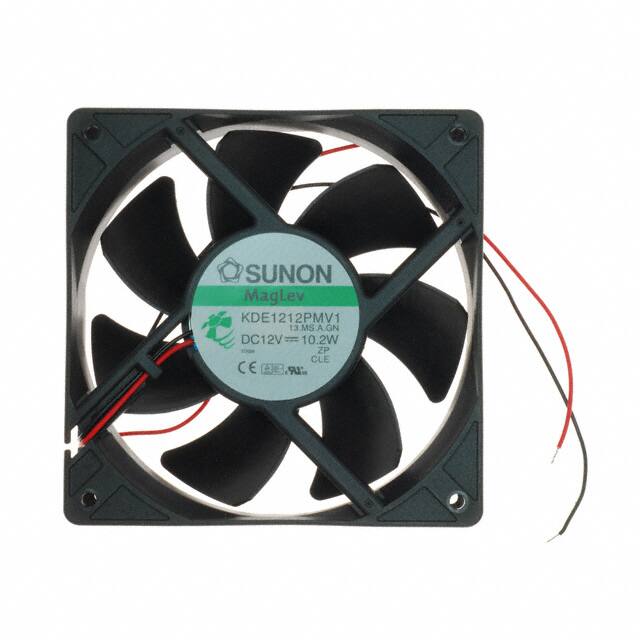

KDE1212PMV1.13.MS.A.GNFAN AXIAL 120X38MM 12VDC WIRE Sunon Fans |
3,580 |
|
Datasheet |
MagLev® KDE | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 10.2 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.661 lb (299.82 g) |
|
MF40060V1-1000U-H995VDC FAN 40X6MM PWM Sunon Fans |
1,427 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 29.3dB(A) | 0.44 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF40060V1-000U-S99FAN AXIAL 40X6.9MM 5VDC WIRE Sunon Fans |
2,641 |
|
- |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.9dB(A) | 440 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
AF40200VX-1000U-GL95VDC FAN 40X20MM ALARM IP52 Sunon Fans |
3,694 |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.5dB(A) | 0.9 W | 8600 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40201VX-1000U-GL912VDC FAN 40X20MM ALARM IP52 Sunon Fans |
2,088 |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.5dB(A) | 0.92 W | 8600 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD2406PKV1-A.GNFAN AXIAL 60X20MM 24VDC WIRE Sunon Fans |
4,155 |
|
Datasheet |
MagLev® PMD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 38.0dB(A) | 3 W | 5000 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD2406PKVX-A.GNFAN AXIAL 60X20MM 24VDC WIRE Sunon Fans |
4,716 |
|
Datasheet |
MagLev® PMD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 30.5 CFM (0.854m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 40.0dB(A) | 3.8 W | 5500 RPM | 2 Wire Leads | - | - | - | - |
|
|
MF40060V1-1000U-F995VDC FAN 40X6MM TACH Sunon Fans |
3,257 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.3dB(A) | 0.44 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF40060V1-1000U-S995VDC FAN 40X6MM TACH/PWM Sunon Fans |
4,193 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | 6.4 CFM (0.179m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.3dB(A) | 0.44 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
