DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF40101VX-1000U-SL912VDC FAN 40X10MM TACH/PWM IP52 Sunon Fans |
1,467 |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.78 W | 8000 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40100VX-1000U-SL95VDC FAN 40X10MM TACH/PWM IP52 Sunon Fans |
2,296 |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.6 W | 8000 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|

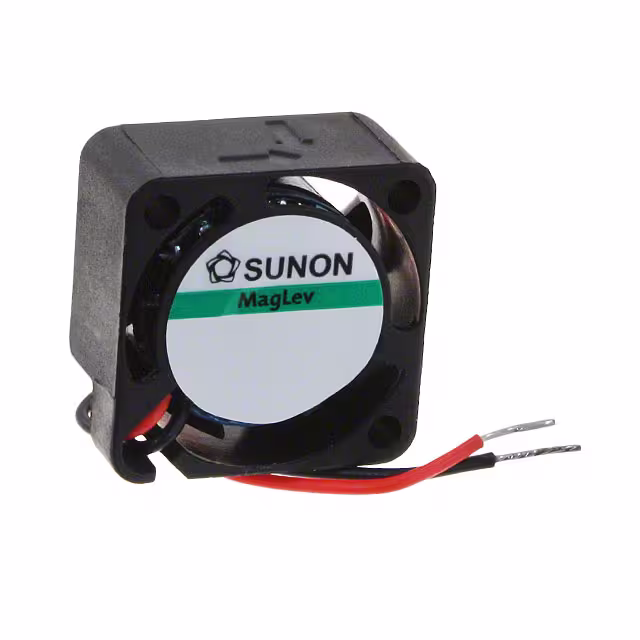

MC17080V2-000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE Sunon Fans |
2,080 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.0dB(A) | 500 mW | 15000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.01 lb (4.54 g) |
|
KDE0501PFB3-8(2).N.VFAN AXIAL 20X10MM BALL 5VDC WIRE Sunon Fans |
4,090 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 0.860 CFM (0.024m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 20.0dB(A) | 400 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.014 lb (6.35 g) |
V.jpg)
|

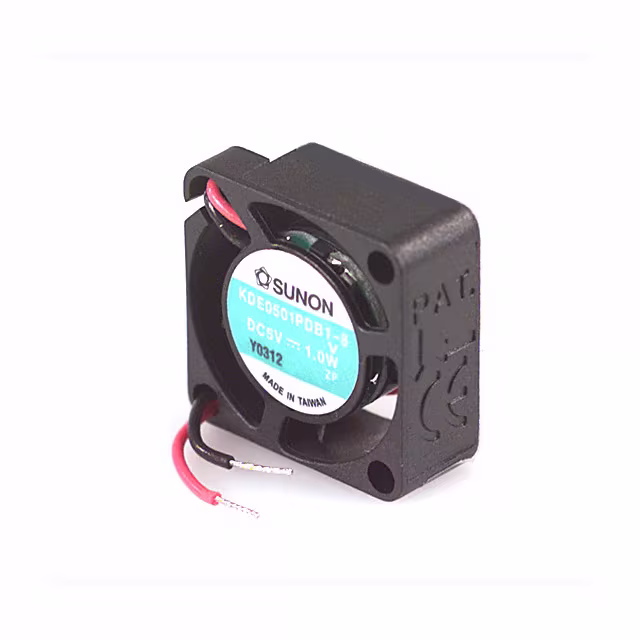

KDE0501PDB1-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE Sunon Fans |
4,460 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.9 CFM (0.053m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
V.jpg)
|

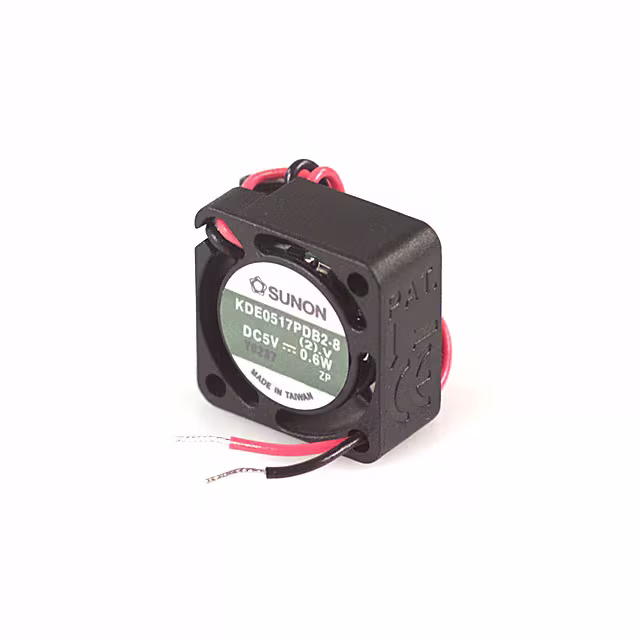

KDE0517PDB2-8(2)(V)FAN AXIAL 17X8MM BALL 5VDC WIRE Sunon Fans |
1,031 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.812 CFM (0.023m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 600 mW | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.009 lb (4.08 g) |
V.jpg)
|

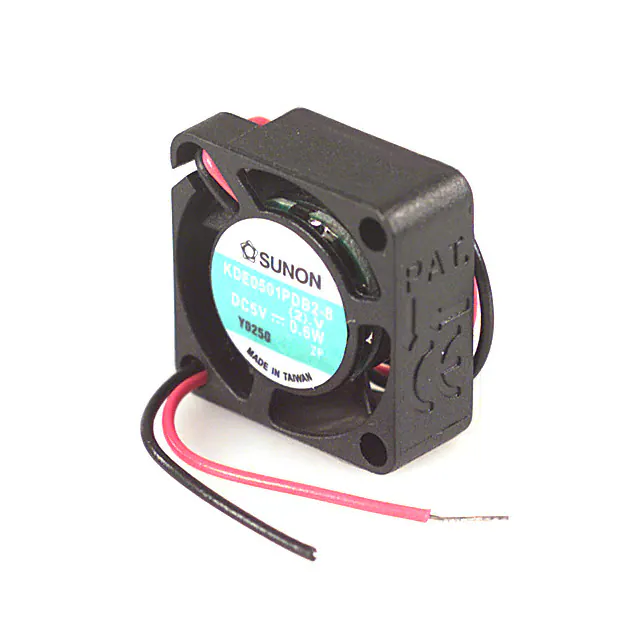

KDE0501PDB2-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE Sunon Fans |
2,776 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 600 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
(V).jpg)
|

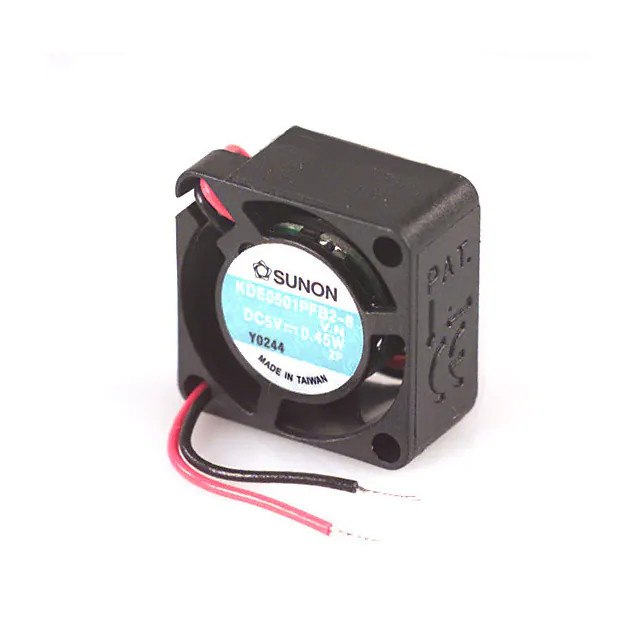

KDE0501PFB2-8.N(2)(V)FAN AXIAL 20X10MM BALL 5VDC WIRE Sunon Fans |
1,786 |
|
Datasheet |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
|
EF60251B2-1000U-Q9912VDC FAN 60X25MM ALARM/PWM Sunon Fans |
2,238 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 27.0dB(A) | 0.7 W | 4500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF60251B3-1000U-Q9912VDC FAN 60X25MM ALARM/PWM Sunon Fans |
4,241 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.0dB(A) | 0.46 W | 3400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
