DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF40100VX-1000U-GL95VDC FAN 40X10MM ALARM IP52 Sunon Fans |
4,980 |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.7dB(A) | 0.6 W | 8000 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40101VX-1000U-GL912VDC FAN 40X10MM ALARM IP52 Sunon Fans |
3,031 |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.7dB(A) | 0.78 W | 8000 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92252B1-1000U-G9924VDC FAN 92X25MM ALARM Sunon Fans |
1,481 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 1.52 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92252B2-1000U-G9924VDC FAN 92X25MM ALARM Sunon Fans |
1,184 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.9 CFM (1.26m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

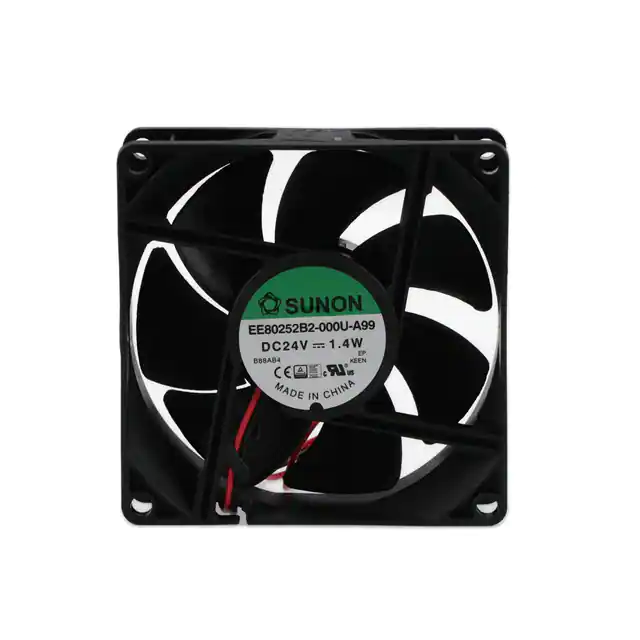

EE80252B2-000U-A99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
2,630 |
|
- |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.5 W | 2900 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | 0.167 lb (75.75 g) |
|
|
EE80252BX-000U-A99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
3,468 |
|
Datasheet |
EE | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | 1.9 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.196 lb (88.9 g) |
|
MF60151V3-B00U-A99FAN BLOWER 60X15MM 12VDC WIRE Sunon Fans |
4,139 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 3.9 CFM (0.109m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 28.8dB(A) | 480 mW | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.081 lb (36.74 g) |
|
|
MF35060V1-1000U-F995VDC FAN 35X6MM TACH Sunon Fans |
2,008 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.0dB(A) | 0.6 W | 7600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35060V2-1000U-S995VDC FAN 35X6MM TACH/PWM Sunon Fans |
4,587 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 18.3dB(A) | 0.33 W | 5800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35060V1-1000U-S995VDC FAN 35X6MM TACH/PWM Sunon Fans |
3,908 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.00mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.0dB(A) | 0.6 W | 7600 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
