DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF92251B1-000U-SE9FAN AXIAL 92X25MM 12VDC WIRE Sunon Fans |
229 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.72 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
PFE0381BX-000U-S99FAN AXIAL 140X38MM 12VDC WIRE Sunon Fans |
180 |
|
Datasheet |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 70.3dB(A) | 39.6 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.1 lbs (499.0 g) |
|
EF80252S2-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE Sunon Fans |
2,853 |
|
Datasheet |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.01 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.167 lb (75.75 g) |
|
EE40101S1-1000U-999FAN AXIAL 40X10MM 12VDC WIRE Sunon Fans |
1,343 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | - | 28.2dB(A) | 990 mW | 7300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.036 lb (16.33 g) |
|
|
MF60201V3-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE Sunon Fans |
3,391 |
|
Datasheet |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 480 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|
MF40100V1-1000U-G99FAN AXIAL 40X10MM VAPO 5VDC WIRE Sunon Fans |
2,209 |
|
Datasheet |
MagLev® MF | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.3dB(A) | 680 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.035 lb (15.88 g) |
|
EE80251S3-1000U-999FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
101 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | 1.06 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
MF80251V2-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE Sunon Fans |
1,872 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 1.11 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.167 lb (75.75 g) |
|

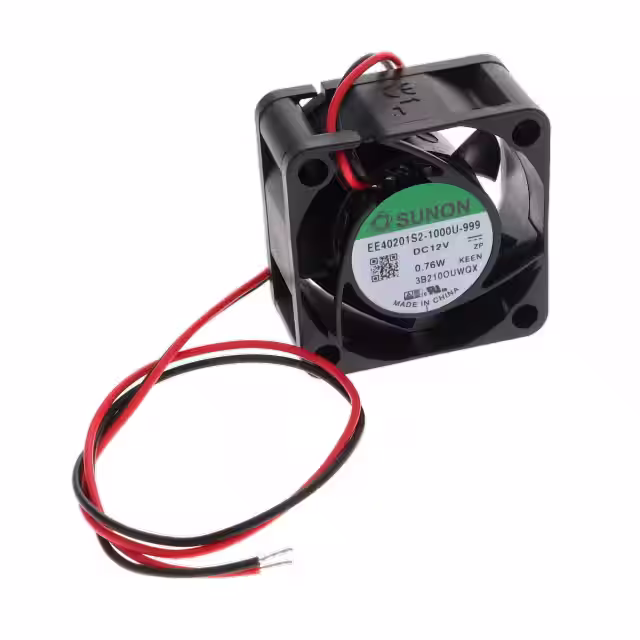

EE40201S2-1000U-999FAN AXIAL 40X20MM 12VDC WIRE Sunon Fans |
318 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 760 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|

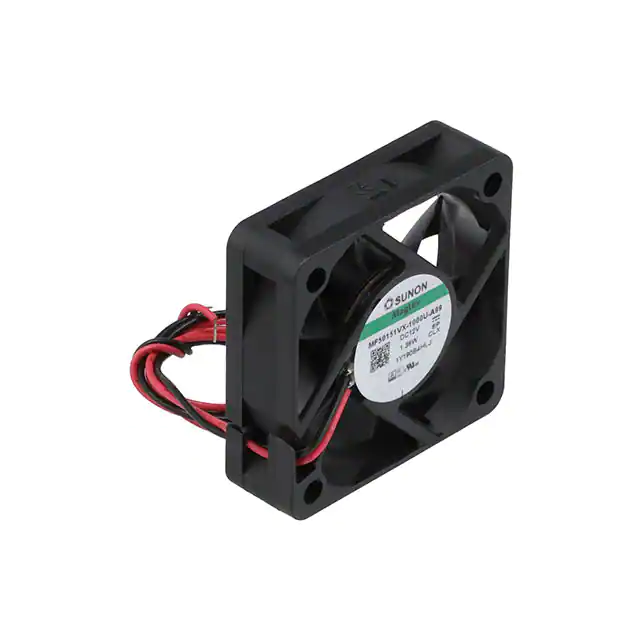

MF50151VX-1000U-A99FAN AXIAL 50X15MM 12VDC WIRE Sunon Fans |
15,523 |
|
Datasheet |
MagLev® MF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 38.1dB(A) | 1.32 W | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.073 lb (33.11 g) |
