DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF3A3-700TCFAN AXIAL 10X3MM VAPO 3VDC WIRE Sunon Fans |
931 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 290 mW | 17000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
EEC0254B1-000U-A99FAN AXIAL 120X25MM 48VDC WIRE Sunon Fans |
3,038 |
|
Datasheet |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 5.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
PMD2407PTB1-A.(2).GNFAN AXIAL 70X25MM 24VDC WIRE Sunon Fans |
196 |
|
Datasheet |
PMD | Box | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.6 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.199 lb (90.26 g) |
|
PMD2408PMB1-A.(2).GNFAN AXIAL 80X38MM 24VDC WIRE Sunon Fans |
1,143 |
|
Datasheet |
PMD | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | - | 55.2dB(A) | 9.6 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.386 lb (175.09 g) |
|
PMD2412PMB1-A(2).GNFAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
2,057 |
|
Datasheet |
PMD | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 18.2 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.728 lb (330.22 g) |
.GN.jpg)
|
PMD1209PMB1-A.(2).GNFAN AXIAL 92X38MM 12VDC WIRE Sunon Fans |
824 |
|
Datasheet |
PMD | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | - | 57.6dB(A) | 12.5 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.419 lb (190.06 g) |
|
|
PMD1208PMB1-A.(2).GNFAN AXIAL 80X38MM 12VDC WIRE Sunon Fans |
574 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | - | 55.2dB(A) | 9.1 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.386 lb (175.09 g) |
|
GF80321B1-000U-SC9FAN AXIAL 80X32MM 12VDC WIRE Sunon Fans |
166 |
|
Datasheet |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.2dB(A) | 3.72 W | 4800 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.24 lb (108.86 g) |
|
GE92252B1-000U-AE9FAN AXIAL 92X25MM 24VDC WIRE Sunon Fans |
1,531 |
|
Datasheet |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 5.28 W | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
.GN.jpg)
|

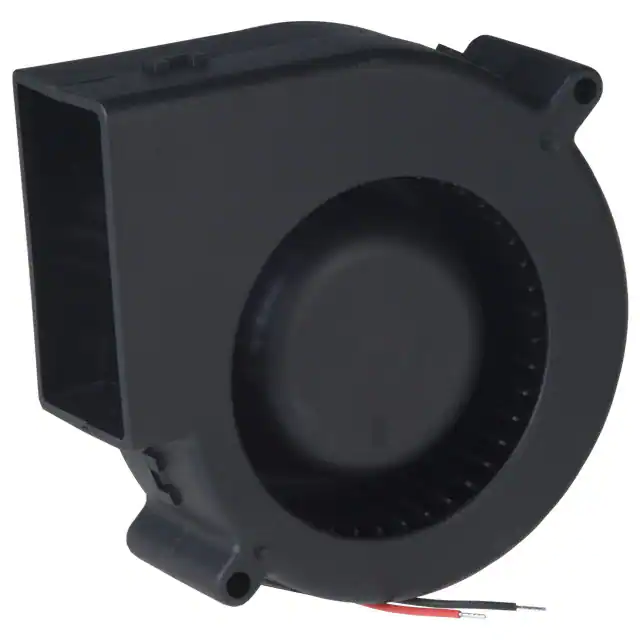

PMB1297PYB1-AY.(2).GNFAN BLOWER 97.2X33MM 12VDC WIRE Sunon Fans |
853 |
|
Datasheet |
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Auto Restart | 55.8dB(A) | 8.6 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.408 lb (185.07 g) |
