DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1212PTB3-6AFAN AXIAL 119.5X25.5MM 12VDC Sunon Fans |
3,248 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 2.4 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE2412PTB1-6AFAN AXIAL 119.5X25.5MM 24VDC Sunon Fans |
1,547 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 6 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE2412PTB3-6AFAN AXIAL 119.5X25.5MM 24VDC Sunon Fans |
4,988 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 3.1 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE1212PMB1-6AFAN AXIAL 119.5X38.5MM 12VDC Sunon Fans |
3,302 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 6.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.723 lb (327.95 g) |
|
|
KDE1212PMB3-6AFAN AXIAL 120X38MM 12VDC WIRE Sunon Fans |
4,544 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 3.2 W | 2400 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2412PMB1-6AFAN AXIAL 119.5X38.5MM 24VDC Sunon Fans |
3,815 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 6.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.719 lb (326.13 g) |
|
|
KDE2412PMB3-6AFAN AXIAL 120X38MM 24VDC WIRE Sunon Fans |
4,442 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | - | Ball | Tubeaxial | - | - | 4 W | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2412PMBX-6AFAN AXIAL 119.5X38.5MM 24VDC Sunon Fans |
1,768 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 120.0 CFM (3.36m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 46.5dB(A) | 7.2 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.719 lb (326.13 g) |
|

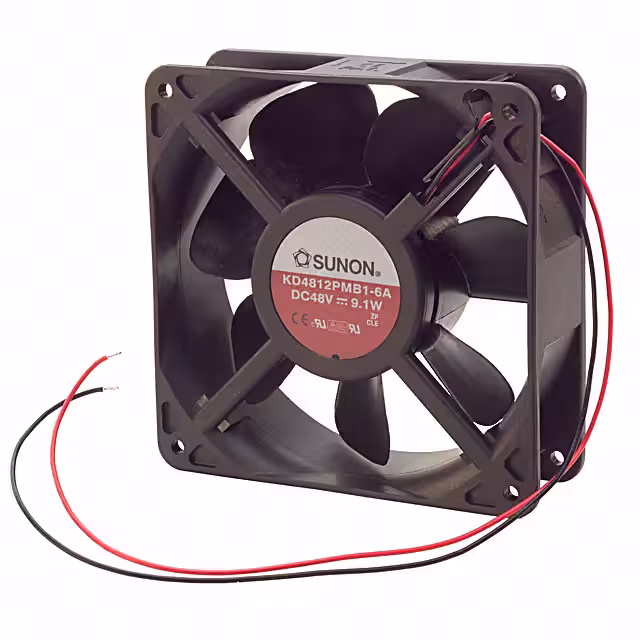

KD4812PMB1-6AFAN AXIAL 120X38MM 48VDC WIRE Sunon Fans |
2,514 |
|
- |
KD | - | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 9.1 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.705 lb (319.78 g) |
|
|
MF80152V2-1000U-A99FAN AXIAL 24VDC 80X15MM Sunon Fans |
2,981 |
|
- |
MagLev® MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 1.32 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
