DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GM0504PEV1-8.GNFAN AXIAL 40X6.9MM 5VDC WIRE Sunon Fans |
3,027 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 32.0dB(A) | 500 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
.F.GN.jpg)
|
PMD1238PQB2-A(2).F.GNFAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
1,215 |
|
Datasheet |
PMD | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.6 CFM (0.353m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 2.3 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.078 lb (35.38 g) |
|

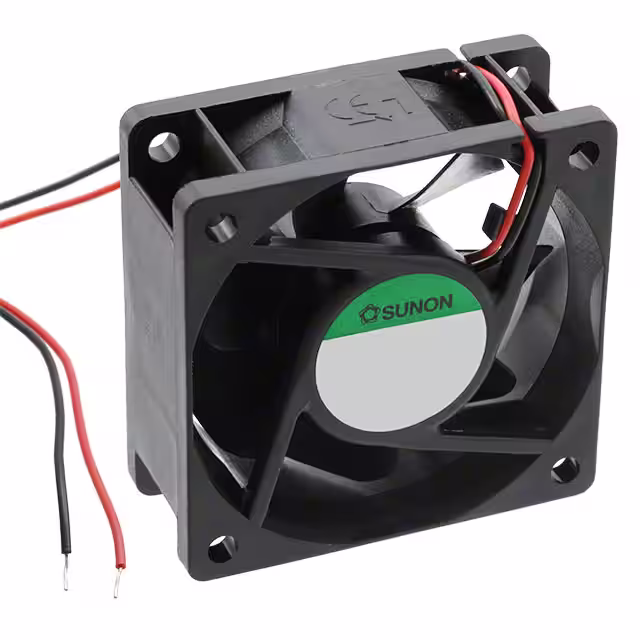

EB60252B1-000U-999FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
2,114 |
|
- |
EB | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 34.5dB(A) | 1.9 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.126 lb (57.15 g) |
|
MF80151V1-1000U-Q9912VDC FAN 80X15MM ALARM/PWM Sunon Fans |
2,733 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 32.9dB(A) | 1.5 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-Q9912VDC FAN 80X15MM ALARM/PWM Sunon Fans |
3,858 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 29.9dB(A) | 1.13 W | 3100 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V3-1000U-Q9912VDC FAN 80X15MM ALARM/PWM Sunon Fans |
2,089 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 26.5dB(A) | 0.86 W | 2800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
3249/UB5U3-500FAN BLOWER 30X3MM VAPO 5VDC WIRE Sunon Fans |
1,872 |
|
- |
Mighty Mini | Bag | Active | 5VDC | Square - 30mm L x 30mm H | 3.00mm | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | Blower | Speed Sensor (Tach) | 39.2dB(A) | 360 mW | 9500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.005 lb (2.27 g) |
|
|
MF30151V2-1000U-A99FAN AXIAL Sunon Fans |
4,022 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 19.0dB(A) | 420 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF30151V3-1000U-A99Thermal Products Sunon Fans |
3,526 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 2.7 CFM (0.076m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 7.8dB(A) | 240 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KDE1212PTB1-6AFAN AXIAL 119.5X25.5MM 12VDC Sunon Fans |
4,565 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
