DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

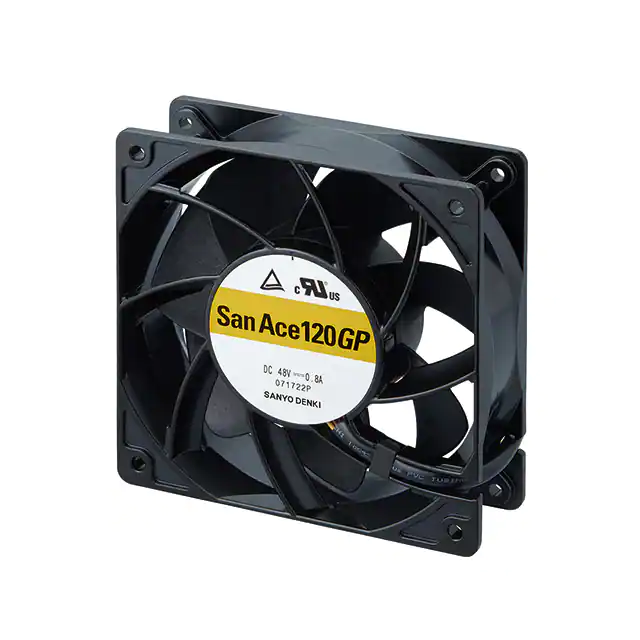

9GP1248P1G001FAN AXIAL 120X38MM 48VDC WIRE Sanyo Denki America Inc. |
2,215 |
|
Datasheet |
San Ace 120GP | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.97 lb (439.98 g) |
|

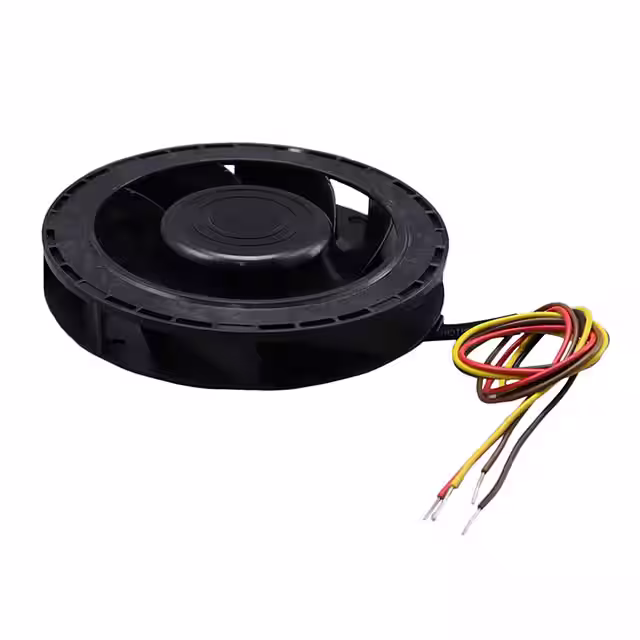

9W2TM48P4G001FAN IMP MTRZD 100X25MM 48VDC Sanyo Denki America Inc. |
4,268 |
|
Datasheet |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 25.00mm | 71.7 CFM (2.01m³/min) | 2.840 in H2O (708.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 16.8 W | 7400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9W1BM12H200397X33MM, BLOWER, 12V, SPLASH PRO Sanyo Denki America Inc. |
4,444 |
|
Datasheet |
San Ace 97W | Bulk | Active | 12VDC | - | 33.00mm | - | - | Ball | - | - | 58.0dB(A) | - | 4800 RPM | 2 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

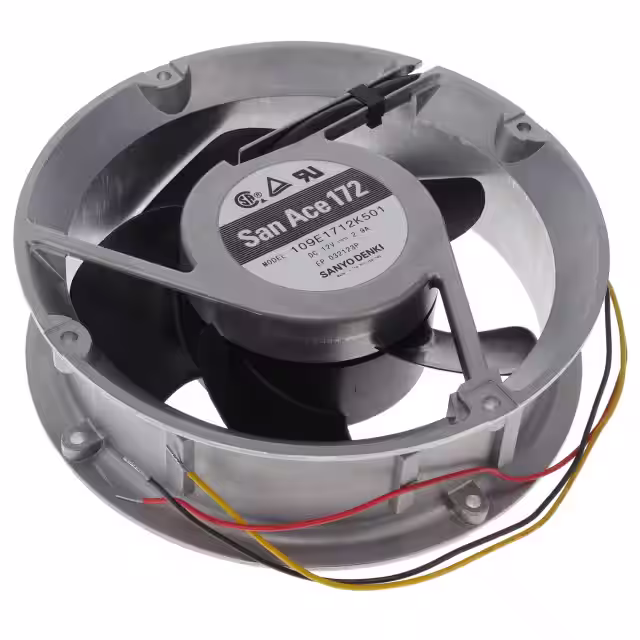

109E1712K501FAN AXIAL 172X51MM 12VDC WIRE Sanyo Denki America Inc. |
2,684 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 34.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

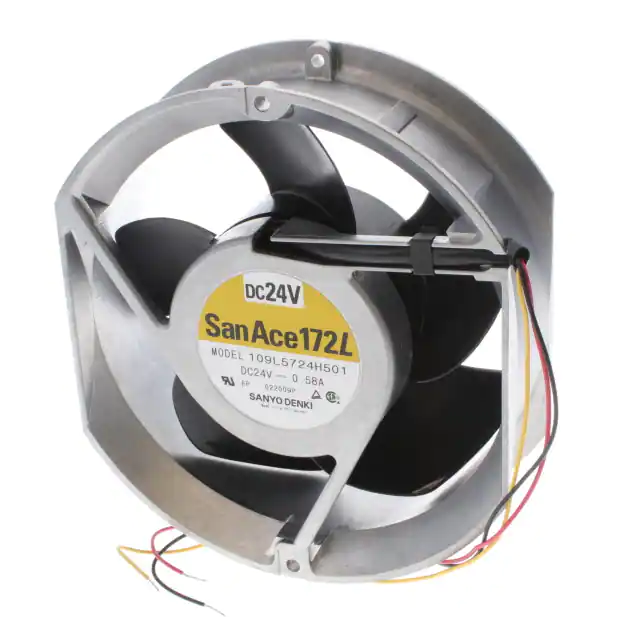

109L5724H501FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
137 |
|
Datasheet |
San Ace 172L | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 52.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

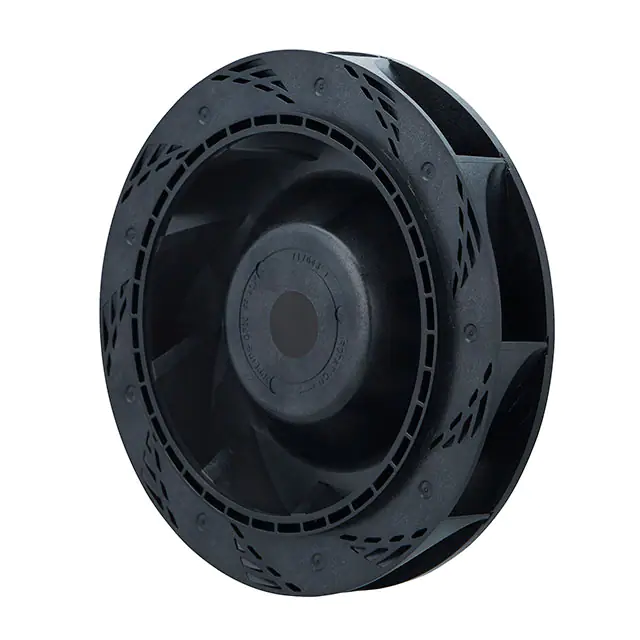

9W2TN48P1H001FAN IMP MTRZD 150X35MM 48VDC Sanyo Denki America Inc. |
3,818 |
|
Datasheet |
San Ace 150W | Box | Active | 48VDC | Round - 150mm Dia | 35.00mm | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.86 lb (390.09 g) |
|

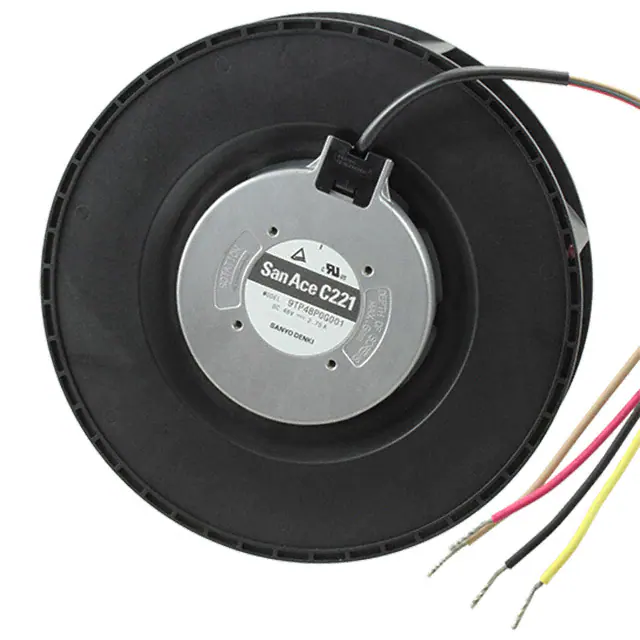

9TP48P0G001FAN IMP MTRZD 221X71MM 48VDC Sanyo Denki America Inc. |
2,431 |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Round - 221mm Dia | 71.00mm | 742.0 CFM (20.78m³/min) | 3.052 in H2O (760.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 132 W | 3650 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 2.4 lbs (1.1 kg) |
|
|
9G1212M101FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,949 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.52 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
109R0824G4D011FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
308 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.8 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109P0412H7D01FAN AXIAL 40X15MM 12VDC WIRE Sanyo Denki America Inc. |
142 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.56 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
