DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0924F4011FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
208 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 2.16 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0405H702FAN AXIAL 40X15MM BALL 5VDC WIRE Sanyo Denki America Inc. |
235 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.4 W | 7700 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|

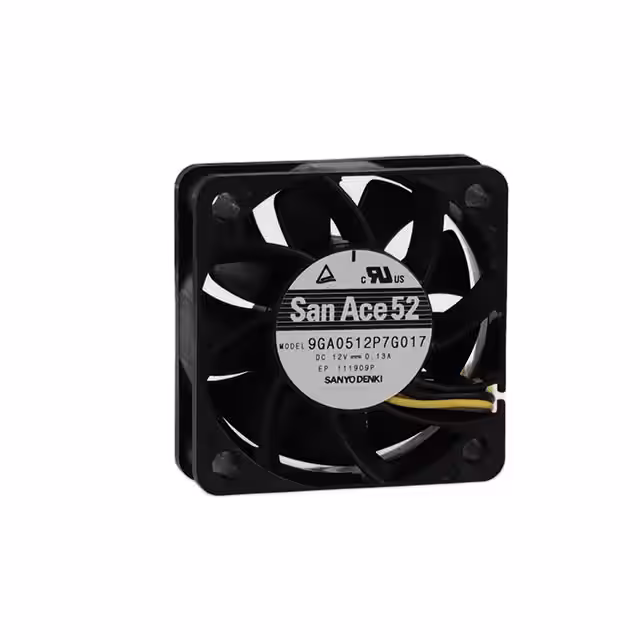

9GA0512P7G017FAN AXL 52X15MM 12VDC RECT CONN Sanyo Denki America Inc. |
231 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | - | 7800 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.089 lb (40.37 g) |
|
109P0612B702FAN AXIAL 60X15MM 12VDC WIRE Sanyo Denki America Inc. |
138 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 600 mW | 2200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0405H701FAN AXIAL 40X15MM BALL 5VDC WIRE Sanyo Denki America Inc. |
224 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.4 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
|
|
9GA0412P3H011FAN AXIAL 40X28MM 12VDC WIRE Sanyo Denki America Inc. |
196 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.1 CFM (0.535m³/min) | 1.393 in H2O (347.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 3.36 W | 14500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
109P0405H301FAN AXIAL 40X28MM BALL 5VDC WIRE Sanyo Denki America Inc. |
127 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.4 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

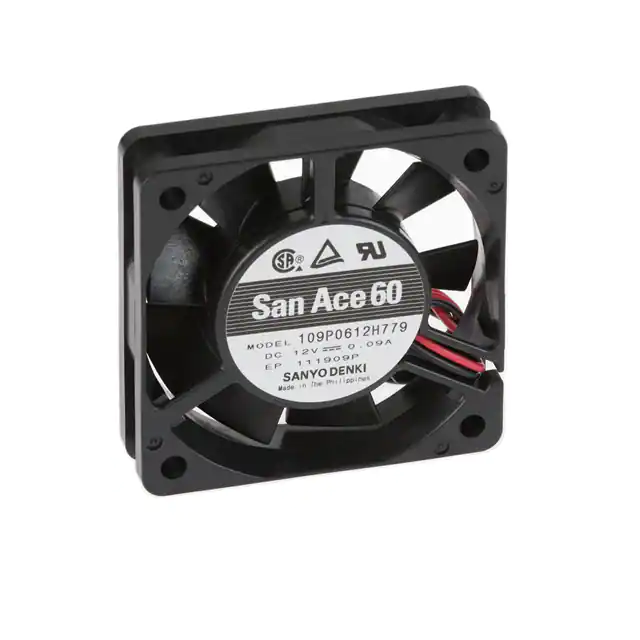

109P0612H779FAN AXIAL 60X15MM 12VDC Sanyo Denki America Inc. |
106 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | - | 4100 RPM | 2 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
9A0812G4011FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
111 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0624M4011FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
152 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
