DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

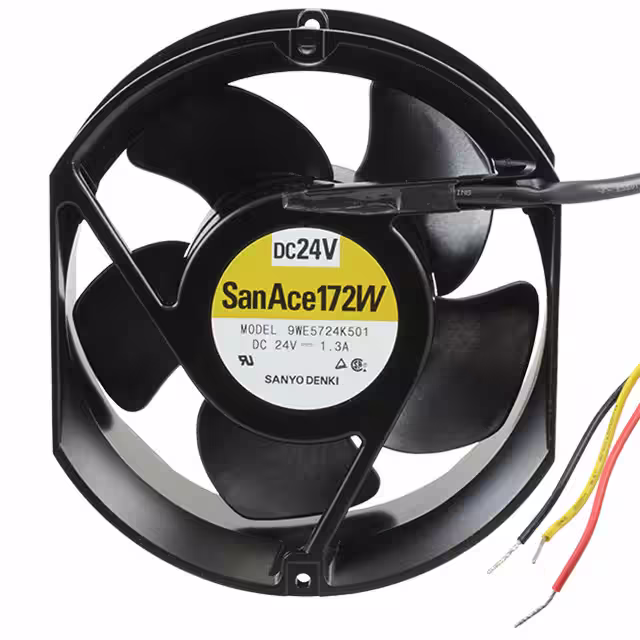

9WE5724K501FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
169 |
|
Datasheet |
San Ace 172W | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.9 lbs (861.8 g) |
|

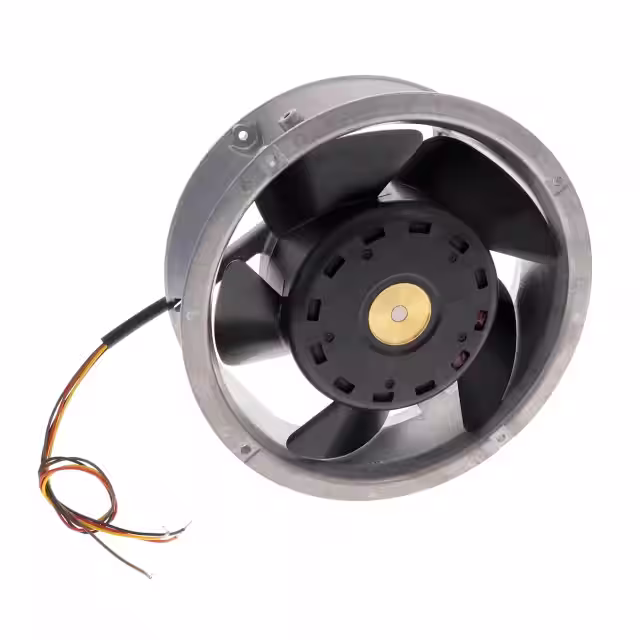

109E2024AS001FAN AXIAL 200X70MM 24VDC WIRE Sanyo Denki America Inc. |
1,996 |
|
Datasheet |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 317.8 CFM (8.90m³/min) | 1.153 in H2O (287.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 45.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | 3.9 lbs (1.8 kg) |
|

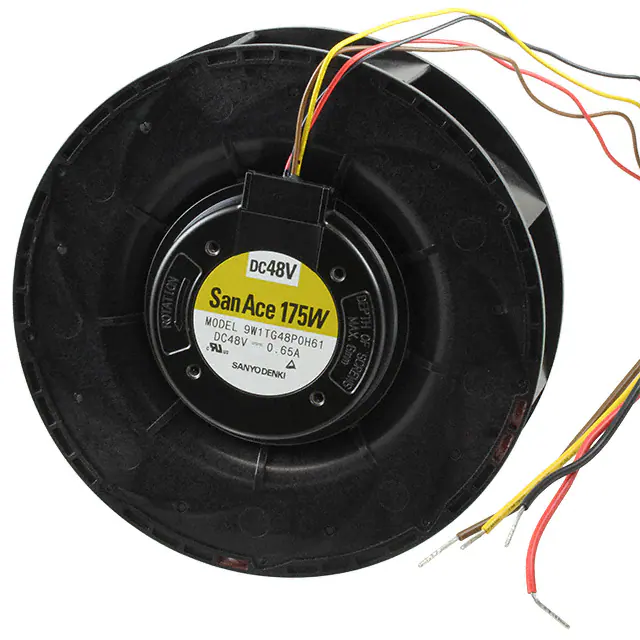

9W1TG48P0H61FAN IMP MTRZD 175X69MM 48VDC Sanyo Denki America Inc. |
3,363 |
|
Datasheet |
San Ace 175W | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 318.0 CFM (8.90m³/min) | 1.441 in H2O (358.9 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 31.2 W | 3100 RPM | 4 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (771.1 g) |
|
9EC2048A001FAN AXIAL 200X70MM 48VDC WIRE Sanyo Denki America Inc. |
1,781 |
|
Datasheet |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 70.00mm | 519.0 CFM (14.53m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 68.0dB(A) | 105.6 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.9 lbs (1.8 kg) |
|
9GP5724P5H001FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
3,740 |
|
Datasheet |
San Ace 172GP | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 434.0 CFM (12.15m³/min) | 4.017 in H2O (1000.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 120 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.9 lbs (861.8 g) |
|

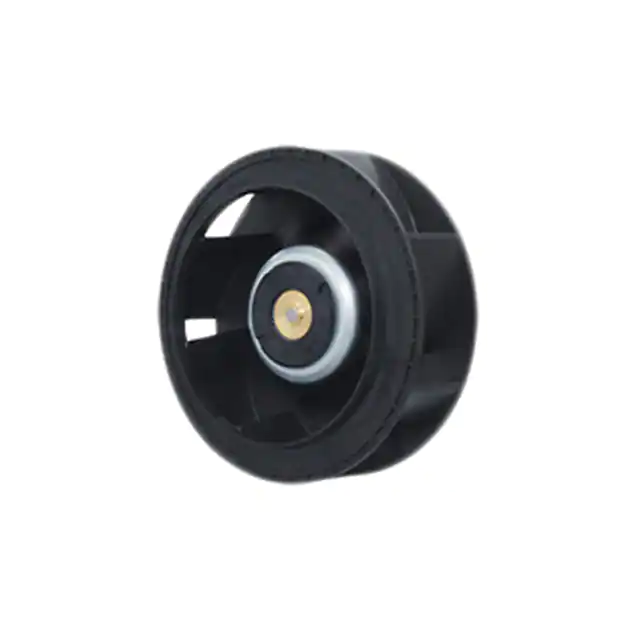

9TGA48P0G001FAN IMP MTRZD 175X69MM 48VDC Sanyo Denki America Inc. |
129 |
|
Datasheet |
San Ace C175 | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 622.0 CFM (17.42m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 168 W | 5700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.6 lbs (725.7 g) |
|
109P0512H7D01FAN AXIAL 52X15MM 12VDC WIRE Sanyo Denki America Inc. |
264 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
9A0612F401FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
158 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.08 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624H4D011FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
157 |
|
Datasheet |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
109P0412D6D01FAN AXIAL 40X20MM 12VDC WIRE Sanyo Denki America Inc. |
111 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 2.16 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
