DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

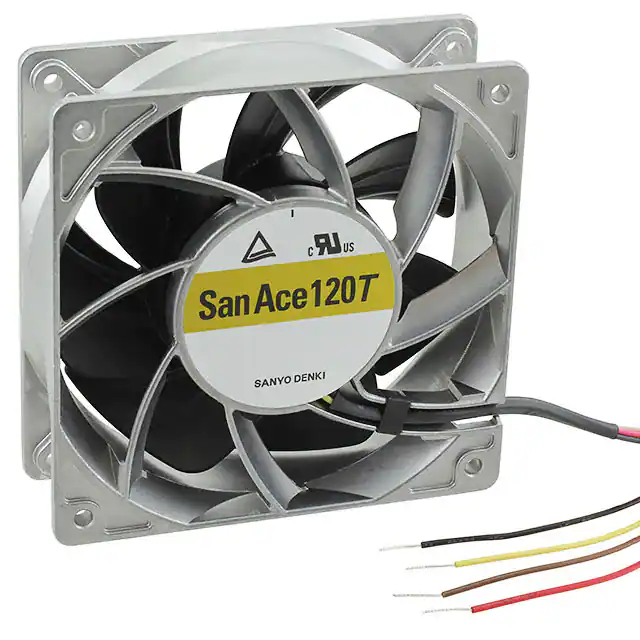

9GT1212P1S001FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,302 |
|
Datasheet |
San Ace 120T | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 26.4 W | 5600 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | cURus, TUV | 0.926 lb (420.03 g) |
|
9SG5748P5G01FAN AXIAL 172X51MM 48VDC WIRE Sanyo Denki America Inc. |
3,988 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 140 W | 8600 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|

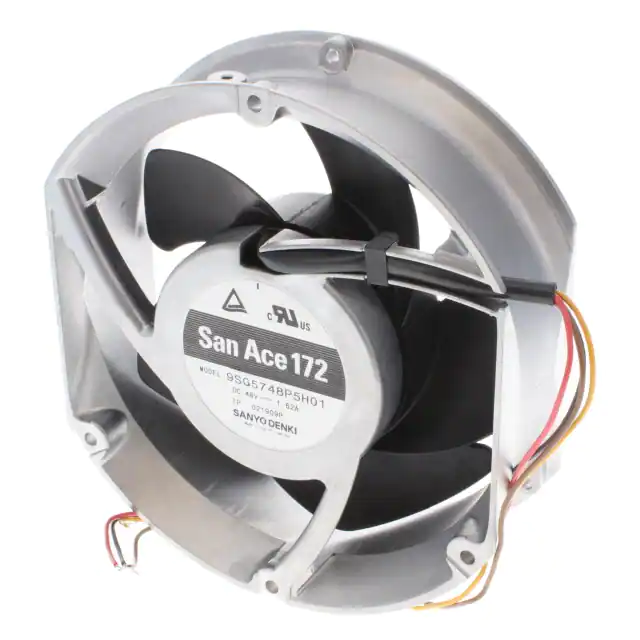

9SG5748P5H01FAN AXIAL 172X51MM 48VDC WIRE Sanyo Denki America Inc. |
2,531 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 1.62 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|

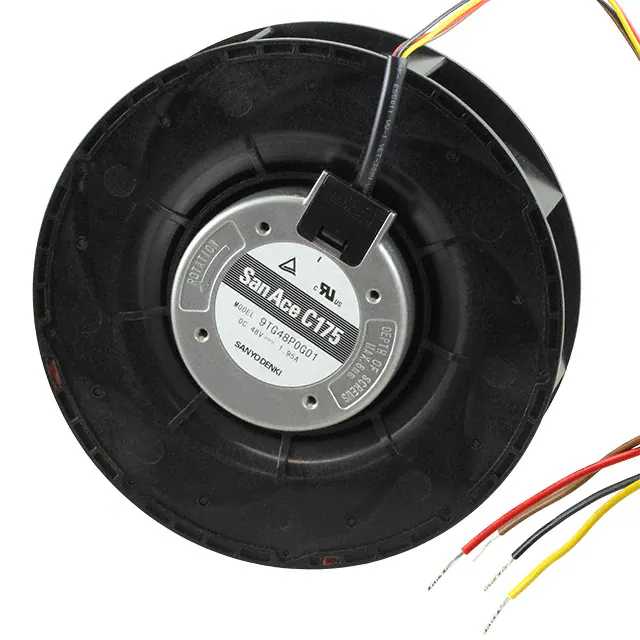

9TG48P0G01FAN IMP MTRZD 175X69MM 48VDC Sanyo Denki America Inc. |
112 |
|
Datasheet |
San Ace C175 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 494.7 CFM (13.85m³/min) | 3.550 in H2O (885.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 93.6 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (771.1 g) |
|

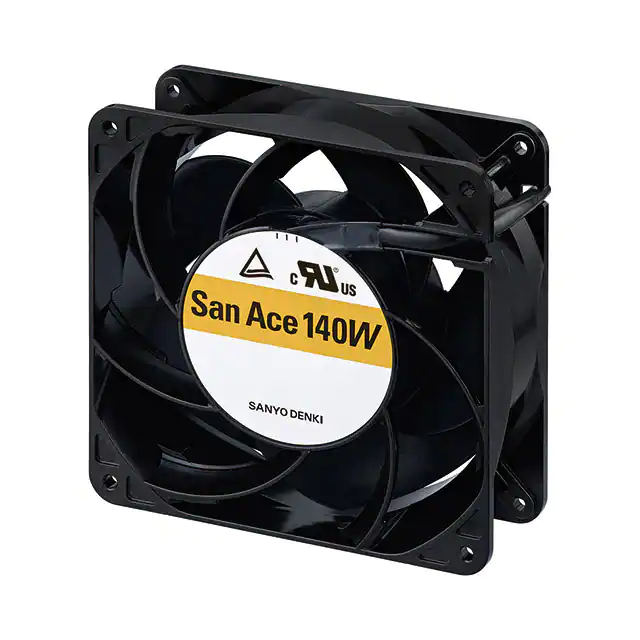

9WL1412P5G001FAN AXIAL 140X51MM 12VDC WIRE Sanyo Denki America Inc. |
3,941 |
|
Datasheet |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|

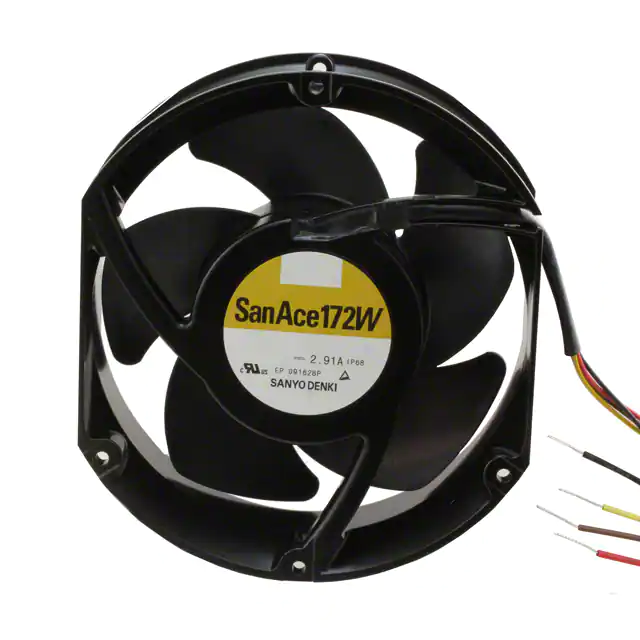

9WG5748P5G001FAN AXIAL 172X51MM 48VDC WIRE Sanyo Denki America Inc. |
272 |
|
Datasheet |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 140 W | 8600 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.9 lbs (860.0 g) |
|
9HV5724P5H001FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
508 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 434.0 CFM (12.15m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 77.0dB(A) | 120 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|

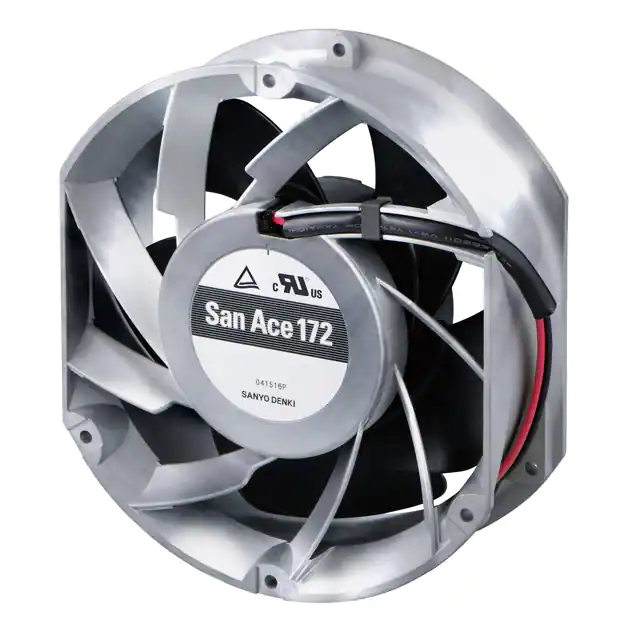

9HV5748P5G001FAN AXIAL 172X51MM 48VDC WIRE Sanyo Denki America Inc. |
2,383 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 568.0 CFM (15.90m³/min) | 6.430 in H2O (1601.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 83.0dB(A) | 240 W | 10500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

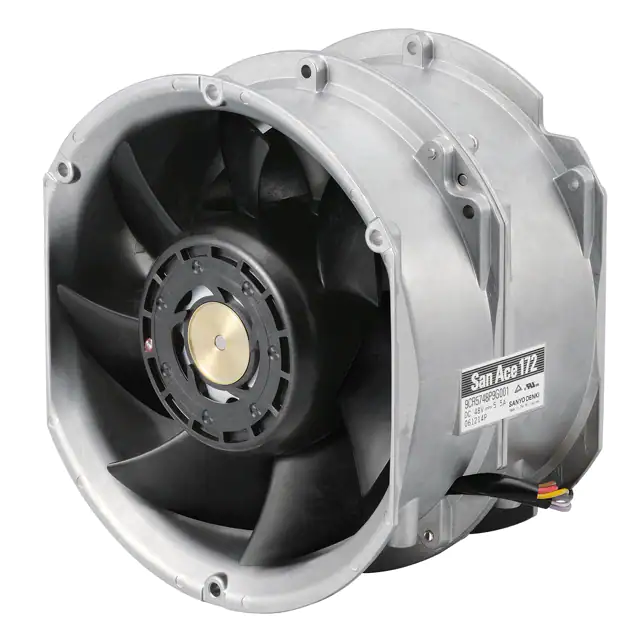

9CR5748P9G001FAN AXIAL DUAL 172X102MM 48VDC Sanyo Denki America Inc. |
114 |
|
Datasheet |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 102.0mm | 636.0 CFM (17.81m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 83.0dB(A) | 264 W | 7300 Front, 6400 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 3.5 lbs (1.6 kg) |
|
9A0824S401FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,374 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
