DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

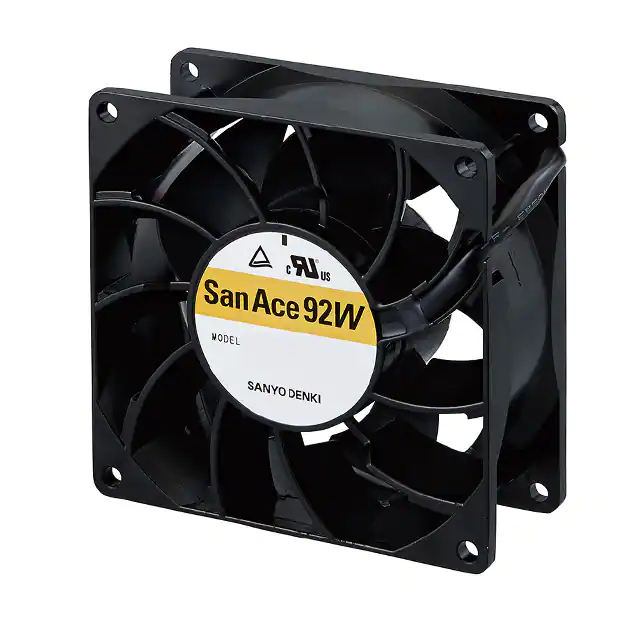

9WL0948P1H601FAN AXIAL 92X38MM 48VDC WIRE Sanyo Denki America Inc. |
4,949 |
|
Datasheet |
San Ace 92W | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 23.04 W | 9000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.661 lb (299.82 g) |
|

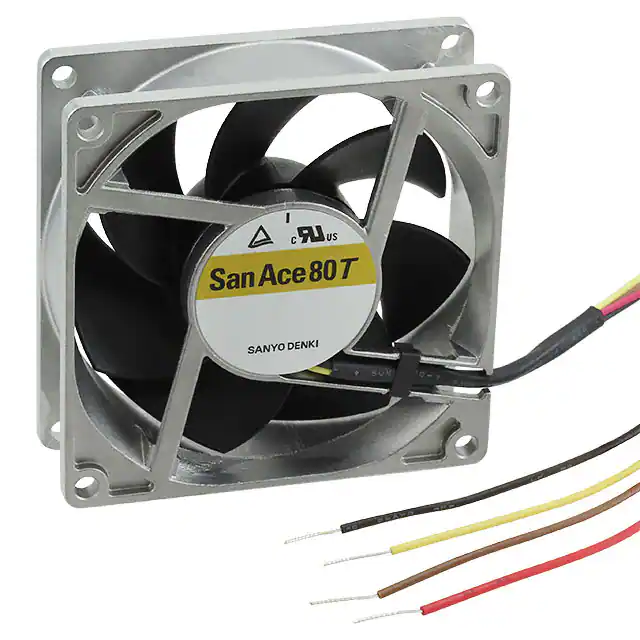

9GT0812P4S001FAN AXIAL 80X25MM 12VDC WIRE Sanyo Denki America Inc. |
681 |
|
Datasheet |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 65.7 CFM (1.84m³/min) | 0.574 in H2O (143.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 5.52 W | 6700 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
109E4724H401FAN AXIAL 172X25.4MM 24VDC WIRE Sanyo Denki America Inc. |
151 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 24 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|

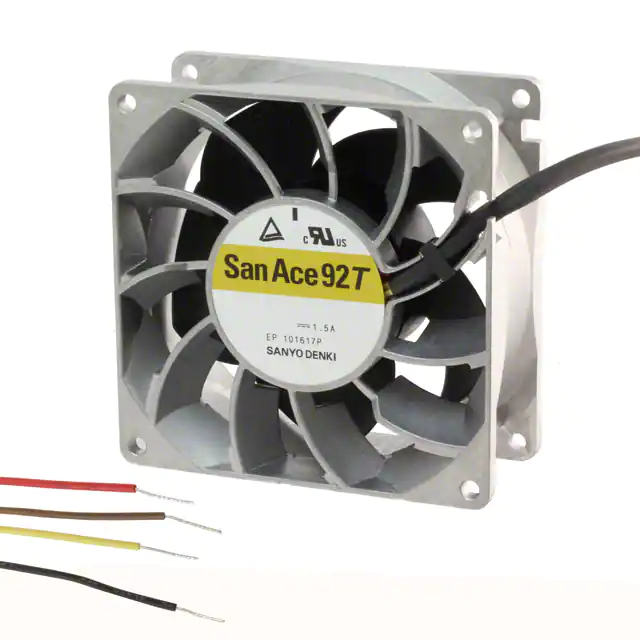

9GT0912P4J001FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
106 |
|
Datasheet |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

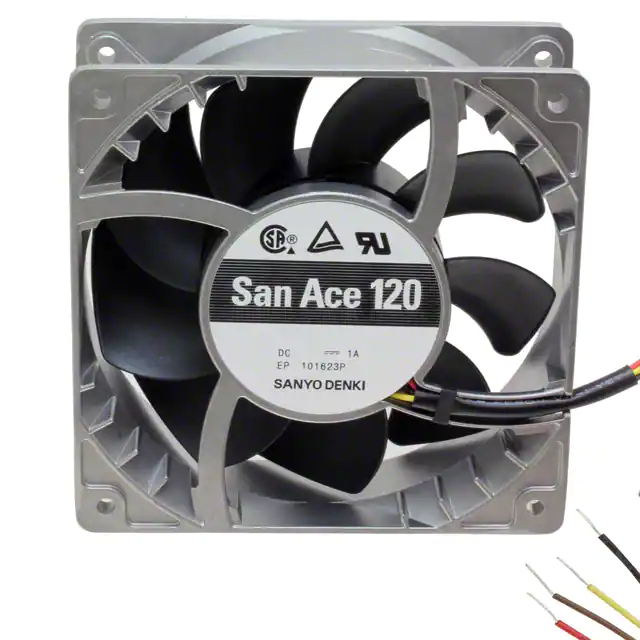

9HV1248P1G001FAN AXIAL 119X38MM 48VDC WIRE Sanyo Denki America Inc. |
3,856 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 293.0 CFM (8.20m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 96 W | 11500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1 lb (453.6 g) |
|
|
9GT0924P1M001FAN AXIAL 92X38MM 24VDC WIRE Sanyo Denki America Inc. |
337 |
|
Datasheet |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8100 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.595 lb (269.89 g) |
|
|
109E5724C501FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
2,168 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 55.2 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

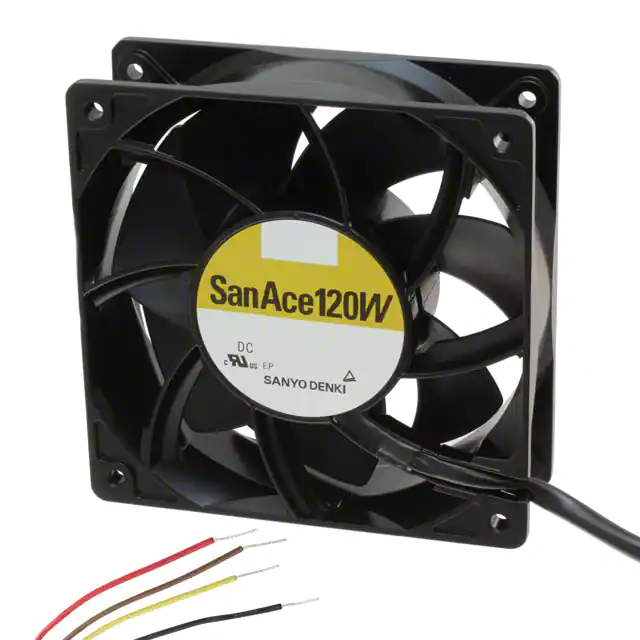

9WV1248P1J001FAN AXIAL 120X38MM 48VDC WIRE Sanyo Denki America Inc. |
109 |
|
Datasheet |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 31.2 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.97 lb (439.98 g) |
|

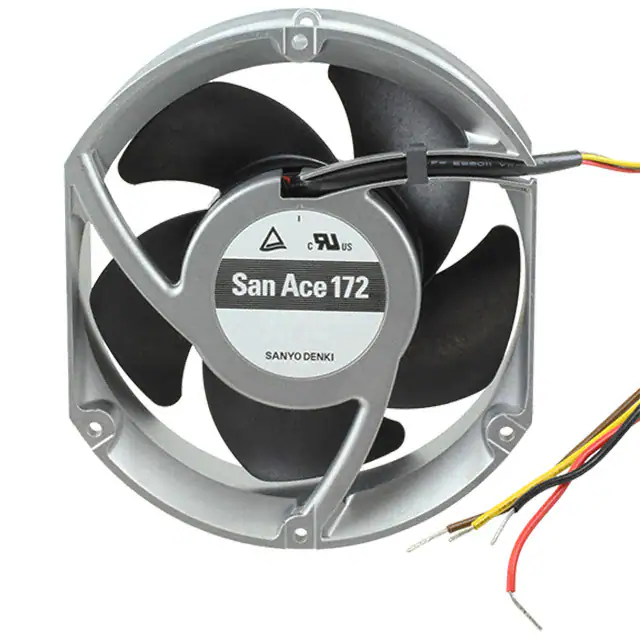

9SG5724P5H61FAN AXIAL 172X51MM 24VDC WIRE Sanyo Denki America Inc. |
1,334 |
|
Datasheet |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 67.2 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.882 lb (400.07 g) |
|

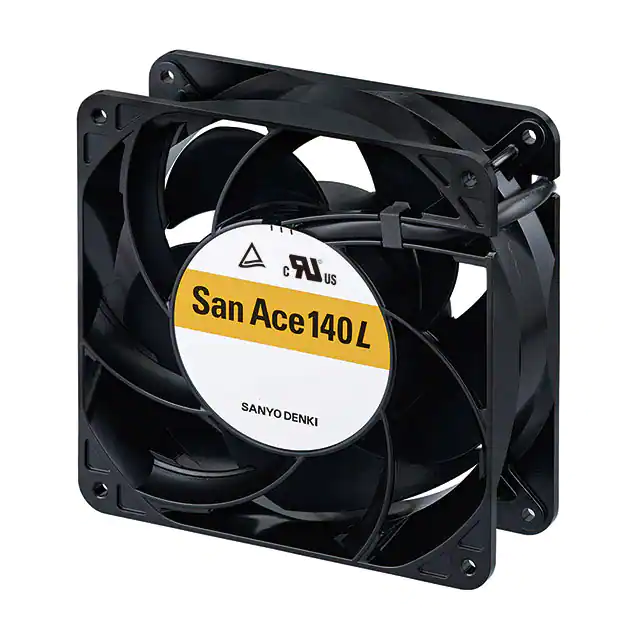

9LG1424A5001FAN AXIAL 140X51MM 24VDC WIRE Sanyo Denki America Inc. |
1,301 |
|
Datasheet |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 29.1 W | 5700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
