DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1212F101FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,999 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 3.36 W | 2280 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1224E1021FAN AXIAL 119X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,777 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|

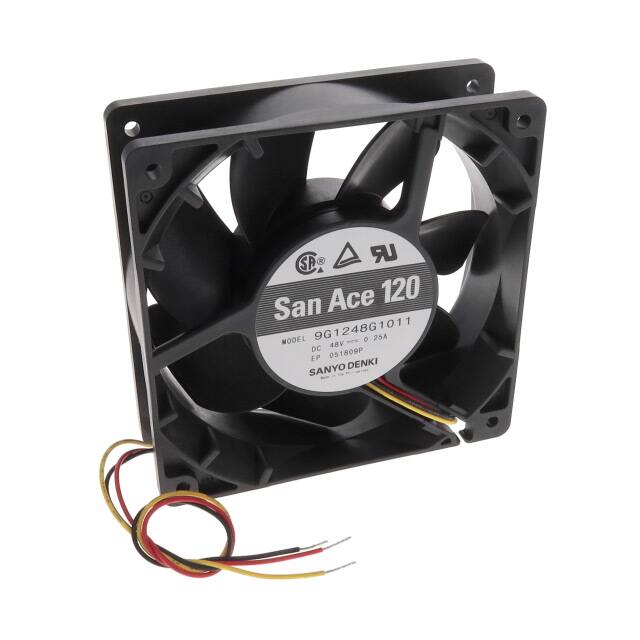

9G1248G1011FAN AXIAL 119X38MM 48VDC WIRE Sanyo Denki America Inc. |
2,776 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|

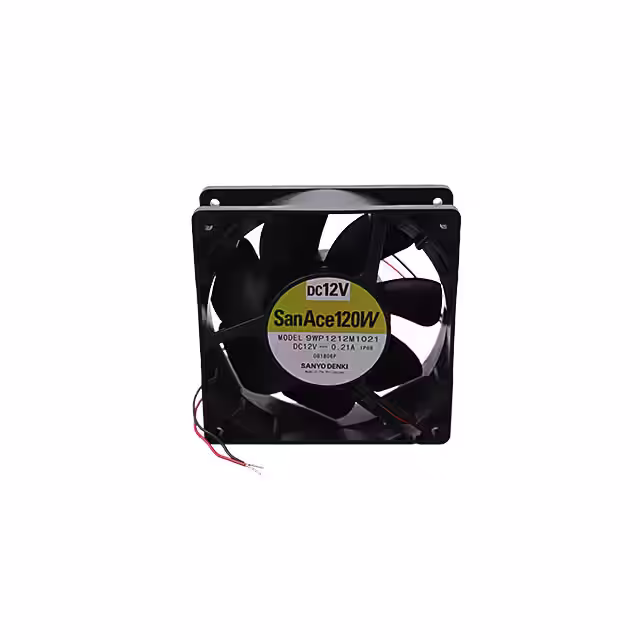

9WP1212M1021FAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
4,745 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.52 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
|
9WP1212M102FAN AXIAL 120X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,548 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.52 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
109L0612G401FAN AXIAL 60X25MM 12VDC WIRE Sanyo Denki America Inc. |
4,834 |
|
Datasheet |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|
109BD12HA2FAN BLOWER 76X30MM 12VDC WIRE Sanyo Denki America Inc. |
2,528 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection | 41.5dB(A) | 4.44 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9LG1412M1002FAN AXIAL 140X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,215 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|

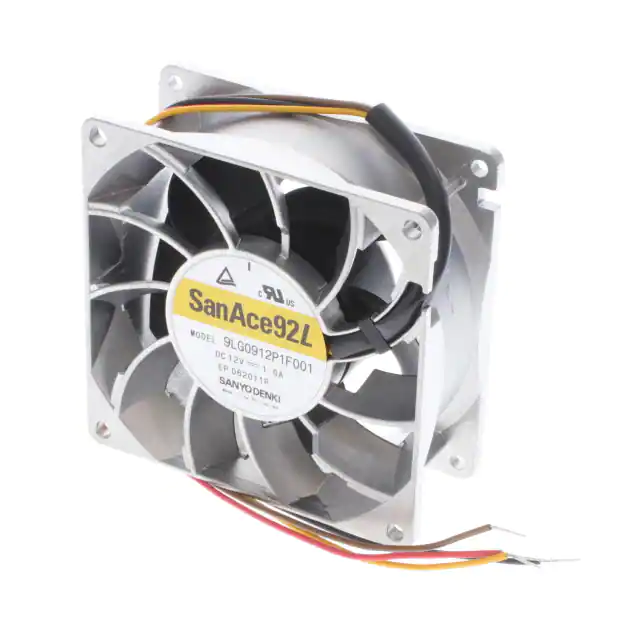

9LG0912P1F001FAN AXIAL 92X38MM 12VDC WIRE Sanyo Denki America Inc. |
1,874 |
|
Datasheet |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
|
109E1712H502FAN AXIAL 172X51MM 12VDC WIRE Sanyo Denki America Inc. |
3,108 |
|
Datasheet |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 14.4 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
