DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0924G4011FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,467 |
|
Datasheet |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.56 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0812H6D01FAN AXIAL 80X20MM 12VDC WIRE Sanyo Denki America Inc. |
3,968 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 2.52 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0412K301FAN AXIAL 40X28MM 12VDC WIRE Sanyo Denki America Inc. |
2,330 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | - | 15500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9RA0912S40011FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,585 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9GAX0412P3S025FAN AXL 40X28MM 12VDC RECT CONN Sanyo Denki America Inc. |
1,185 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | - | 25000 RPM | 4 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.117 lb (53.07 g) |
|

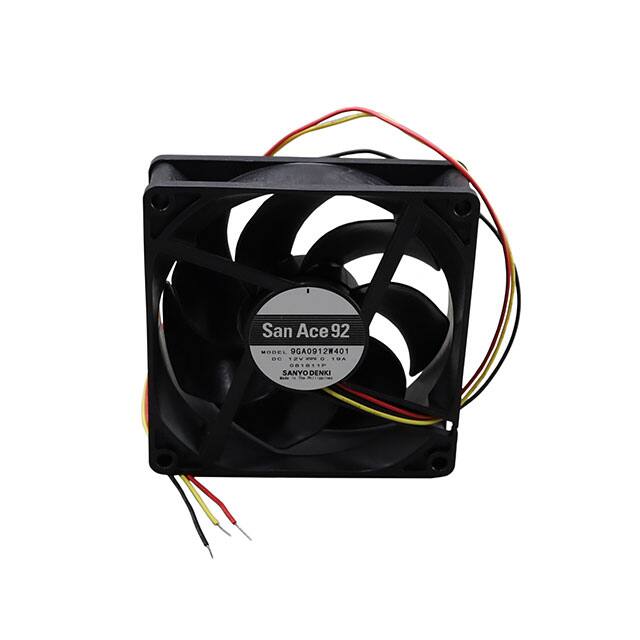

9GA0912W401FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
3,559 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.28 W | - | 3 Wire Leads | - | - | - | - |
|

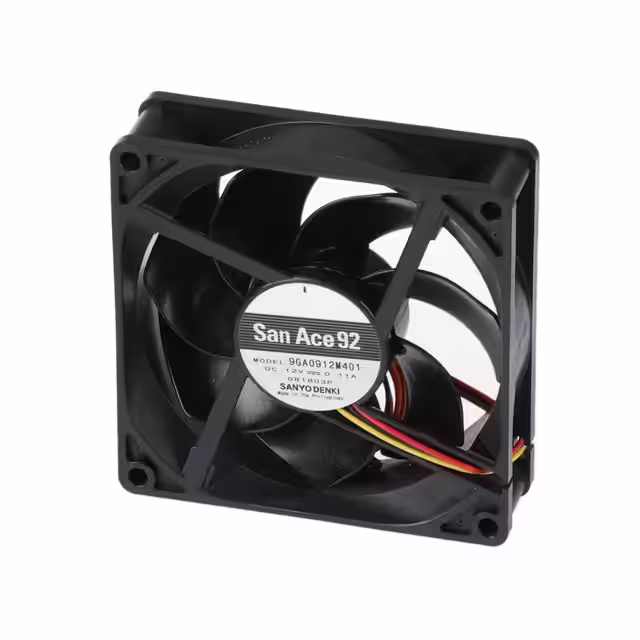

9GA0912M401FAN AXIAL 92X25MM 12VDC WIRE Sanyo Denki America Inc. |
2,927 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.32 W | - | 3 Wire Leads | - | - | - | - |
|
|
9G0924S2011FAN AXIAL 92X32MM 24VDC WIRE Sanyo Denki America Inc. |
1,644 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 4.56 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

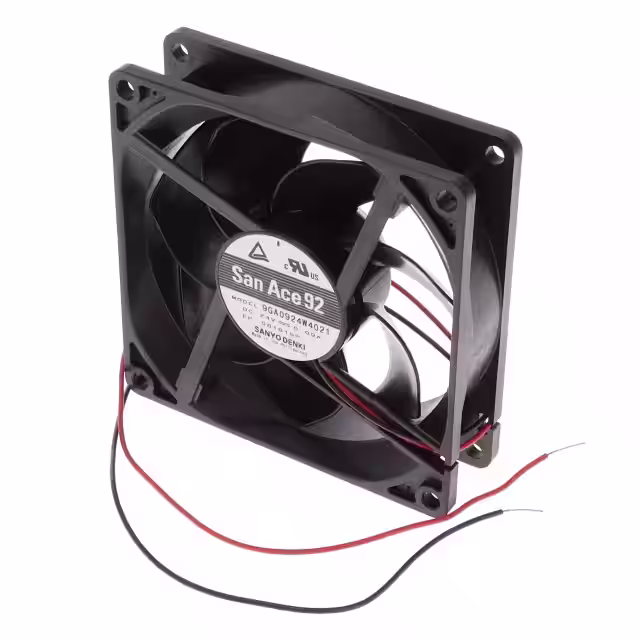

9GA0924W4021FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,887 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.16 W | - | 2 Wire Leads | - | - | - | - |
|

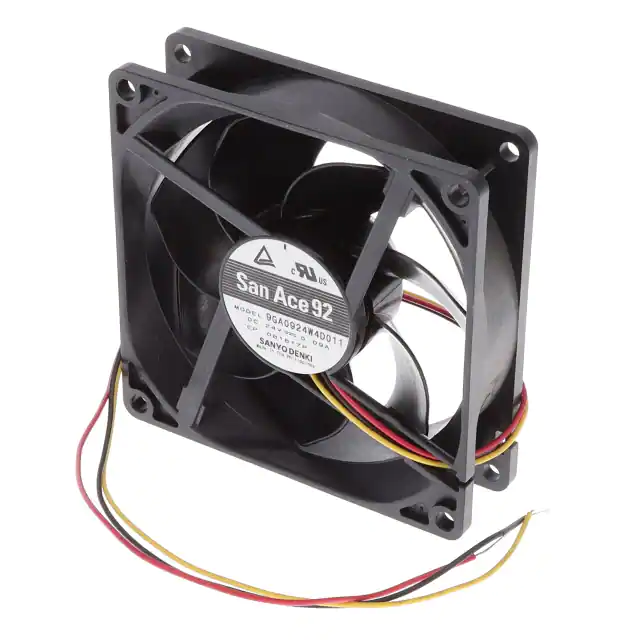

9GA0924W4D011FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
4,546 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.16 W | - | 3 Wire Leads | - | - | - | - |
