DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WF0624H6D01FAN AXIAL 60X20MM 24VDC WIRE Sanyo Denki America Inc. |
1,625 |
|
Datasheet |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.3 CFM (0.680m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 3.6 W | 6600 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.177 lb (80.29 g) |
|
|
9GV0648P1H18FAN 48VDC 60X38MM TACH/PWM CONN Sanyo Denki America Inc. |
3,387 |
|
- |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | - | 14500 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9G1224H1H01120X38MM 24V,HIGH PERF. DC LOW S Sanyo Denki America Inc. |
3,307 |
|
- |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | - | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9RA0924P1G001FAN AXIAL 92X38MM 24VDC TACH PWM Sanyo Denki America Inc. |
2,864 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 11.5 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0912P1G001FAN AXIAL 92X38MM 12VDC TACH PWM Sanyo Denki America Inc. |
4,632 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 11.5 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

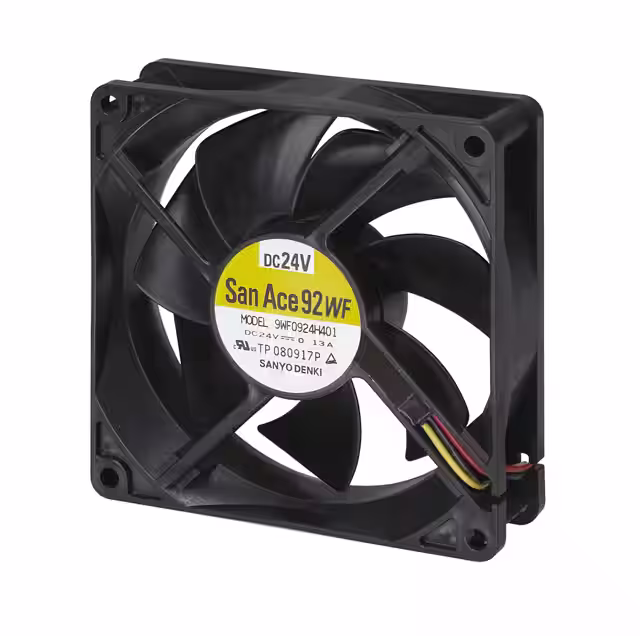

9WF0924H401FAN AXIAL 92X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,123 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB(A) | 3.12 W | 3900 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.264 lb (119.75 g) |
|
|
9GV0824G1D0180X38MM 24V,GUIDE VANE DC LCKRTR Sanyo Denki America Inc. |
1,437 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 65.0dB(A) | - | 10200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1224E1001120X38MM 24VDC TACH Sanyo Denki America Inc. |
4,353 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5.8 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224G1D001120X38MM 24VDC LCKRTRSNS Sanyo Denki America Inc. |
3,338 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA1212G10011120X38MM 12VDC RBLS TACH Sanyo Denki America Inc. |
2,630 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.4 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
