DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0612P1J031FAN AXIAL 60X38MM 12VDC WIRE Sanyo Denki America Inc. |
3,636 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.290 in H2O (820.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WF0824S4D01FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
1,759 |
|
Datasheet |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

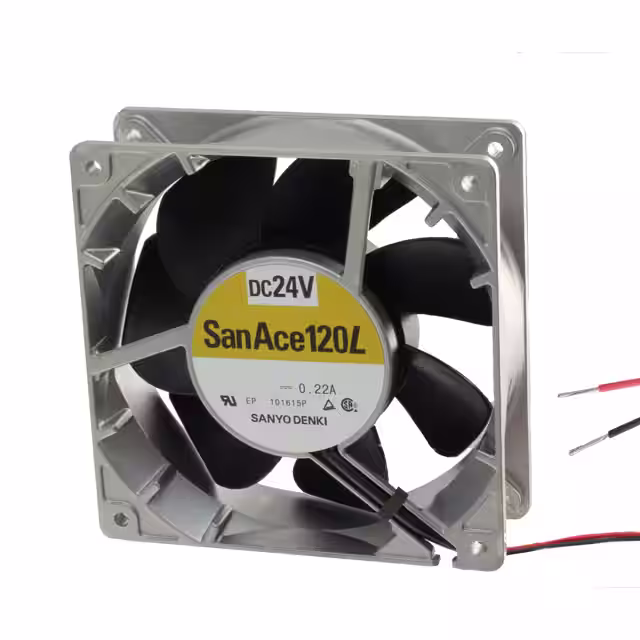

9GL1224H102FAN AXIAL 119X38MM 24VDC WIRE Sanyo Denki America Inc. |
3,120 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9WP0624G4D01FAN AXIAL 60X25MM 24VDC WIRE Sanyo Denki America Inc. |
3,338 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GL1212H1D01FAN AXIAL 119X38MM 12VDC WIRE Sanyo Denki America Inc. |
2,390 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1224G1D01FAN AXIAL 119X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,037 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1248H101FAN AXIAL 119X38MM 48VDC WIRE Sanyo Denki America Inc. |
1,135 |
|
Datasheet |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9WP0824S4D01FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
2,307 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WP0824S401FAN AXIAL 80X25MM 24VDC WIRE Sanyo Denki America Inc. |
4,850 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9BMB24H201FAN BLOWER 97.1X33MM 24VDC WIRE Sanyo Denki America Inc. |
3,552 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
