DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0812P1H61FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
241 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|

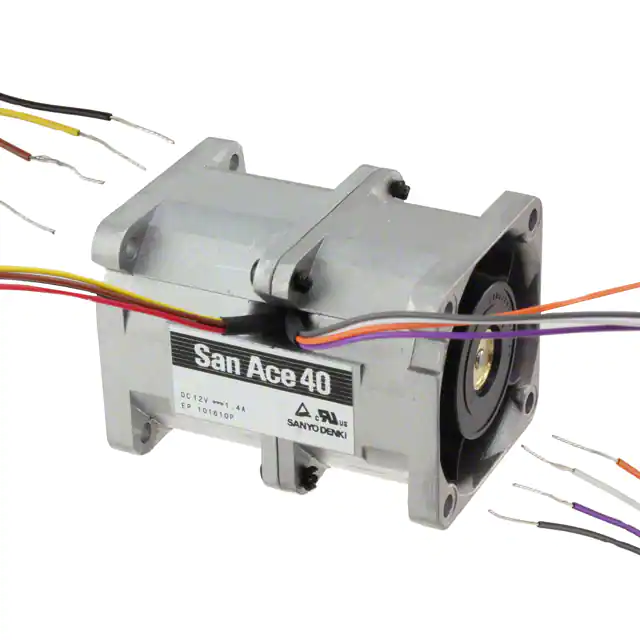

9CRE0412P5J03FAN AXIAL DUAL 40X56MM 12VDC Sanyo Denki America Inc. |
231 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.8 W | 15800 Front, 12200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.243 lb (110.22 g) |
|
|
9GV0848P1G03FAN AXIAL 80X38MM 48VDC WIRE Sanyo Denki America Inc. |
1,785 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 40.32 W | 10200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|

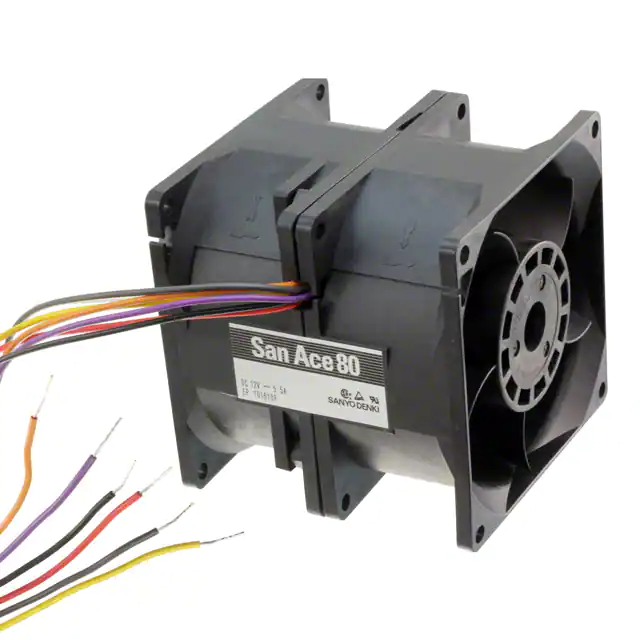

9CRA0812P8G001FAN AXIAL DUAL 80X80MM 12VDC Sanyo Denki America Inc. |
799 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.993 lb (450.42 g) |
|
|
9GV0812P1F03FAN AXIAL 80X38MM 12VDC WIRE Sanyo Denki America Inc. |
156 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 108.0 CFM (3.02m³/min) | 1.210 in H2O (301.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
9G1224E101FAN AXIAL 119X38MM 24VDC WIRE Sanyo Denki America Inc. |
1,090 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 8.16 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|

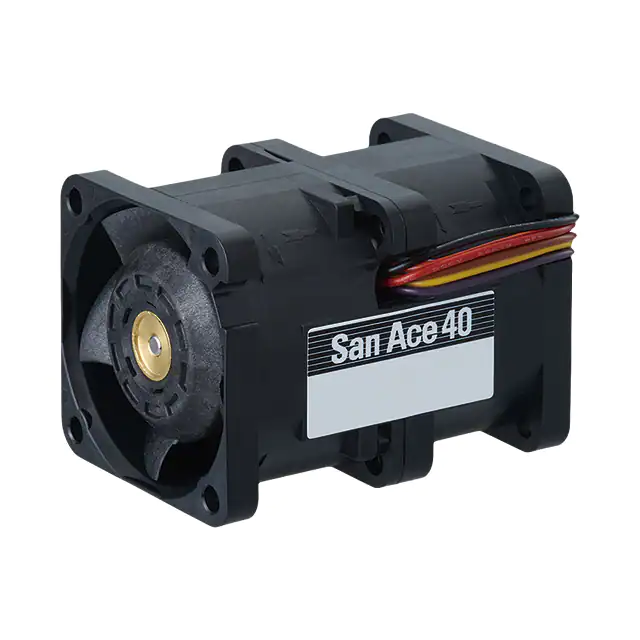

9CRH0412P5J001FAN AXIAL DUAL 40X56MM 12VDC Sanyo Denki America Inc. |
102 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.9 CFM (0.921m³/min) | 6.830 in H2O (1701.2 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 30.24 W | 29500 Front, 25500 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.243 lb (110.22 g) |
|
9BMB12P2F01FAN BLOWER 97.1X33MM 12VDC WIRE Sanyo Denki America Inc. |
291 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 36.7 CFM (1.03m³/min) | 1.647 in H2O (410.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|

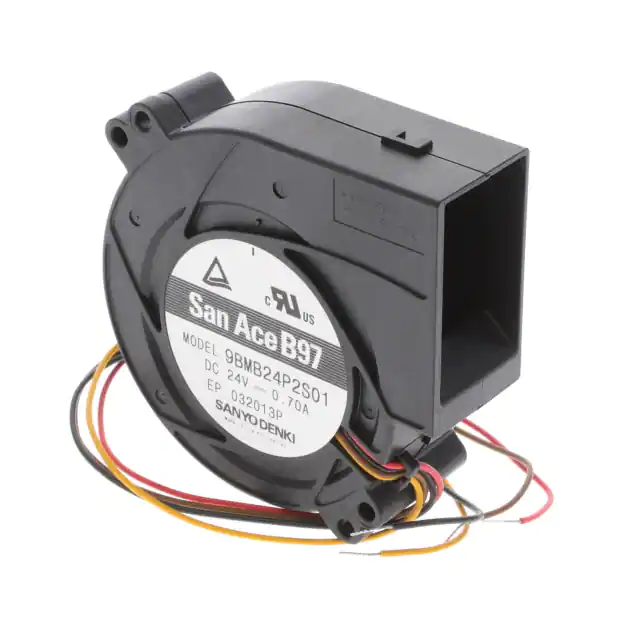

9BMB24P2S01FAN BLOWER 97.1X33MM 24VDC WIRE Sanyo Denki America Inc. |
179 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 16.8 W | 5250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|

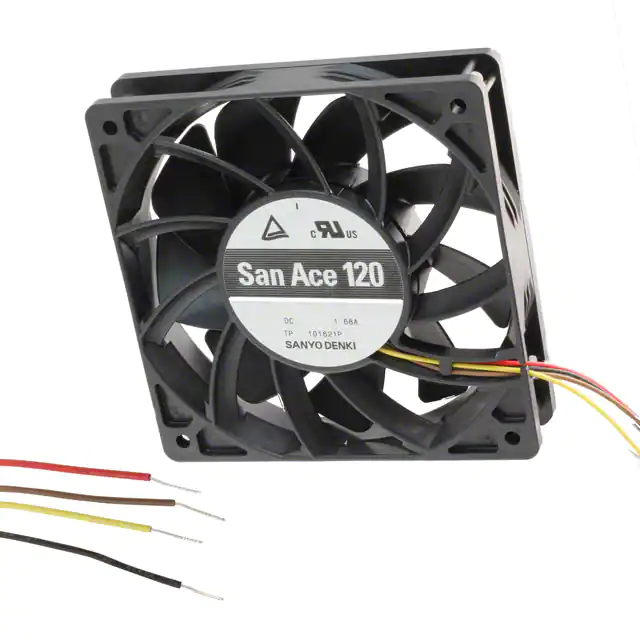

9GV1212P4G01FAN AXIAL 119X25.4MM 12VDC WIRE Sanyo Denki America Inc. |
3,275 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
