DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

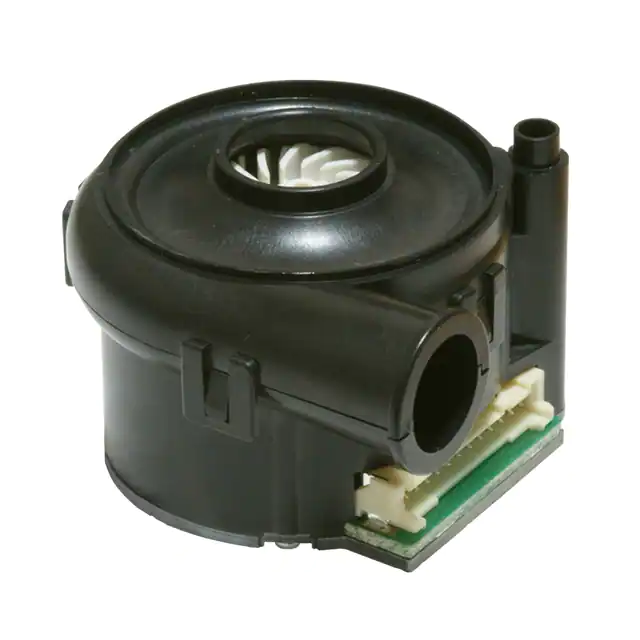

TF037C-2000-FFAN BLOWER 54X37.3MM AERO 24VDC Nidec Components Corporation |
4,699 |
|
Datasheet |
TF037C | Tray | Active | 24VDC | Rectangular/Rounded - 54mm L x 50.5mm H | 37.30mm | 3.5 CFM (0.098m³/min) | 16.060 in H2O (4000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 67.0dB(A) | 29 W | 40000 RPM | 12 Position Rectangular Connector | - | 32 ~ 122°F (0 ~ 50°C) | - | 0.198 lb (89.81 g) |
|

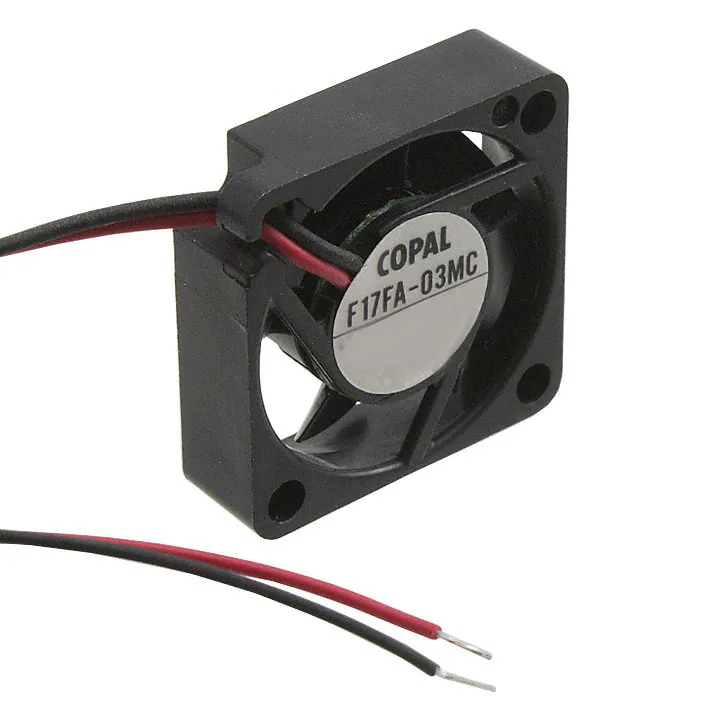

F17FA-03MCFAN AXIAL 17X5MM 3.3VDC WIRE Nidec Components Corporation |
3,215 |
|
Datasheet |
F17FA | Tray | Active | 3.3VDC | Square - 17mm L x 17mm H | 5.00mm | 0.353 CFM (0.010m³/min) | 0.024 in H2O (6.0 Pa) | Sleeve | Tubeaxial | - | 5.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | 32 ~ 140°F (0 ~ 60°C) | - | - |
|
F251R-05LCFAN AXIAL 25X10MM 5VDC WIRE Nidec Components Corporation |
3,693 |
|
Datasheet |
F251R | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 15.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-12LCFAN AXIAL 25X10MM 12VDC WIRE Nidec Components Corporation |
2,611 |
|
Datasheet |
F251R | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | - | 15.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
F412R-05LBFAN AXIAL 41X12.2MM 5VDC WIRE Nidec Components Corporation |
1,957 |
|
Datasheet |
F412R | Bulk | Active | 5VDC | Square - 41mm L x 41mm H | 12.20mm | 3.9 CFM (0.109m³/min) | 0.059 in H2O (14.7 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 16.0dB(A) | 400 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
F412R-12LBFAN AXIAL 41X12.2MM 12VDC WIRE Nidec Components Corporation |
2,380 |
|
Datasheet |
F412R | Bulk | Active | 12VDC | Square - 41mm L x 41mm H | 12.20mm | 3.9 CFM (0.109m³/min) | 0.059 in H2O (14.7 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 16.0dB(A) | 480 mW | 4200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
F614T-05MCFAN AXIAL 62X14.5MM 5VDC WIRE Nidec Components Corporation |
2,694 |
|
Datasheet |
F614T | Bulk | Active | 5VDC | Square - 62mm L x 62mm H | 14.50mm | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | - | 2900 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.088 lb (39.92 g) |
|
|
F614T-12MCFAN AXIAL 62X14.5MM 12VDC WIRE Nidec Components Corporation |
2,019 |
|
Datasheet |
F614T | Bulk | Active | 12VDC | Square - 62mm L x 62mm H | 14.50mm | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 23.0dB(A) | - | 2900 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.088 lb (39.92 g) |
|
F251R-05LBFAN AXIAL 25X10MM 5VDC WIRE Nidec Components Corporation |
1,415 |
|
Datasheet |
F251R | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 15.0dB(A) | 300 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-05LLBFAN AXIAL 25X10MM 5VDC WIRE Nidec Components Corporation |
3,659 |
|
Datasheet |
F251R | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.080 in H2O (19.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 11.0dB(A) | 250 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
